Skynest
F6393031 Anthracite

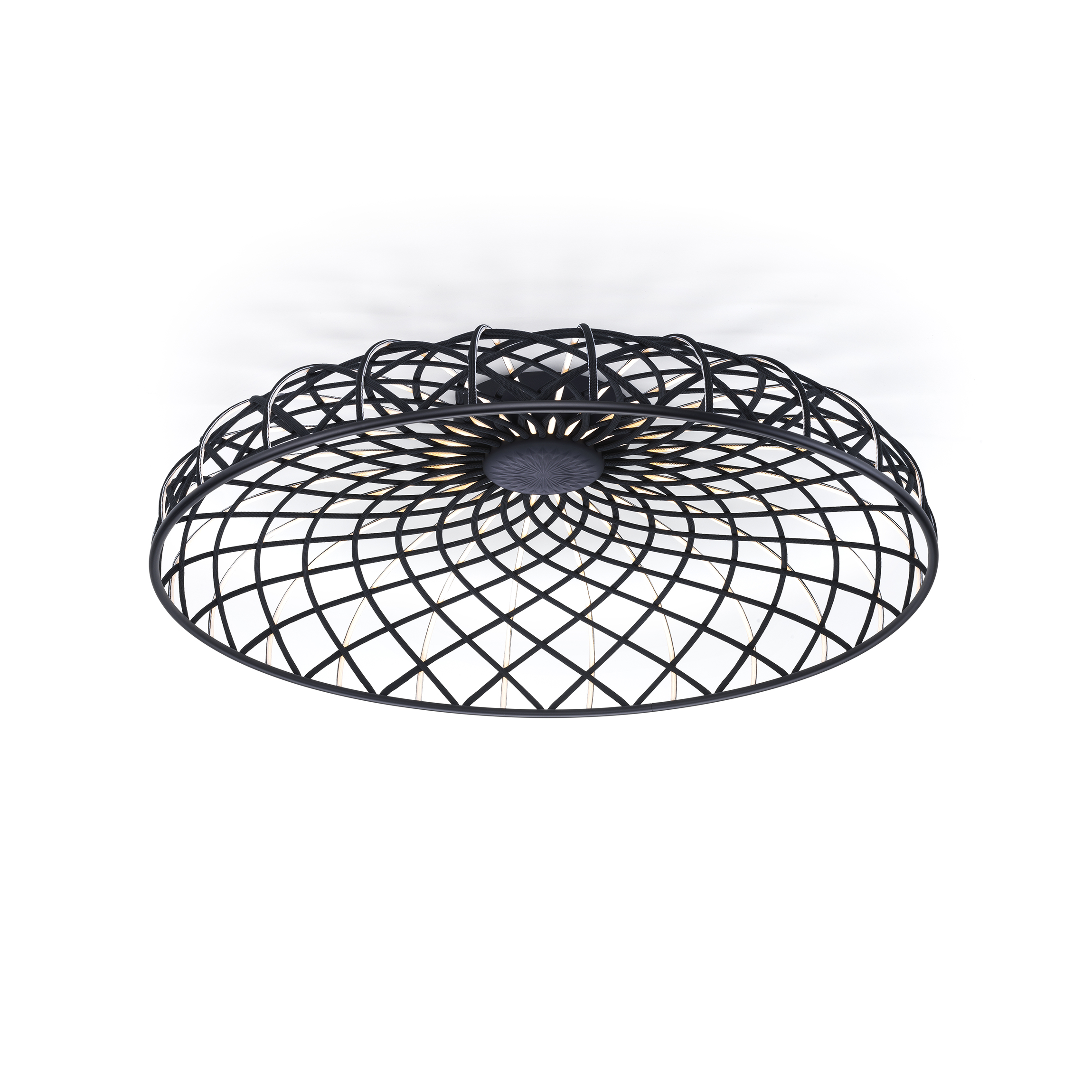

Skynest C

Diffuse lighting hanging appliance. The dome is a combination of luminous and dark elements arranged into a network and formed of core structures covered with a thin interwoven colourful tubular mesh made from recycled and recyclable fabric produced from polyester. Every single luminous element is powered by special micro-connectors located at the top of the dome and is covered with a two-tone mesh, while the side facing the inside of the dome is always white in order to allow for optimal light emission from the LED module. The appliance is fitted with a built-in balancing system at the top of the dome which helps adjust its balance, making it perfectly stable. The bottom of the dome is completed by an aluminium ring that keeps the dome’s entire network structure in place through a simple snap-fit system. The product is assembled with absolutely no glue so it can be fully separated to be recycled in the future and in case of any repairs or replacements. Available lamp finishes: Blue Tourmaline, Almond, Anthracite or Brick Red.Fitted with built-in electronics that allow for the use of different dimmer systems: 0-10V / 1-10V / DALI / PUSH."

57W - 1325lm - 2700-2900K - CRI> 90

Technische Zeichnung
Skynest-ceiling-marcel_wanders-flos-spech-tech-300x263
Haupteigenschaften
EAN
8059607058022
Halterung
Decke
Umgebung
Trockener Innenbereich
Lichtquellentyp
LED
Inklusive Leuchtmittel
Yes
LED-Typ
LED Modul
Quellenleistung (W)
57
Systemleistung (W)
57
System-Lichtstrom (lm)
1325
Schematic light drawing
F6393031WSKYNEST-C-NRO_57W-LED
Fotometrisch
Lichtverteilung
Symmetrisch
Farbtemperatur (K)
2700-2900
CRI>
90
Elektrisch
Isolationsklasse
I
Frequenz (Hz)
50/60
Hauptspannung (VAC)
100-240
Einspeisung
Integriert
Dimmbar
Yes
Dimmungsart
Integrierter Dimmer
Dimmer-Schnittstelle
Integrierter Dimmer
Physisch
Farbe
Anthracite
Länge (mm)
904
Canopy Farbe
Black
Canopy Maße (mm)
216
Canopy height (mm)
58
Nettogewicht (kg)
4
Packstückhöhe (mm)
320
Packstückbreite (mm)
1000
Packstücklänge (mm)
1000
Packstückvolumen (m3)
0.32
IP
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
CCC
Risk 0
03 - Italy
Flammable Surface
20

Download

Technische Daten PDF
Mounting instructions

Photometrie Dateien

LDT / IES

Ökodesign und Energiekennzeichnung

Dieses Produkt enthält ein Leuchtmittel der Energieeffizienzklasse F

REPLACEABLE4 Lichtquelle (nur LED) kann durch den Endbenutzer ausgetauscht werden

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F6393003-skynest-c-flos-boom
01. Assembly Led Arm for Skynest Suspension Black
RF34720
02. Led dimmer kit
RF34197
03. Skynest Suspension Driver 100W 100-277V
RF33061
04. Rose for Skynest Ceiling Black
RF35174
