Kap 50

Designed by FLOS Architectural

Minimal recessed downlights with main voltage source, Kap is available in different colors and finishes.

Download Documentation

Product highlight

Functional core

Minimal recessed downlights with main voltage source, Kap is available in different colors and finishes.

Discover the Story


Luminaire

(36)

Orientation

Optical Type

Lumen Output (lm)

CCT (K)

Certifications

Colour

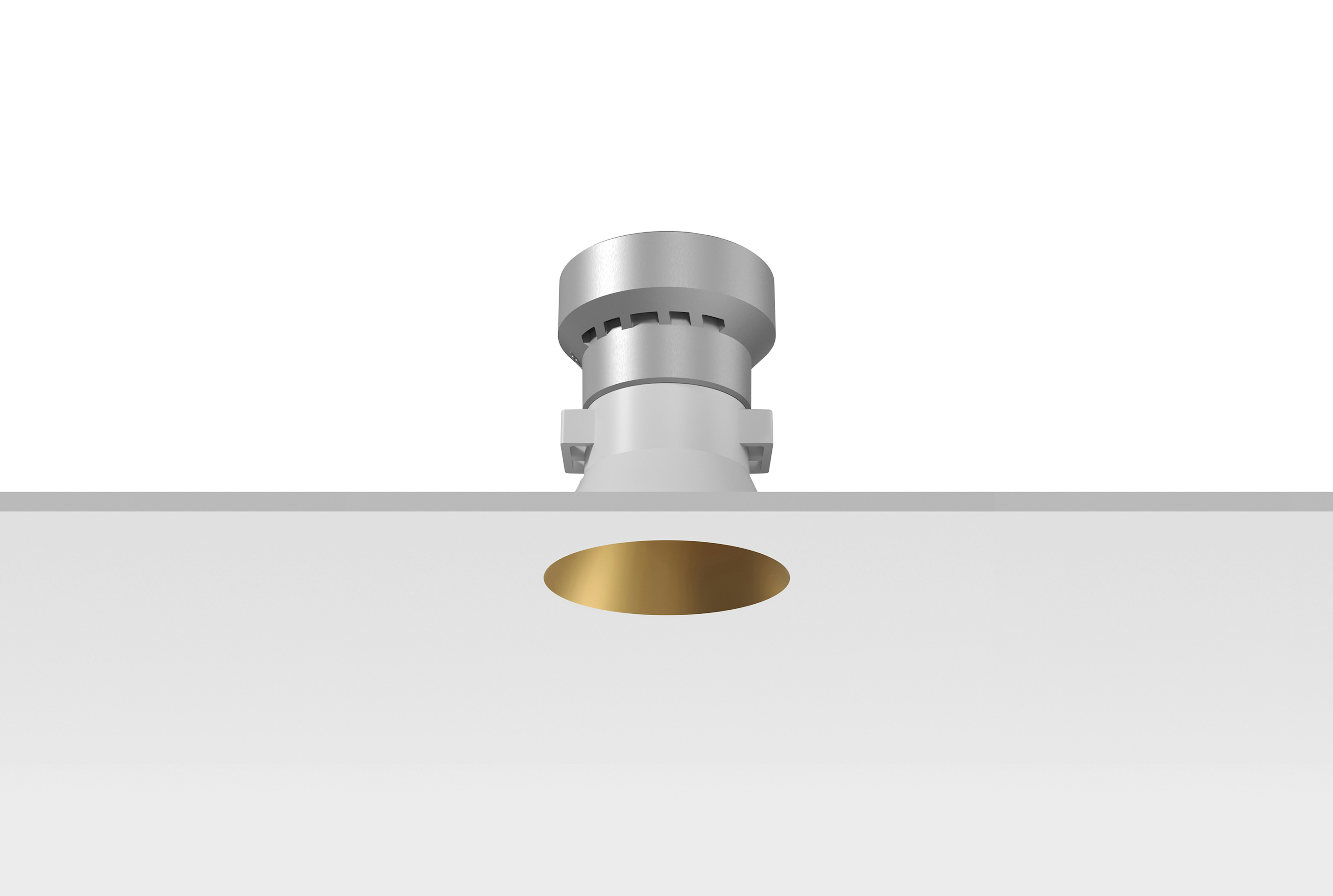

Kap 50 Fixed

18 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7307.GL	Kap Ø 50 Fixed Optic Flood	7.3	511	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7307.B1	Kap Ø 50 Fixed Optic Flood	7.3	532	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7307.74	Kap Ø 50 Fixed Optic Flood	7.3	447	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7306.GL	Kap Ø 50 Fixed Optic Medium	7.3	485	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7306.B1	Kap Ø 50 Fixed Optic Medium	7.3	524	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7306.74	Kap Ø 50 Fixed Optic Medium	7.3	476	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7305.GL	Kap Ø 50 Fixed Optic Spot	7.3	595	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7305.B1	Kap Ø 50 Fixed Optic Spot	7.3	583	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7305.74	Kap Ø 50 Fixed Optic Spot	7.3	567	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7302.GL	Kap Ø 50 Fixed Optic Flood	7.3	476	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7302.B1	Kap Ø 50 Fixed Optic Flood	7.3	496	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7302.74	Kap Ø 50 Fixed Optic Flood	7.3	416	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7301.GL	Kap Ø 50 Fixed Optic Medium	7.3	452	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7301.B1	Kap Ø 50 Fixed Optic Medium	7.3	488	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7301.74	Kap Ø 50 Fixed Optic Medium	7.3	443	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7300.GL	Kap Ø 50 Fixed Optic Spot	7.3	554	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7300.B1	Kap Ø 50 Fixed Optic Spot	7.3	543	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7300.74	Kap Ø 50 Fixed Optic Spot	7.3	528	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed

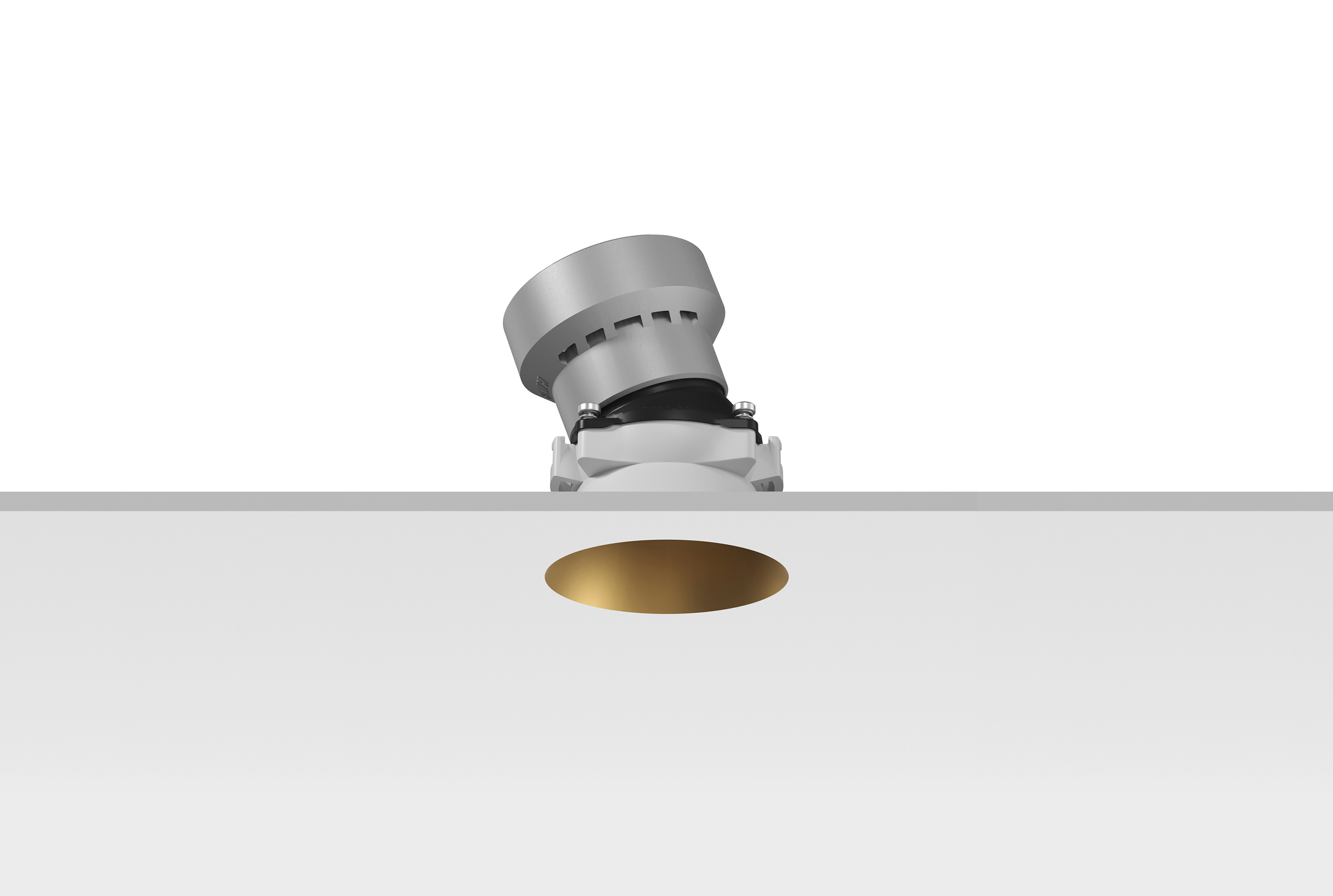

Kap 50 Adjustable

18 items

Collapse

Code	Name	Power (W)	Lumen Output (lm)	CCT (K)	CRI>	Beam angle (º)	Dimming Type	Mounting
05.7317.GL	Kap Ø 50 Adjustable Optic Flood	7.3	511	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7317.B1	Kap Ø 50 Adjustable Optic Flood	7.3	532	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7317.74	Kap Ø 50 Adjustable Optic Flood	7.3	447	3000	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7316.GL	Kap Ø 50 Adjustable Optic Medium	7.3	485	3000	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7316.B1	Kap Ø 50 Adjustable Optic Medium	7.3	524	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7316.74	Kap Ø 50 Adjustable Optic Medium	7.3	476	3000	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7315.GL	Kap Ø 50 Adjustable Optic Spot	7.3	595	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7315.B1	Kap Ø 50 Adjustable Optic Spot	7.3	583	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7315.74	Kap Ø 50 Adjustable Optic Spot	7.3	567	3000	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7312.GL	Kap Ø 50 Adjustable Optic Flood	7.3	476	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7312.B1	Kap Ø 50 Adjustable Optic Flood	7.3	496	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7312.74	Kap Ø 50 Adjustable Optic Flood	7.3	416	2700	90	49	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7311.GL	Kap Ø 50 Adjustable Optic Medium	7.3	452	2700	90	26	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7311.B1	Kap Ø 50 Adjustable Optic Medium	7.3	488	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7311.74	Kap Ø 50 Adjustable Optic Medium	7.3	443	2700	90	24	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7310.GL	Kap Ø 50 Adjustable Optic Spot	7.3	554	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7310.B1	Kap Ø 50 Adjustable Optic Spot	7.3	543	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
05.7310.74	Kap Ø 50 Adjustable Optic Spot	7.3	528	2700	90	15	Non Dimmable, Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable 1-10V, Dimmable DALI 1, Mains Cut Dimming	Ceiling recessed
