Related to
2097
A1351059 Brass2097/18 (frosted bulbs)
Designed by Gino Sarfatti, 2019

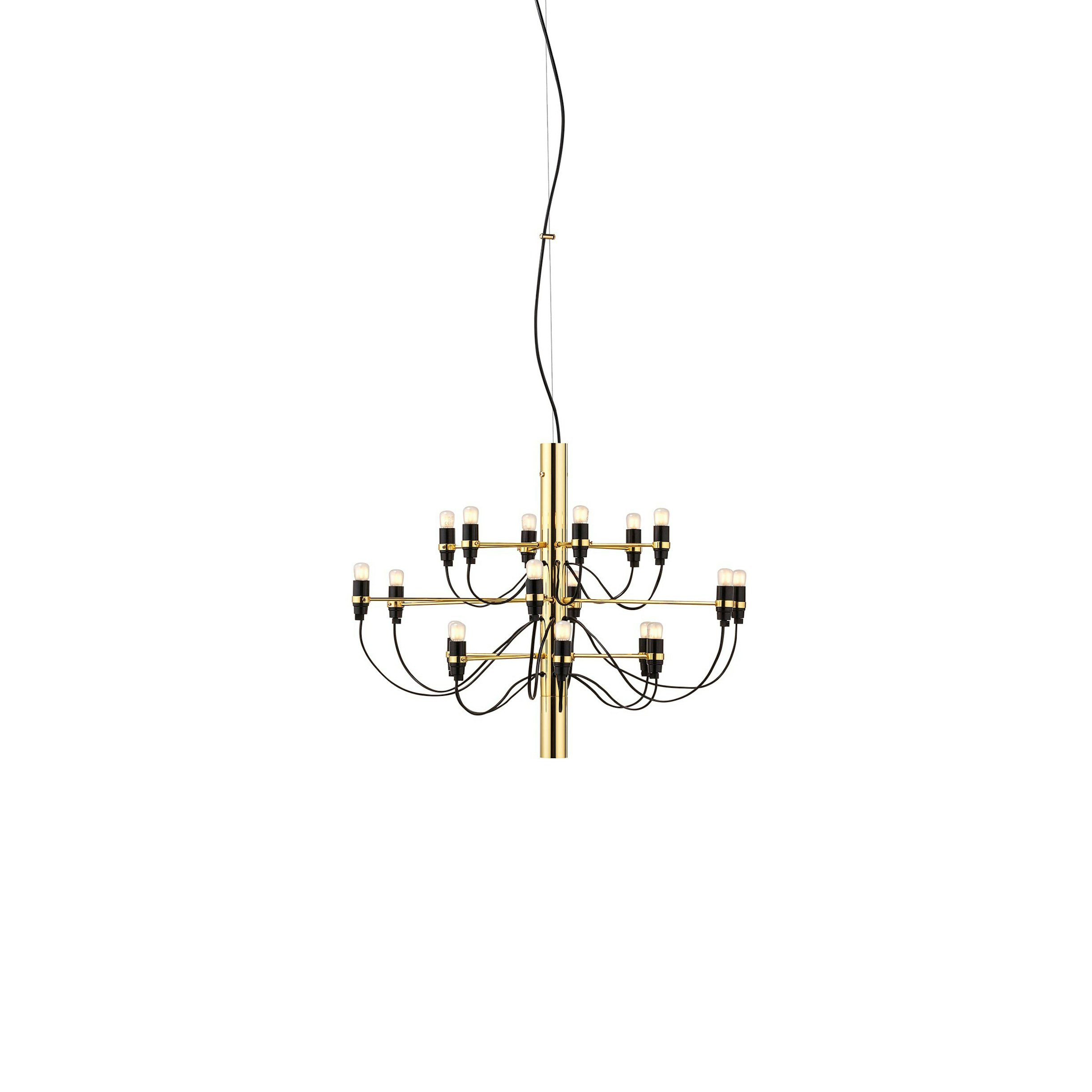

Suspension lamp providing diffused light. Steel central structure with brass arms, both available either chromium-plated, black or golded. Steel ceiling fitting and rose.
LED retrofit - 18 x 3W
Technical Drawing
Main specifications
EAN
8059607000380
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
E14
Ilcos
IBS/F
Number of lamps
18
Power (W)
3
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Brass
Length (mm)
670
Cord colour
Black
Cord length (mm)
2800
Canopy colour
Black
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
3.27
Package volume (m3)
0.02
IP internal
20
Bulbs
Spare Parts
01.
2097-18-30-50 black ceiling rose
RF1500331
02.
Brass short arm (200mm)
RL7060459
03.
2097/18 Brass Medium Arm (310mm)
RF33865
04.
2097 E14 lamp holder
RL7050100
05.
2097 Brass screw kit
RL7050759
06.
Brass lower cap
RL7050959
