2097
A1502057Chrome

2097/50 (clear bulbs)

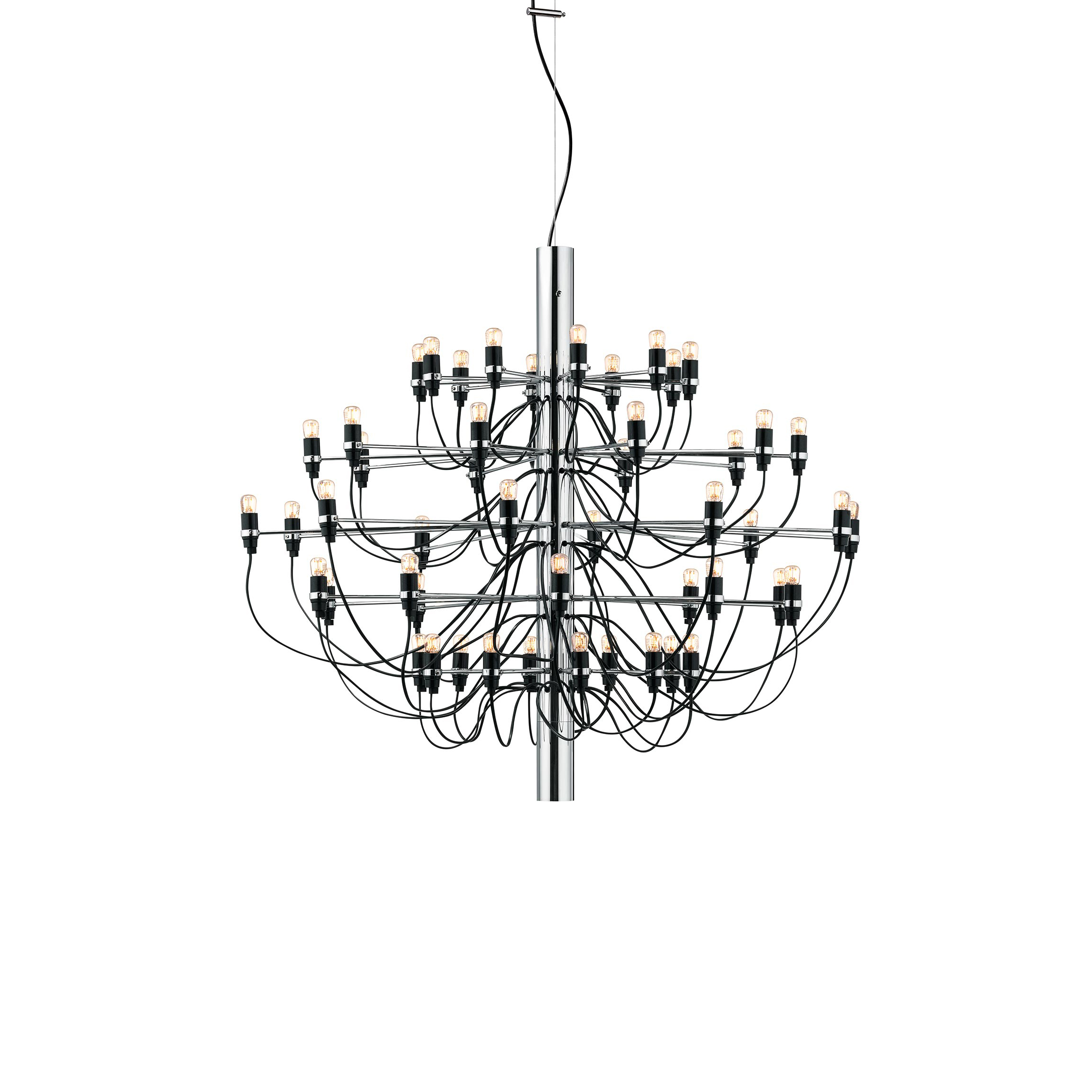

Suspension lamp emitting diffused light. Central steel structure with brass arms, available chrome-plated, matt black, matt white or brass, each holding an exposed bulb. Exposed wiring. Steel ceiling fitting and rose.

LED retrofit - 50 x 2W

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-2097-50
Main specifications
EAN
8059607000496
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
E14
Ilcos
IBS/F
Number of lamps
50
Power (W)
2
Schematic light drawing
A15000XXW2097-50_50X15W-HL
Photometric
Lighting type
Total
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Chrome
Length (mm)
1000
Cord colour
Black
Cord length (mm)
2800
Canopy colour
Black
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
9.4
Package volume (m3)
0.04
IP internal
20
CE
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

Bulbs

Thumbnail
x50
NOT INCLUDEDLED Frosted Lamp 2,7W E14 150lm 2700K Dimmable T26 DimmableRF25316
Thumbnail
x50
NOT INCLUDEDLED Clear Lamp 2W E14 220-240 2200K T26 DimmableRF28422
Thumbnail
x1
NOT INCLUDEDLED Frosted Mini Lamp E14 2,7W 2700K Dimmable (Set 20pcs)RF28889
Thumbnail
x1
INCLUDEDLED Clear Mini Lamp E14 2W 2200K Dimmable (Set 20pcs)RF28890
Thumbnail
x1
NOT INCLUDEDLED Frosted Mini Lamp E14 2,7W 2700K Dimmable (set 32pcs)RF28987
Thumbnail
x1
INCLUDEDLED Clear Mini Lamp E14 2W 2200K Dimmable (Set 32pcs)RF28988

Spare Parts

A1502057-2097-50-flos-boom
01. 2097-18-30-50 black ceiling rose
RF1500331

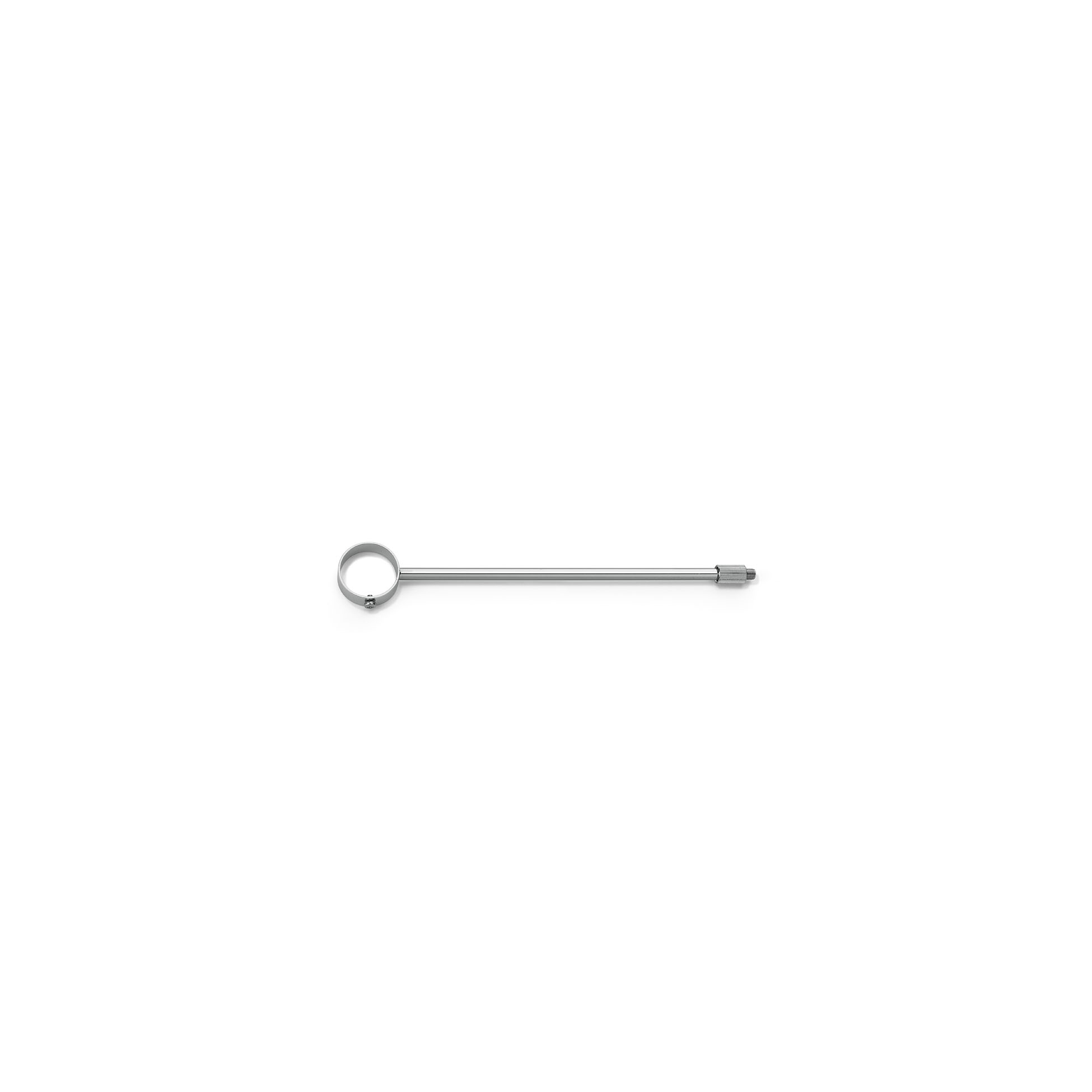

02. Chrome short arm (200mm)
RL7060457
03. 2097/50 Chrome medium arm (375mm)
RL7060557

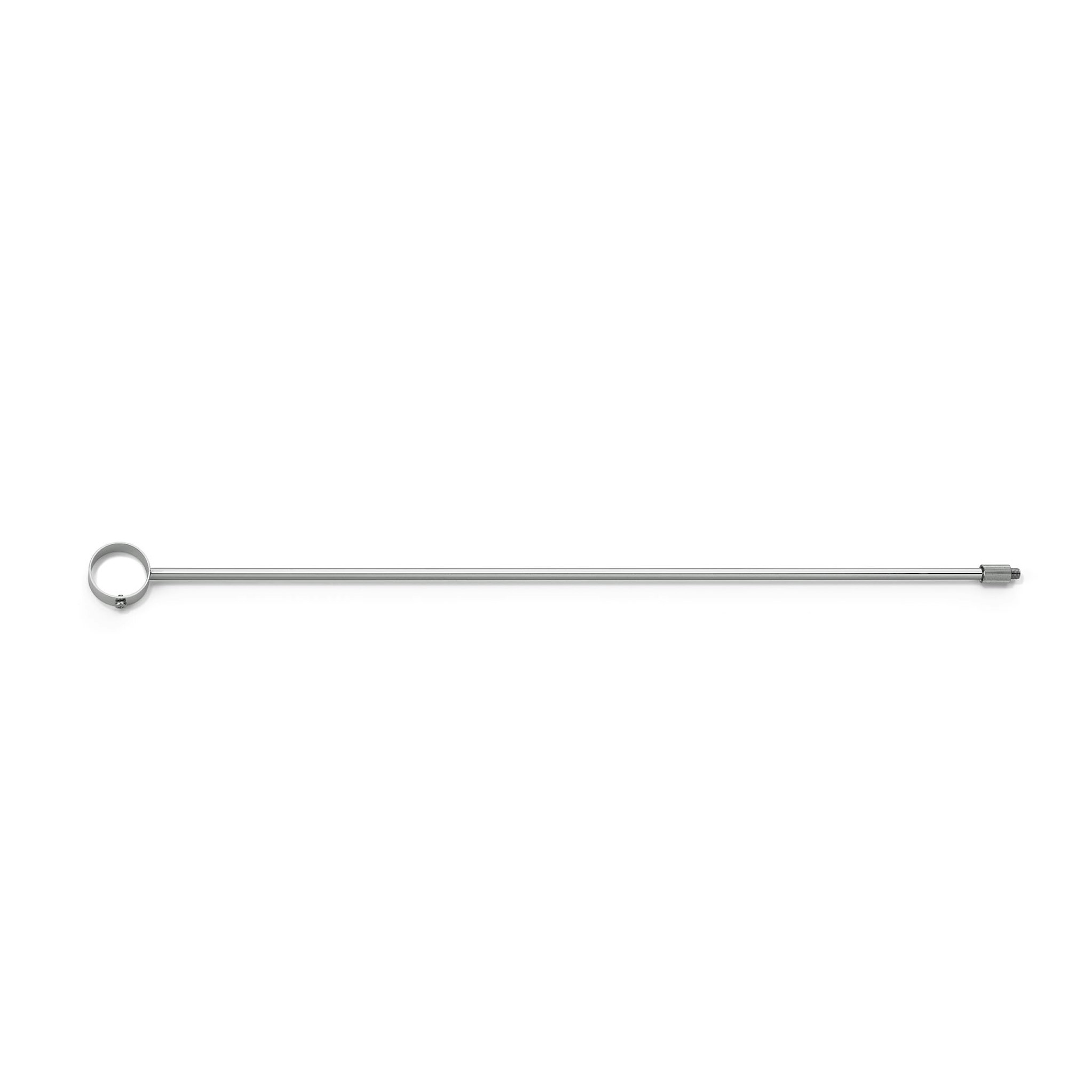

04. 2097/50 Chrome long arm (475mm
RL7060657
05. 2097 E14 lamp holder
RL7050100
06. Chrome screw kit
RL7050757
07. 2097/50 Chrome lower cap
RL7060157
x1
2097-18-30-50 black ceiling roseRF1500331
Thumbnail
x1
Chrome short arm (200mm)RL7060457
Thumbnail
x1
2097/50 Chrome medium arm (375mm)RL7060557
Thumbnail
x1
2097/50 Chrome long arm (475mmRL7060657
x1
2097 E14 lamp holderRL7050100
Thumbnail
x1
Chrome screw kitRL7050757
Thumbnail
x1
2097/50 Chrome lower capRL7060157
