265

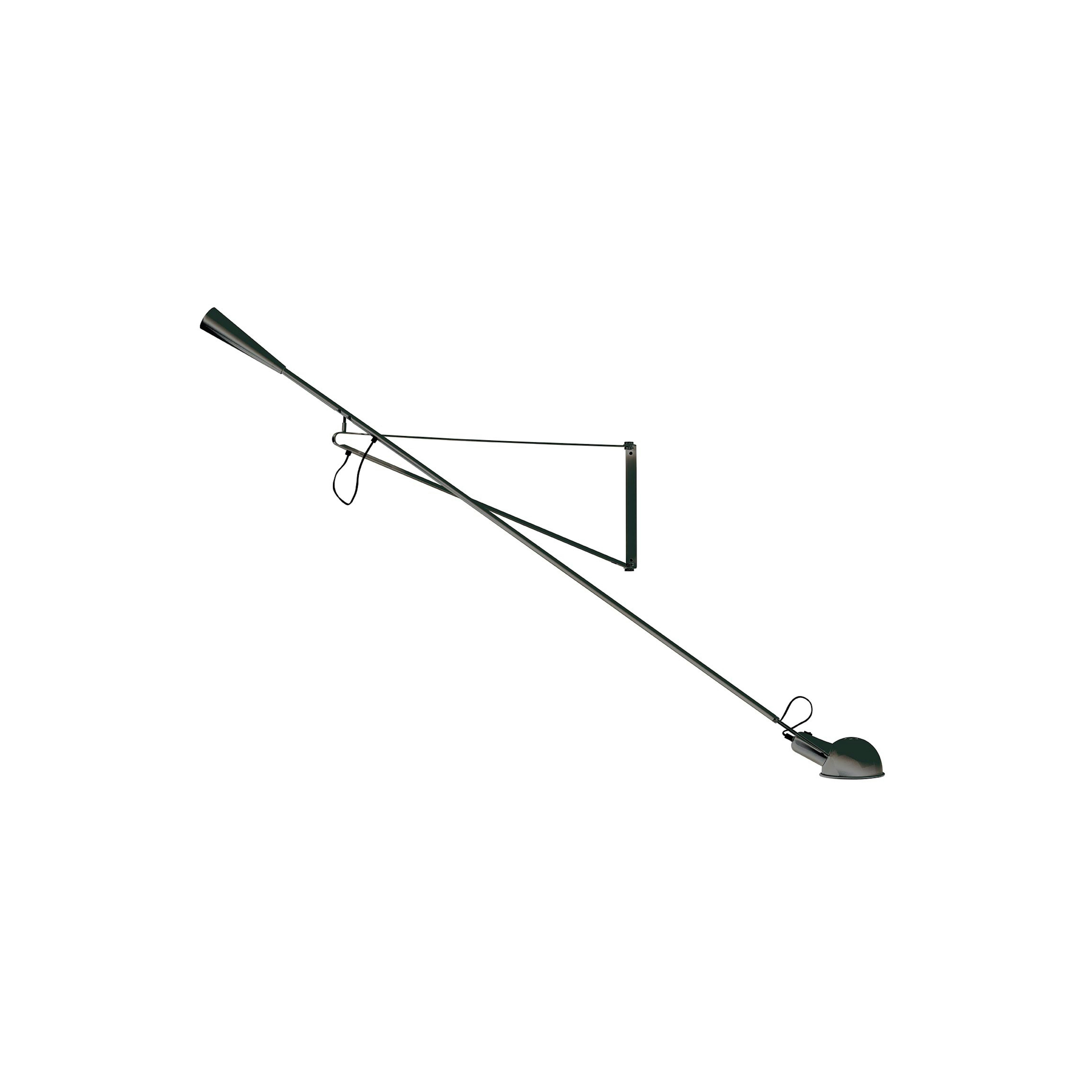

A0300030 Black265
Designed by Paolo Rizzatto, 1973
Wall lamp providing direct light. Painted steel adjustable arm and reflector. Chrome-plated brass reflector support. Cast iron tapered counterweight. Painted steel wall fixture.
Halogen - 75W
Technical Drawing
Main specifications
EAN
8059607012277
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGSA
Number of lamps
1
Power (W)
75
Photometric
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type C
Batteries inside
No
Physical
Colour
Black
Length (mm)
2450
Cord length (mm)
2030
Net weight (kg)
5.7
Package height (mm)
2110
Package width (mm)
150
Package length (mm)
390
Package volume (m3)
0.12
IP internal
20
Bulbs
Spare Parts
01.
265/265 Small Screw set for wall attachment
RA0300200
02.
265 Black counterweight
RF01856
03.
265/265 Small Black lamp holder with reflector support and electrical cable assembly
RF01396
04.
Black reflector
RF00785
05.
265 Black wall attachment
RF02566
06.

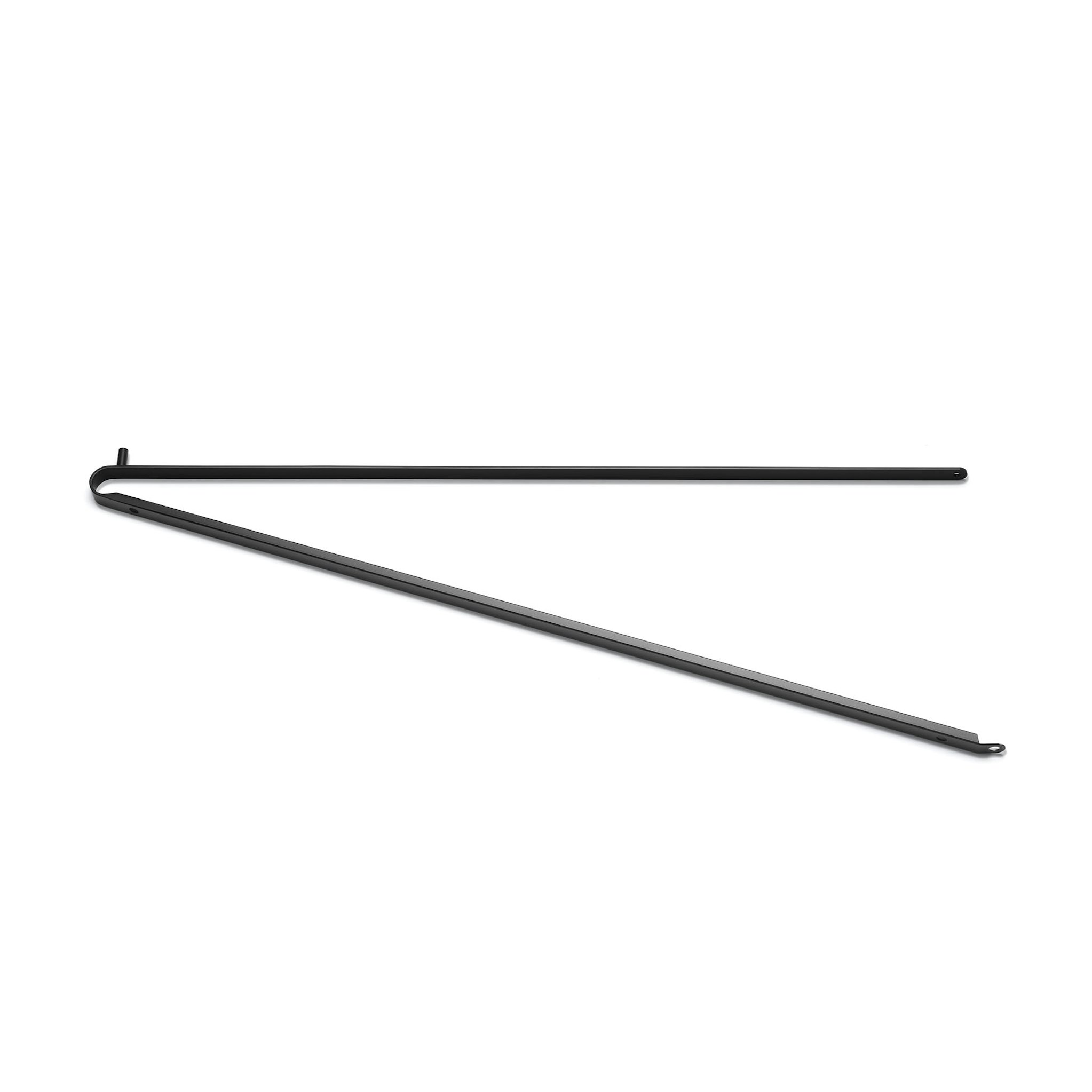

265 Black triangle bracket support
RF02564
07.
265/265 Small Screws bag group stm3x 3 ce c.10 p
RF11719
