Related to
265
A0320099 Chromatica265 Small
Designed by Paolo Rizzatto, 1973

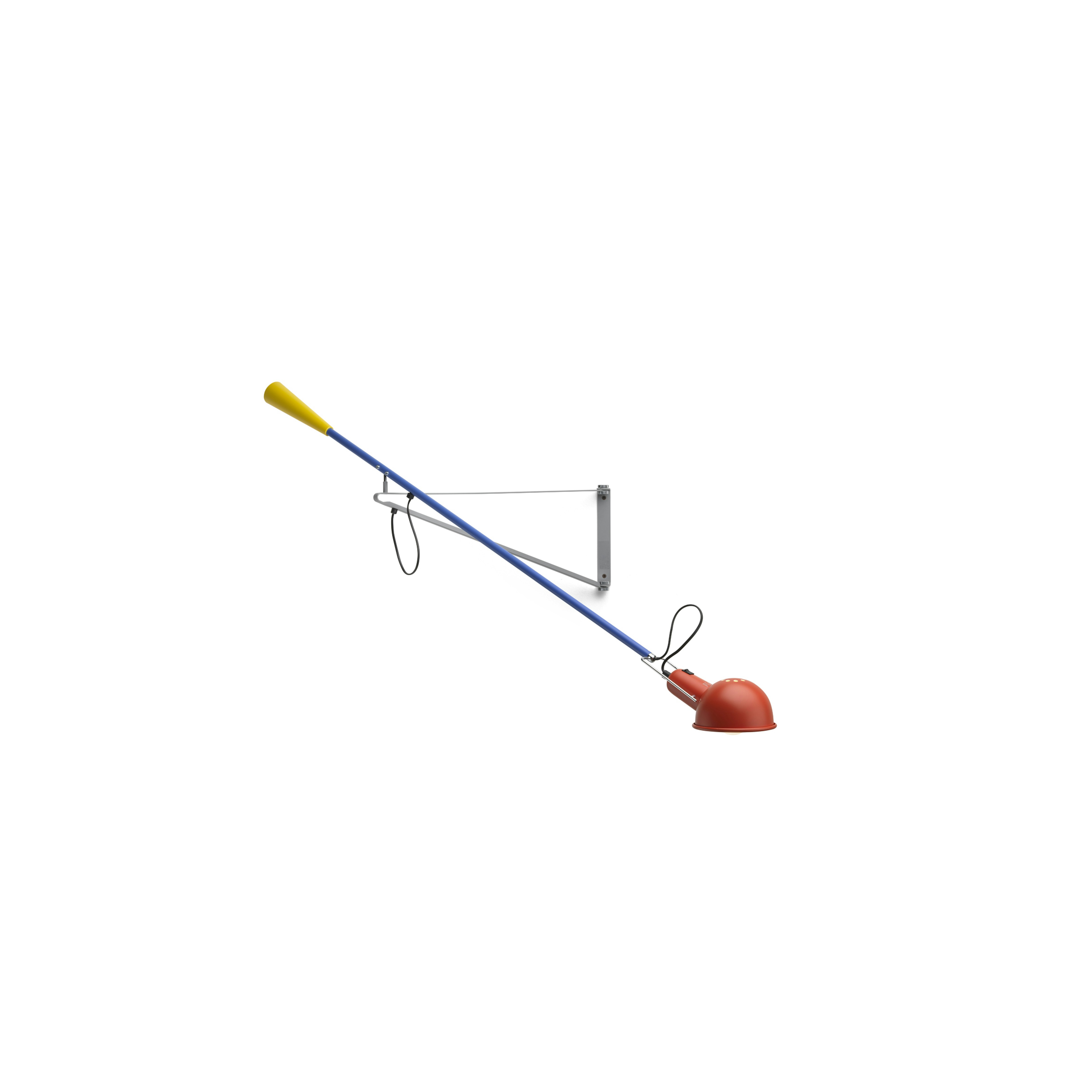

Wall lamp providing direct light. Painted steel adjustable arm and reflector. Chrome-plated brass reflector support. Cast iron tapered counterweight. Painted steel wall fixture.
Halogen - 75W
Technical Drawing
Main specifications
EAN
8059607047309
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGSA
Number of lamps
1
Power (W)
75
Photometric
Light distribution
Asymmetric
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type C
Batteries inside
No
Physical
Colour
Chromatica
Length (mm)
1680
Cord length (mm)
2030
Net weight (kg)
5
Package height (mm)
1725
Package width (mm)
150
Package length (mm)
340
Package volume (m3)
0.09
IP internal
20
Bulbs
Spare Parts
01.
265/265 Small Screw set for wall attachment
RA0300200
02.
265 Small Counterweight Grey
RF32750
03.
265 / 265 Small , Matt Red Lamp Holder with Reflector Support Assembly
RF31190
04.
265 / 265 Small, Matt Red Reflector
RF31189
05.
265 Small Wall Attachment Grey
RF32752
06.
265 Small Bracket Support Grey
RF32751
07.
265/265 Small Screws bag group stm3x 3 ce c.10 p
RF11719
