A-Rise

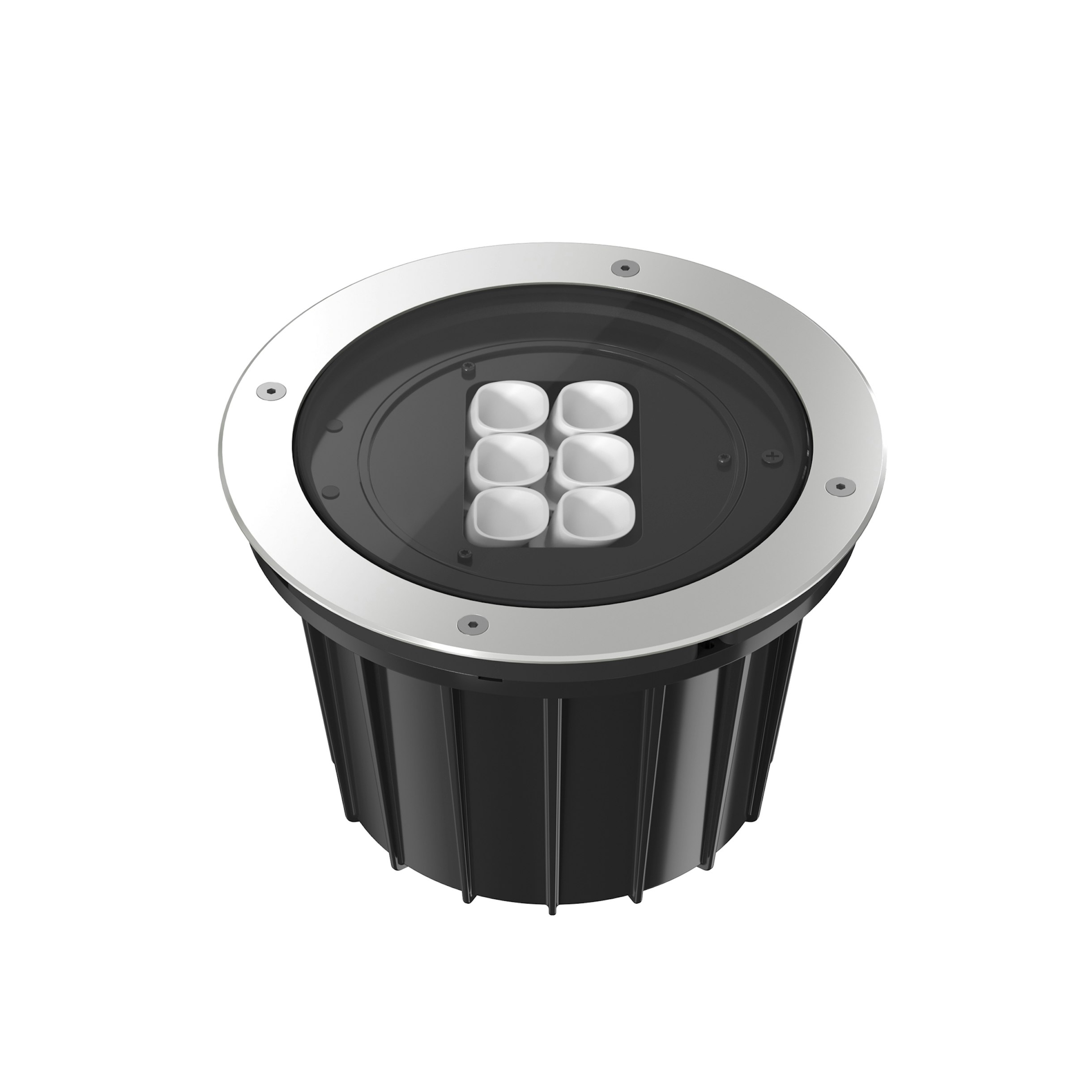

FA53403056-300 Matte Stainless SteelA-Rise 225 Wall Washer
Designed by FLOS Outdoor, 2012
LED light source included. Integrated 24V dc ON/OFF remote electric power supply. Adjustment on vertical axis: 15º max. Rotation on horizontal axis: 359º max. Remote power supply that must be placed in a junction box, equipped with a protruding, 400 mm cable with an M12 screw-on connector that guarantees the water tightness of the luminaire, and with a 250 mm cable for the connection to the power line. Extra clear transparent glass.
17W - 1521lm - 3000K - CRI> 80 - Beam° 52
Technical Drawing
Main specifications
EAN
8054793668369
Mounting
In-ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
17
System power (W)
21
Source flux (lm)
2070
Lumen Output (lm)
1521
Schematic light drawing
Photometric
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
52
Beam angle C90-270 (º)
67
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Dimmable DALI 1
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
Matte Stainless Steel
Orientation
Adjustable
Rotation (º)
359
Longitudinal tilting (°)
15
Net weight (kg)
3.12
Package height (mm)
210
Package width (mm)
290
Package length (mm)
255
Package volume (m3)
0.02
IP internal
67
IP external
66
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
