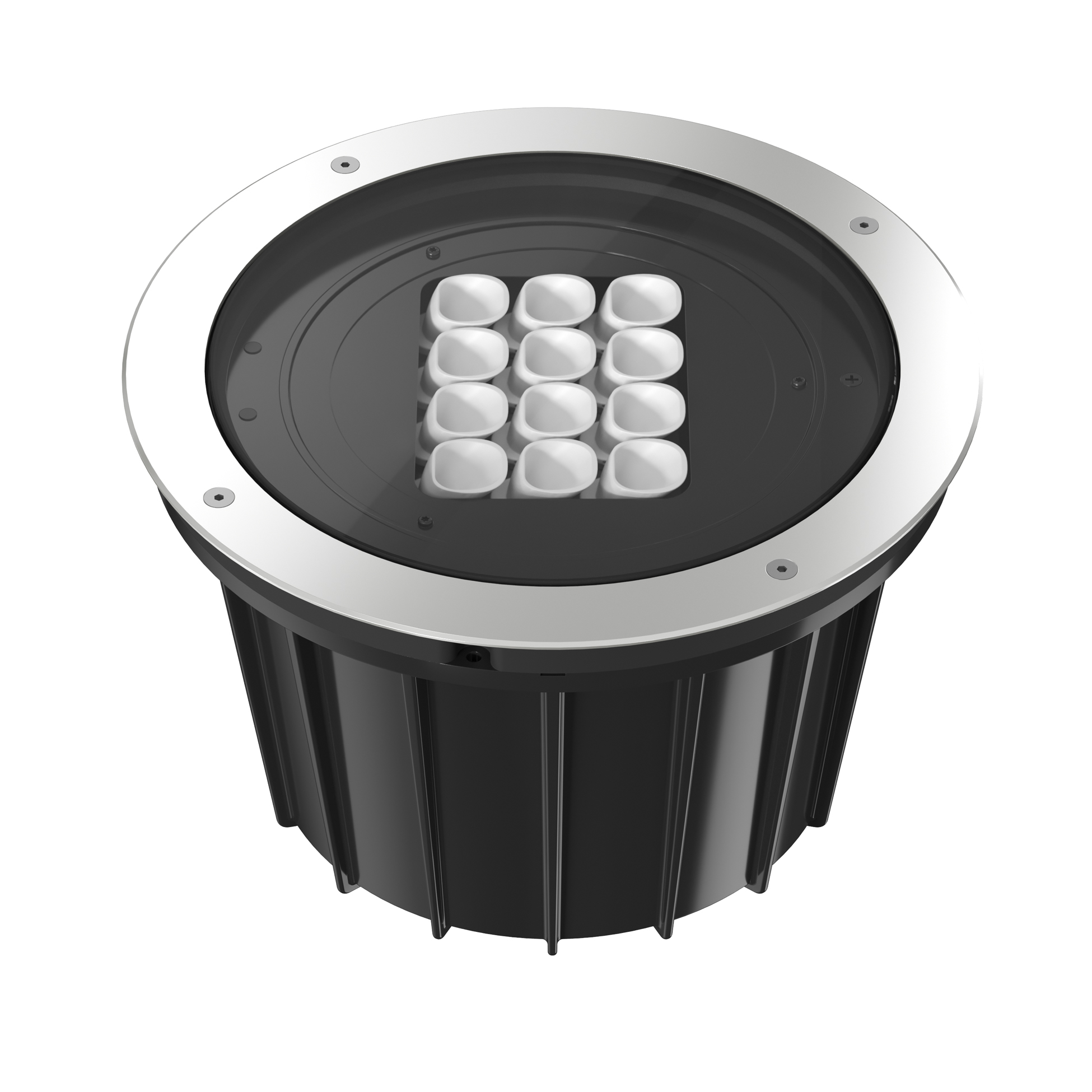

FA53406656-310 Matte Stainless SteelA-Rise 290 Wall Washer
Designed by FLOS Outdoor, 2012
LED light source included. Integrated 24V dc ON/OFF remote electric power supply. Adjustment on vertical axis: 15° max. Rotation on horizontal axis: 359° max. Remote power supply that must be placed in a junction box, equipped with a protruding, 400 mm cable with an M12 screw-on connector that guarantees the water tightness of the luminaire, and with a 250 mm cable for the connection to the power line. Extra clear transparent glass.
34W - 2840lm - 2700K - CRI> 80 - Beam° 52
Technical Drawing
Main specifications
EAN
8054793670188
Mounting
In-ground
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
34
System power (W)
39
Source flux (lm)
3864
Lumen Output (lm)
2840
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
52
Beam angle C90-270 (º)
67
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Dimmable 1-10V
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
Matte Stainless Steel
Orientation
Adjustable
Rotation (º)
359
Longitudinal tilting (°)
15
Net weight (kg)
5.77
Package height (mm)
230
Package width (mm)
365
Package length (mm)
305
Package volume (m3)
0.03
IP internal
67
IP external
66
Notes
'Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
