Aim

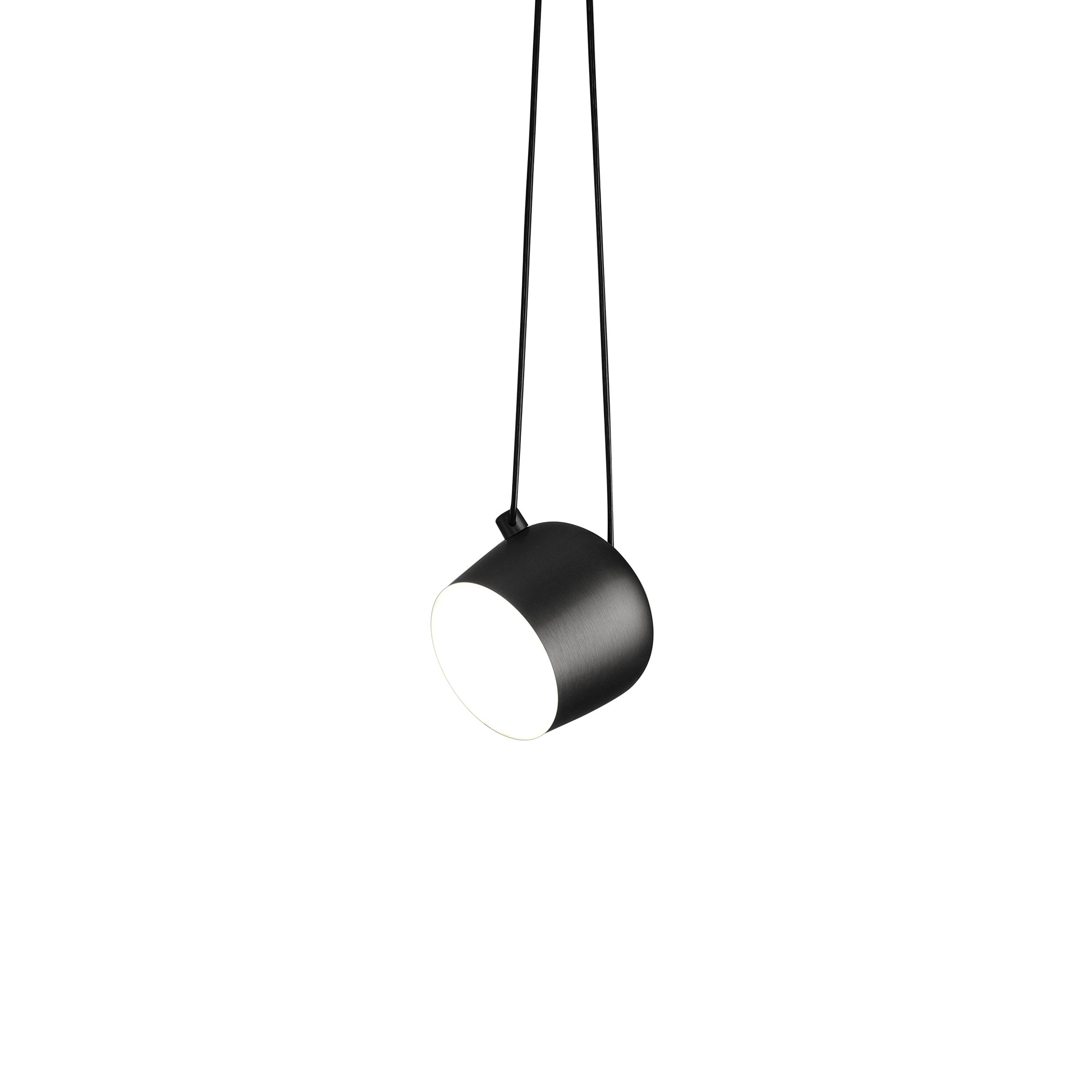

F0090030 BlackAim
Designed by Ronan & Erwan Bouroullec, 2013
Suspended light fitting. Body in varnished aluminium sheet, shade in photo-etched optical polycarbonate. Internal reflector in photo-etched ABS. Orientable body. Powered directly from mains. The LED can be dimmed with a «Triac for Led» dimmer approved by Flos.Flos does not respond in case of wrong electrical connection system installations. The cable has a useful length of 9 meters and thus the lamp can be suspended 3 meters from the ceiling. Multiple rose with capacity to connect up to 5 Aims also available.
16W - 895lm - 2700K
Also available in:
Technical Drawing
Main specifications
EAN
8059607013281
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
16
Lumen Output (lm)
895
Schematic light drawing
Photometric
Light distribution
Roto symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Black
Length (mm)
243
Cord colour
Black
Cord length (mm)
9000
Canopy colour
Black
Canopy length/diameter (mm)
80
Canopy height (mm)
23
Net weight (kg)
3.2
Package height (mm)
375
Package width (mm)
300
Package length (mm)
300
Package volume (m3)
0.03
IP internal
20
Replaceable (LED only) light source by a professional
Accessories & Power Supply
Spare Parts
01.
Aim/Aim Small Black ceiling attachment assembly
RF0090130
02.
Aim/Aim Small Kit of quantity 3 m4 screws
RF06750
03.
Aim Black ceiling rose assembly
RF0090230
04.
Aim Heatsink, 2700K Led Module & Reflector Assembly
RF0090700
05.
Aim opal diffuser
RF0090600
