Aimer

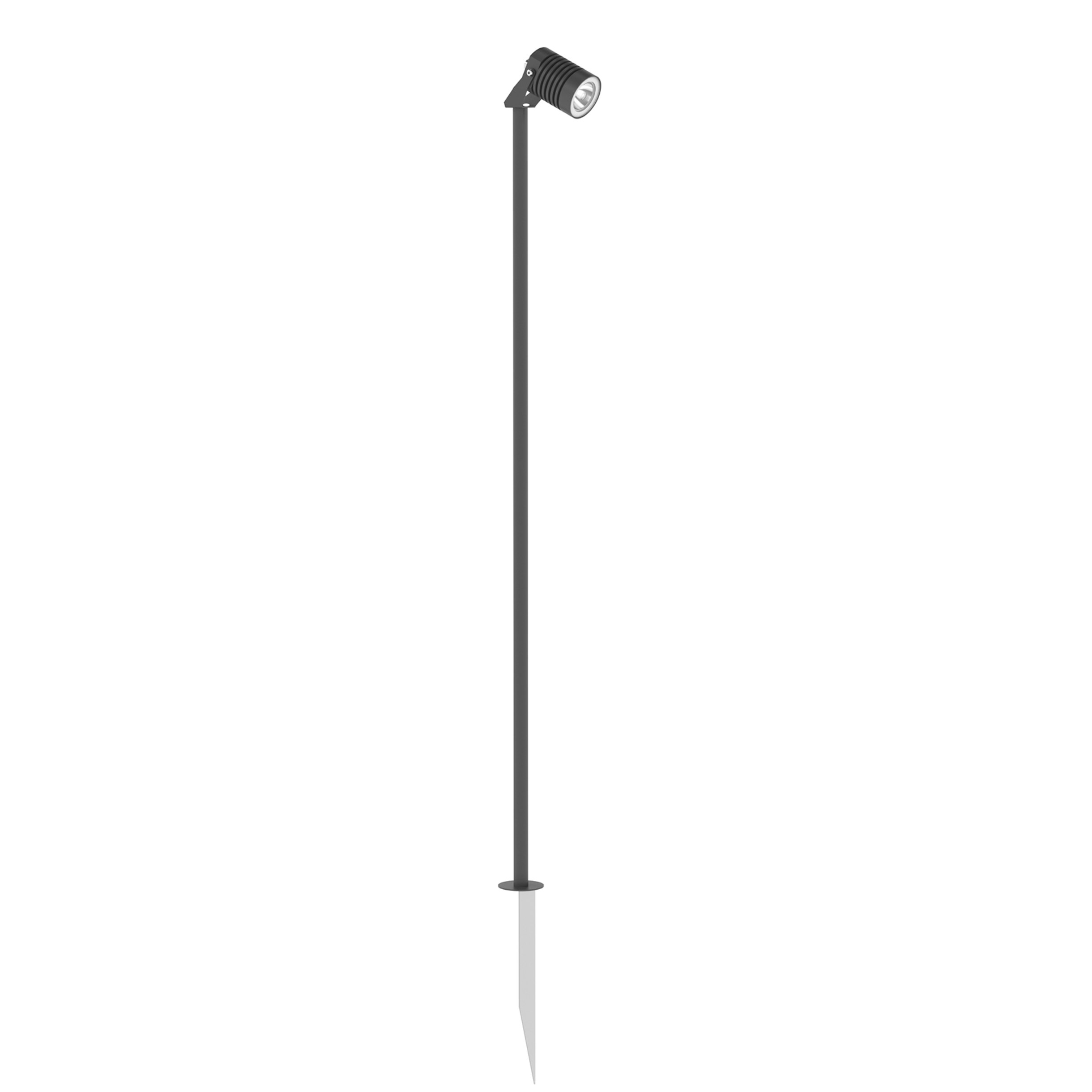

FA51303633 AnthraciteAimer 2 Pole 500
Designed by FLOS Outdoor, 2011

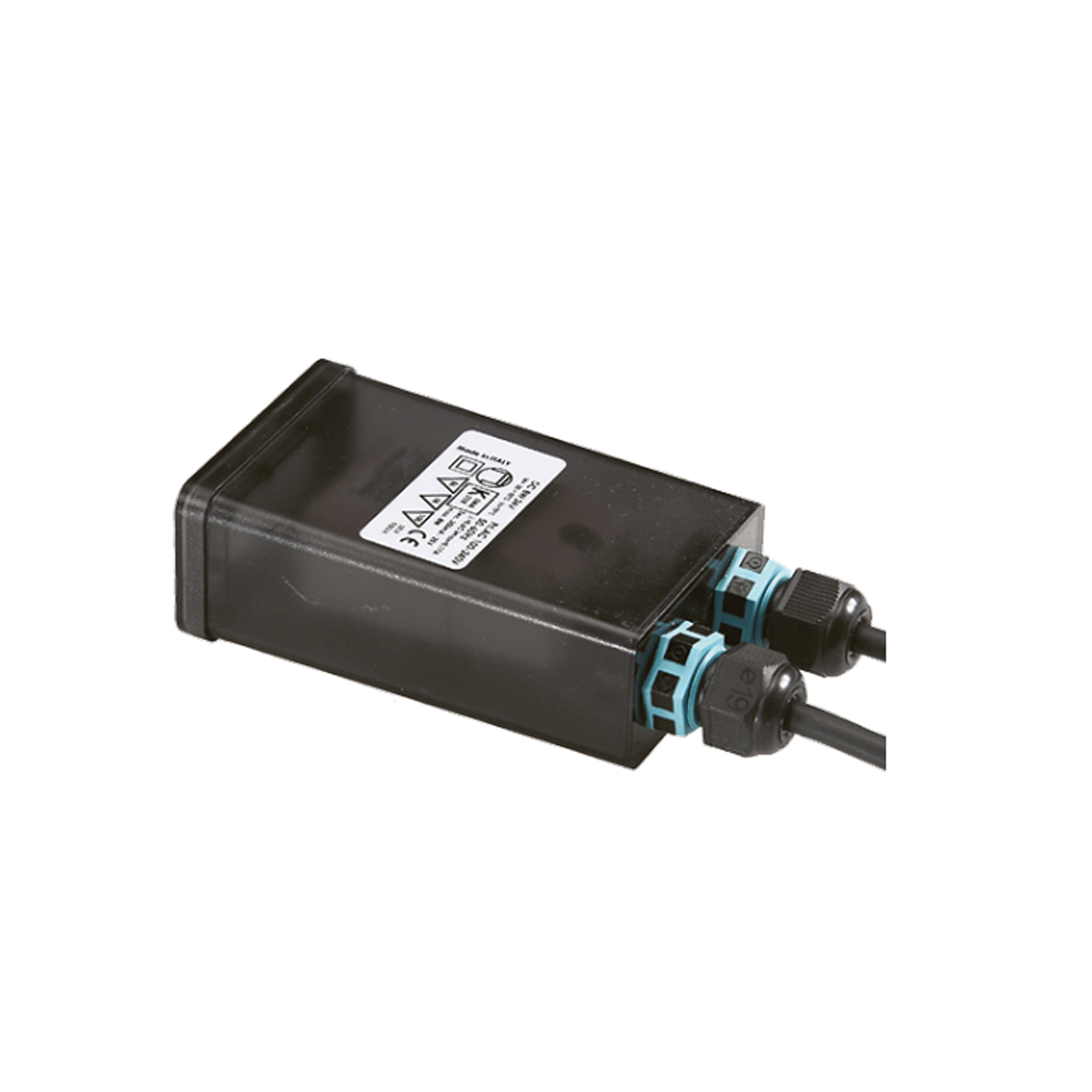

LED source included. Remote electrical power supply 24V dc ON/OFF to be ordered separately. Equipped with a 2000 mm protruding section of neoprene cable and a 2-pole and 3-way connection box with H2O STOP system that guarantee the tightness of the connection. Extraclear transparent glass. Metal nail for ground installation included. Dimmable version available upon request.
2W - 224lm - 3000K - CRI> 80 - Beam° 12
Technical Drawing
Main specifications
EAN
8054793631387
Mounting
Ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
2
System power (W)
3.4
Source flux (lm)
149
Lumen Output (lm)
224
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
12
Beam angle C90-270 (º)
12
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Remote excluded
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Anthracite
Orientation
Directional
Longitudinal tilting (°)
174
Net weight (kg)
0.93
Package height (mm)
117
Package width (mm)
1010
Package length (mm)
115
Package volume (m3)
0.01
IP internal
65
Notes
Dimmable version on request
