Almendra
F0391009 Off-white

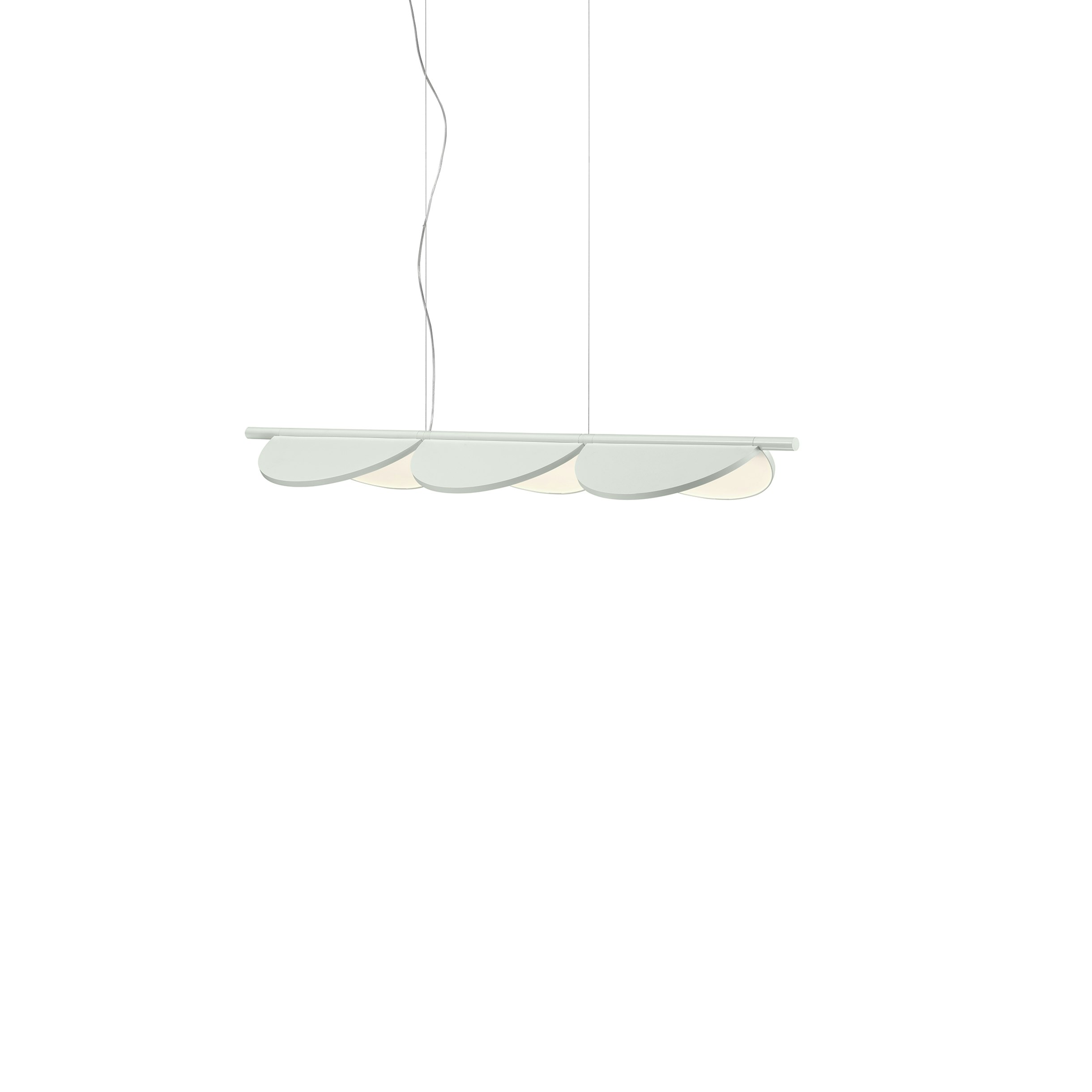

Almendra Linear Suspension 3 Primer

Suspension lamp emitting diffused light in a linear composition. Aluminium tubular structure with CNC-machined terminals in matt or metallised finish. Integrated Edge Lighting technology. Light units can rotate in 60° steps to adjust emission direction. Matt white metal ceiling rose with integrated electronics supporting 1–10 V, DALI or push-dim dimming.

Almendra by Patricia Urquiola is a modular lighting system inspired by the almond tree, from which it takes its name. Its softly curved modules recall seeds or shells, natural yet mechanical in form, arranged in linear or branching compositions. A synthesis of poetry and sustainability, it reflects recurring themes in Urquiola’s work, brought to life through beautiful design and advanced technology. Winner of a Stylepark Selected Award 2022.

45W - 1755lm - 2700K - CRI> 95

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Almendra-Linear_3
Main specifications
EAN
8059607050699
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Edge Lighting
Power (W)
45
Lumen Output (lm)
1755
Schematic light drawing
32514_ALMENDRA_S_BCO_BODY
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Off-white
Length (mm)
1286
Cord colour
Clear
Cord length (mm)
2800
Canopy colour
Primer
Canopy length/diameter (mm)
420
Canopy width (mm)
70
Canopy height (mm)
39
Net weight (kg)
7.24
Package volume (m3)
0.15
IP internal
20
CE
RG
CCC
EAC
CMIM
ENEC
IRAM
UKCA
IECEC
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F0391009-almendra-S3-flos-boom
01. Driver 96W 48V 220-240V
RF32405
02. Led dimmer kit
RF34197

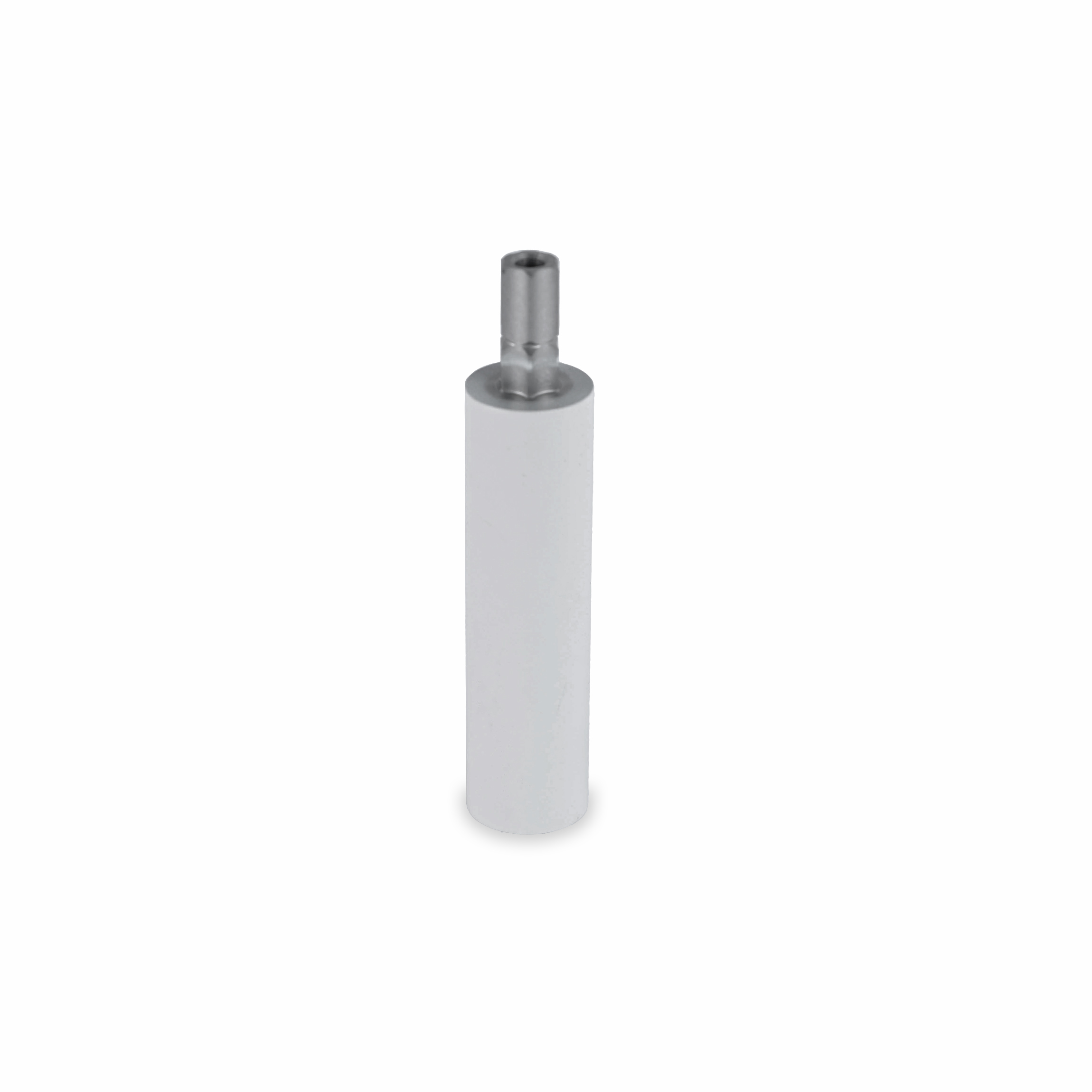

04. Almendra White terminal joint L90
RF32773

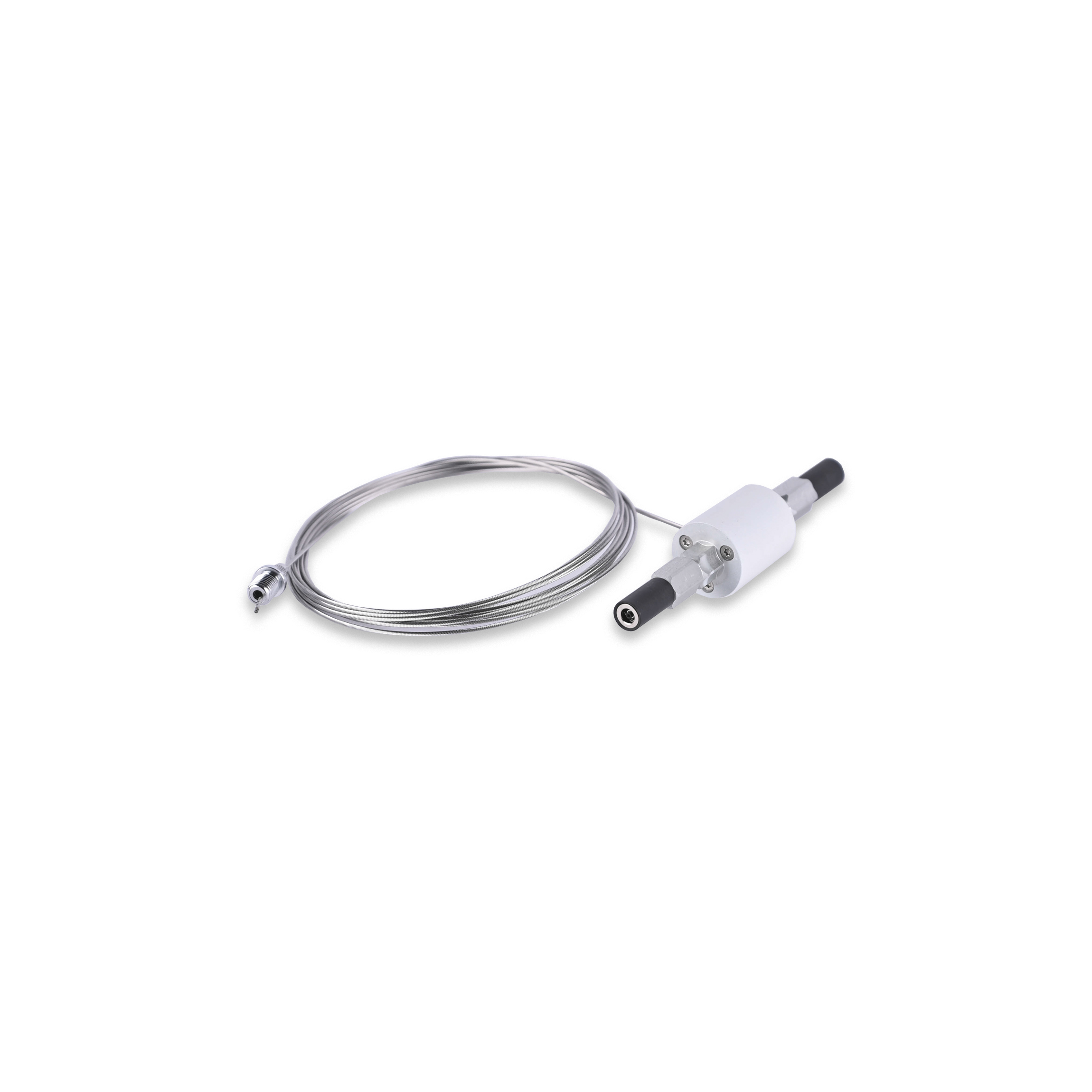

05. Almendra wiring and connections white assembly
RF32530

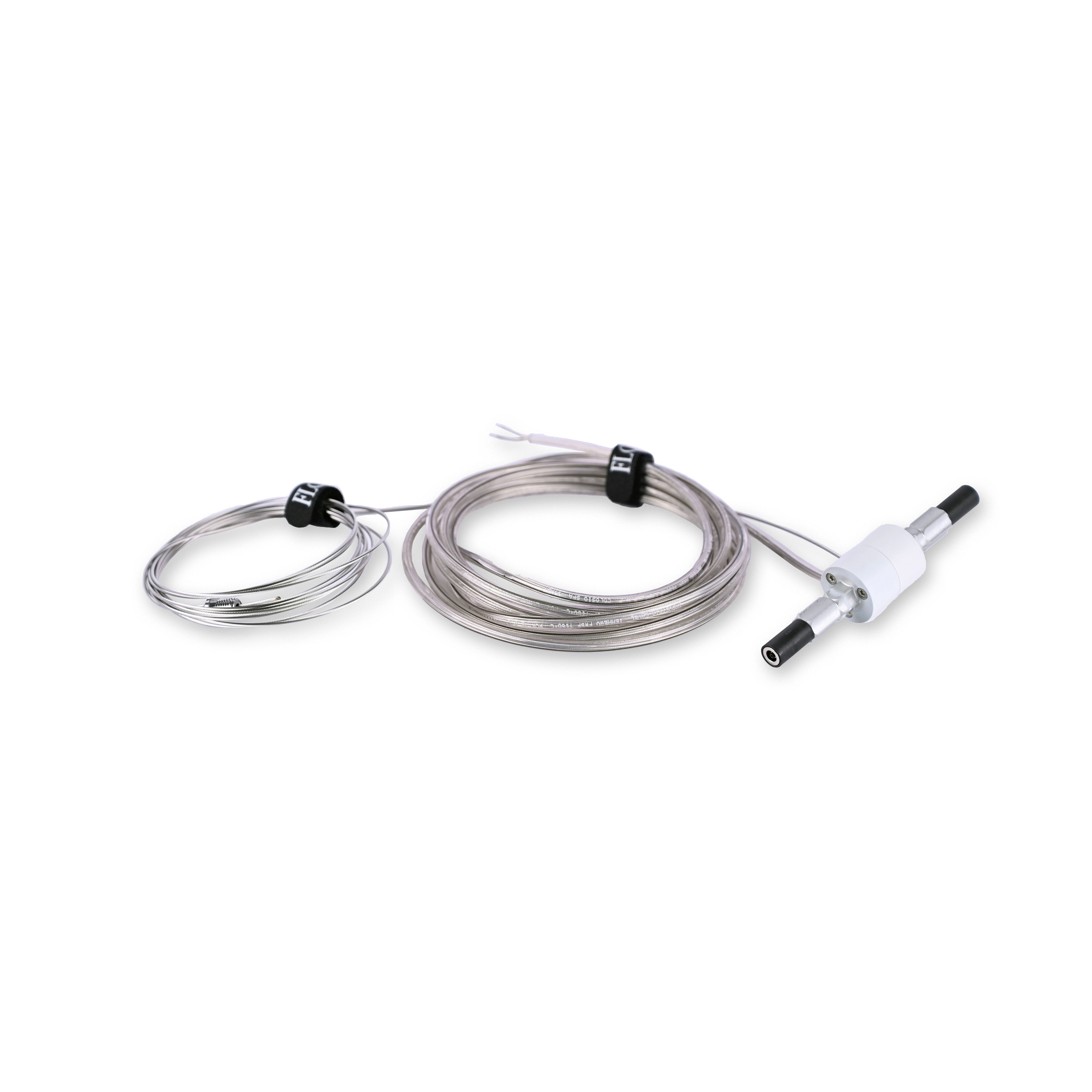

06. Almendra white suspension wiring assembly
RF32521
08. Almendra Suspension White body assembly
RF32514
09. Kit with screws and allen key
RF3160100
