Almendra
F0392026NudeAlmendra Linear Suspension 4 Primer
Designed by Patricia Urquiola, 2022
Suspension lamp emitting diffused light in a linear composition. Aluminium tubular structure with CNC-machined terminals in matt or metallised finish. Integrated Edge Lighting technology. Light units can rotate in 60° steps to adjust emission direction. Matt white metal ceiling rose with integrated electronics supporting 1–10 V, DALI or push-dim dimming.
60W - 1828lm - 2700K - CRI> 95
Technical Drawing
Main specifications
EAN
8059607050750
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Edge Lighting
Power (W)
60
Lumen Output (lm)
1828
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Nude
Length (mm)
1665
Cord colour
Clear
Cord length (mm)
2600
Canopy length/diameter (mm)
799
Canopy width (mm)
70
Canopy height (mm)
39
Net weight (kg)
10.18
Package volume (m3)
0.22
IP internal
20
Spare Parts
01. Driver 96W 48V 220-240V
RF32405
02. Led dimmer kit
RF34197

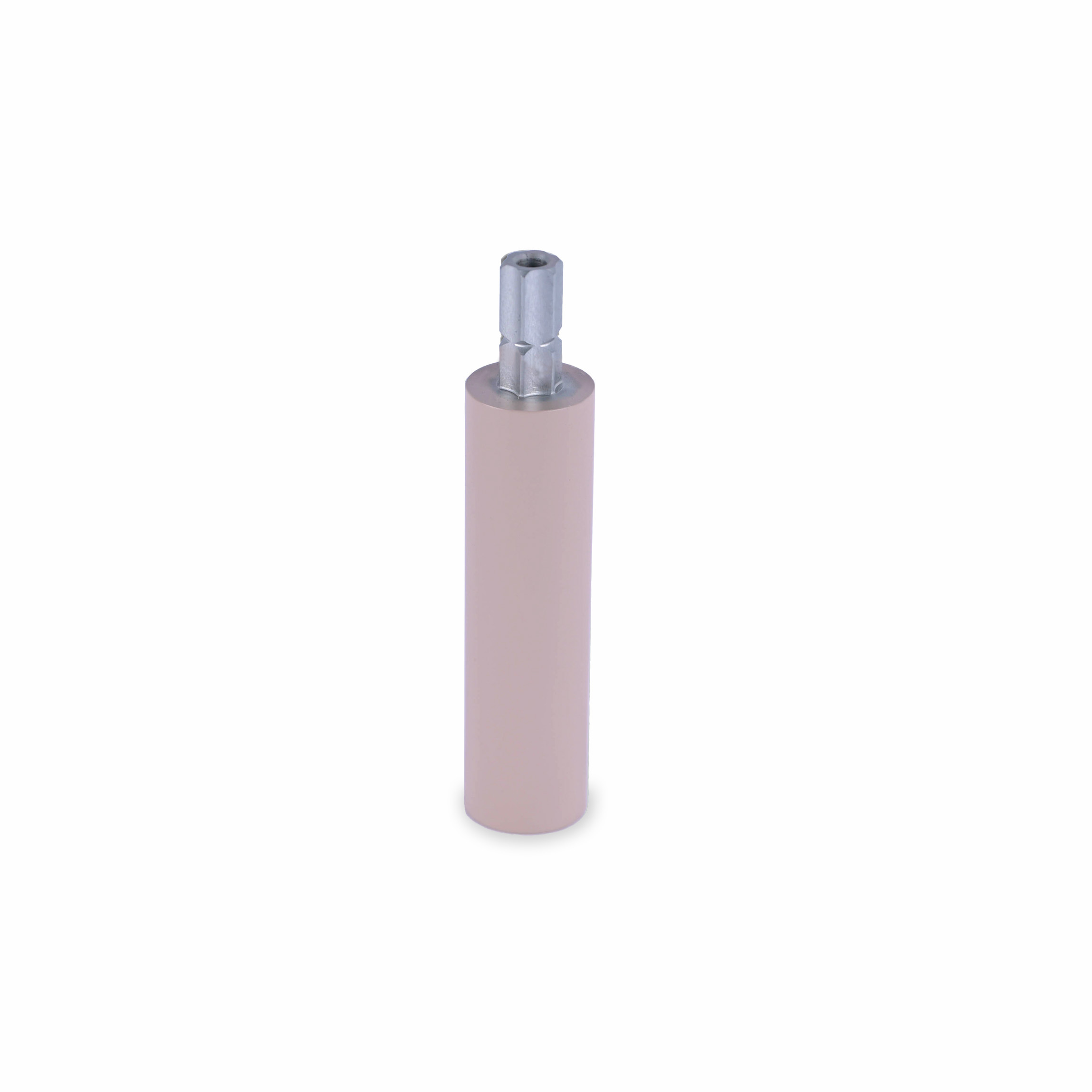

04. Almendra Nude terminal joint L90
RF32775

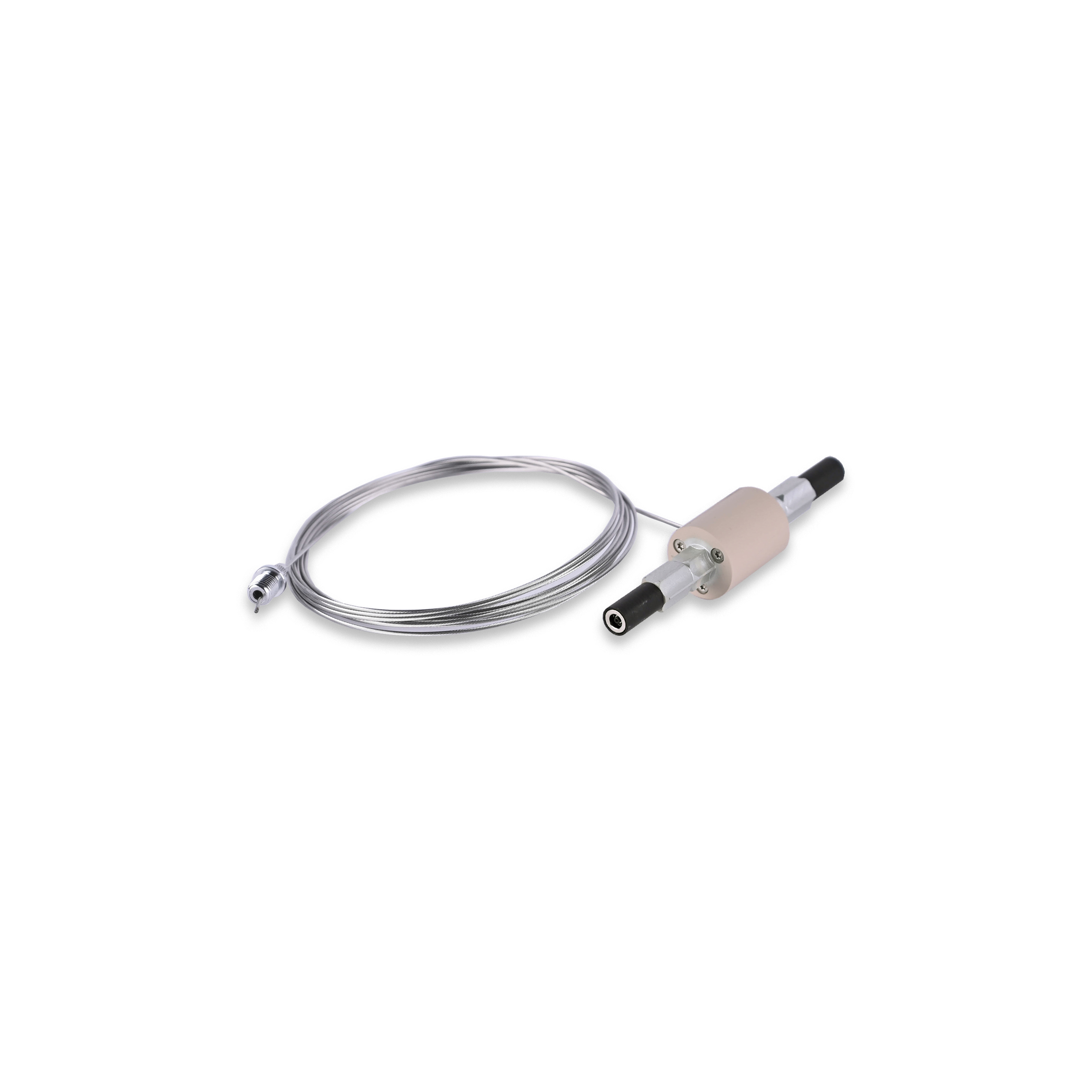

05. Almendra Suspension nude wiring & connection assembly
RF32532

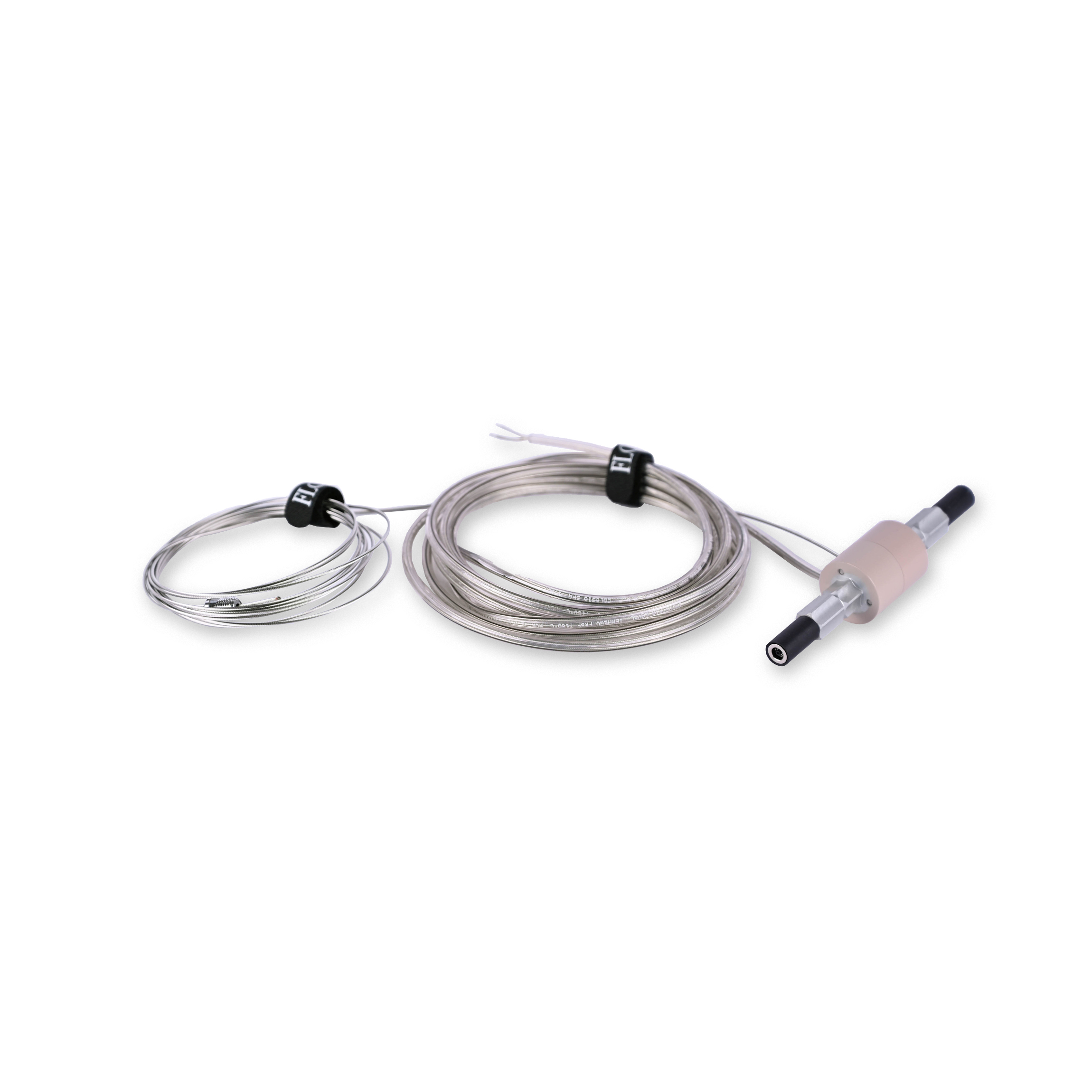

06. Almendra Suspension nude central feed assembly
RF32523
07. Almendra Suspension nude wiring assembly
RF32571

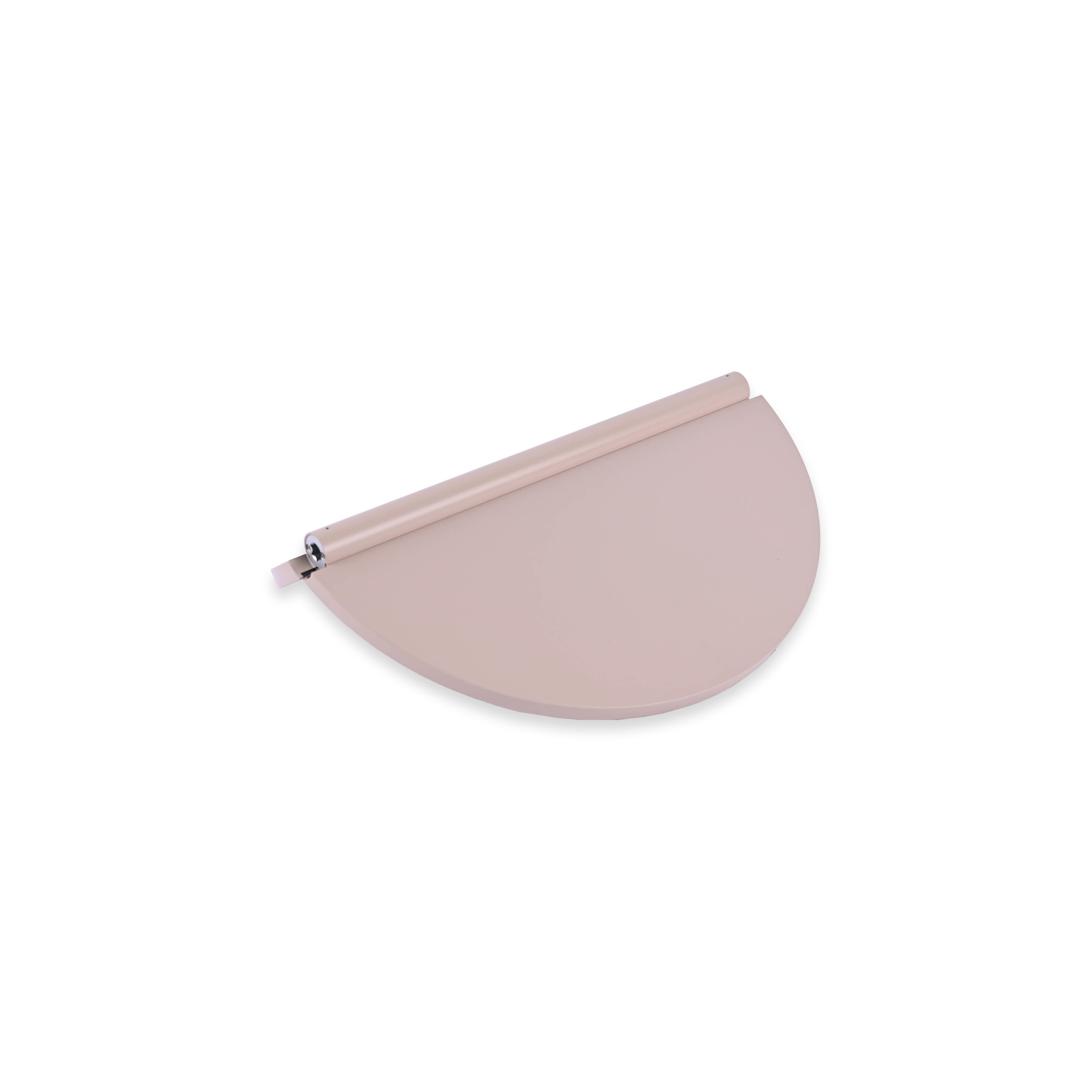

08. Almendra Suspension Nude body assembly
RF32516
09. Kit with screws and allen key
RF3160100
