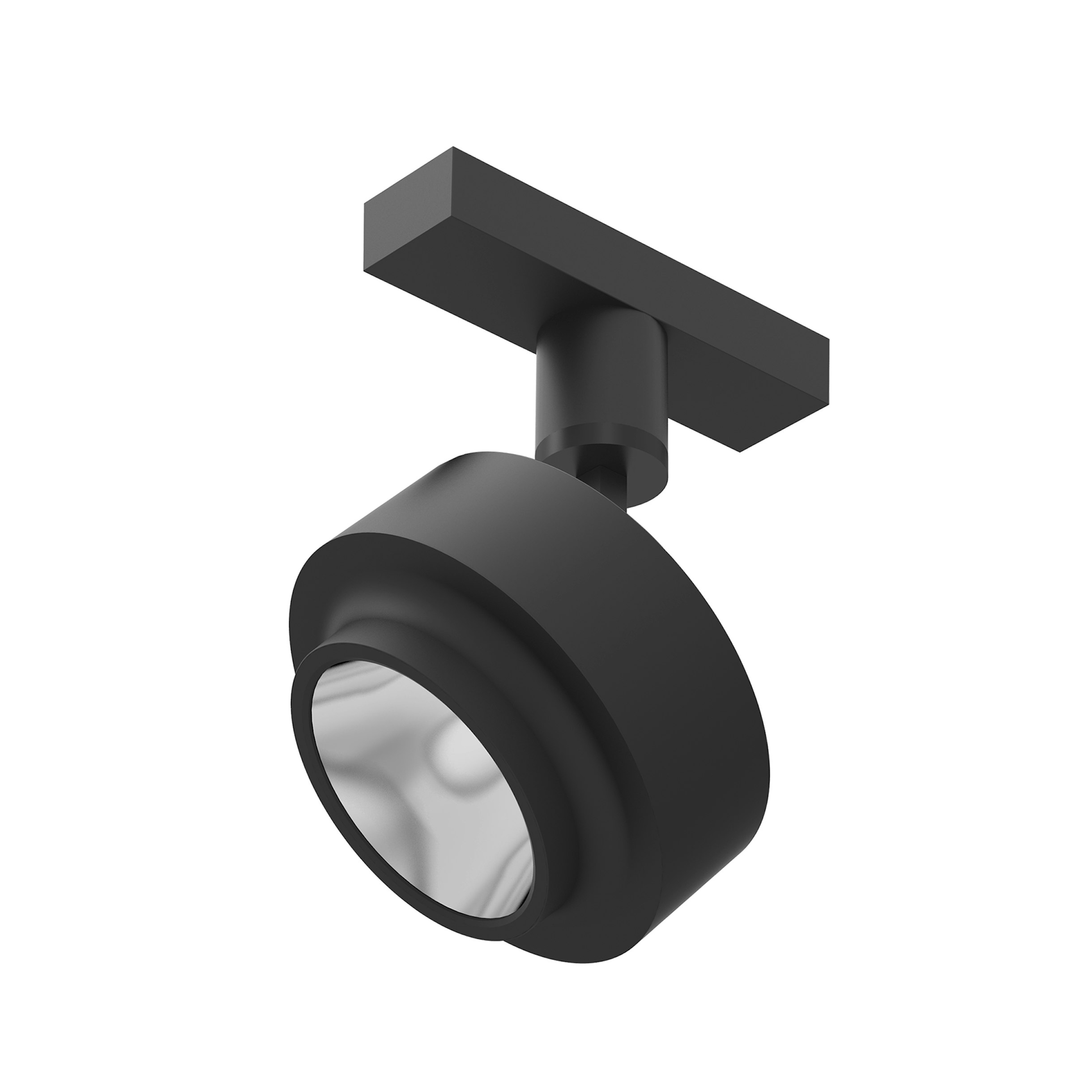

03.6275.14BCB BlackAnthony Spot Track Casambi integrated
Designed by Antonio Citterio, 2020
Accent lighting LED module to be installed in The Running Magnet System. Built-in DC/DC electronic voltage converter.
14W - 1087lm - 3000K - CRI> 90 - Beam° 22
Technical Drawing
Main specifications
Mounting
Track
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
14
Source flux (lm)
1308
Lumen Output (lm)
1087
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
Beam angle C0-180 (º)
22
UGRL
<16
Electrical
Insulation class
III
Forward voltage (V)
24
LED current (mA)
900
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable Casambi
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Black
Net weight (kg)
0.5
IP internal
20
Notes
Maximum 9 spots for a single driver. To obtain flood optics (35°) order Anthony Spot Medium + flood lens. The control system with the Casambi version of light fixtures is directly and individually regulated wirelessly using the application FLOS Control® by Casambi.
Replaceable (LED only) light source by a professional
