FA10517414457 Polished Stainless Steel

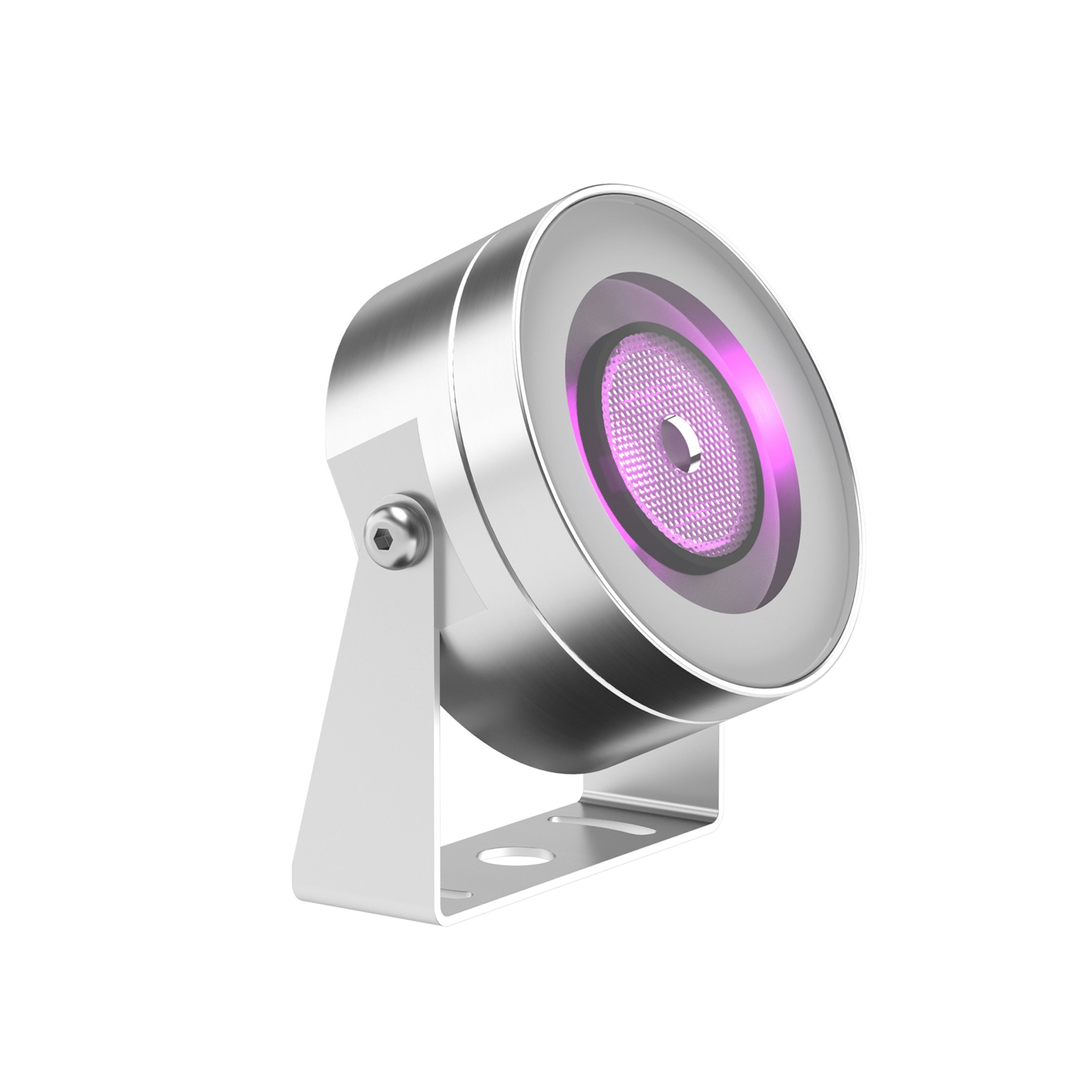

Aqua Aimer 3 Rgb
New
Designed by FLOS Outdoor, 2011
RGB LED source included. 316L stainless steel body and bracket, suitable for submersion. Remote electrical power supply with DMX 3chx350mA interface to be ordered separately. Serial connection. Equipped with a 5000 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Transparent screen-printed glass. Fixing bracket included. The metal nail for ground installation needs to be ordered separately.
3W - RGBK
Also available in:
Technical Drawing
Main specifications
EAN
8054793608495
Mounting
Ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
3
System power (W)
3.4
Photometric
Light distribution
Symmetric
CCT (K)
RGB
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable DMX
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency
No
Physical
Colour
Polished Stainless Steel
Orientation
Directional
Net weight (kg)
0.65
Package height (mm)
75
Package width (mm)
145
Package length (mm)
235
IP internal
68
IP external
66
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
