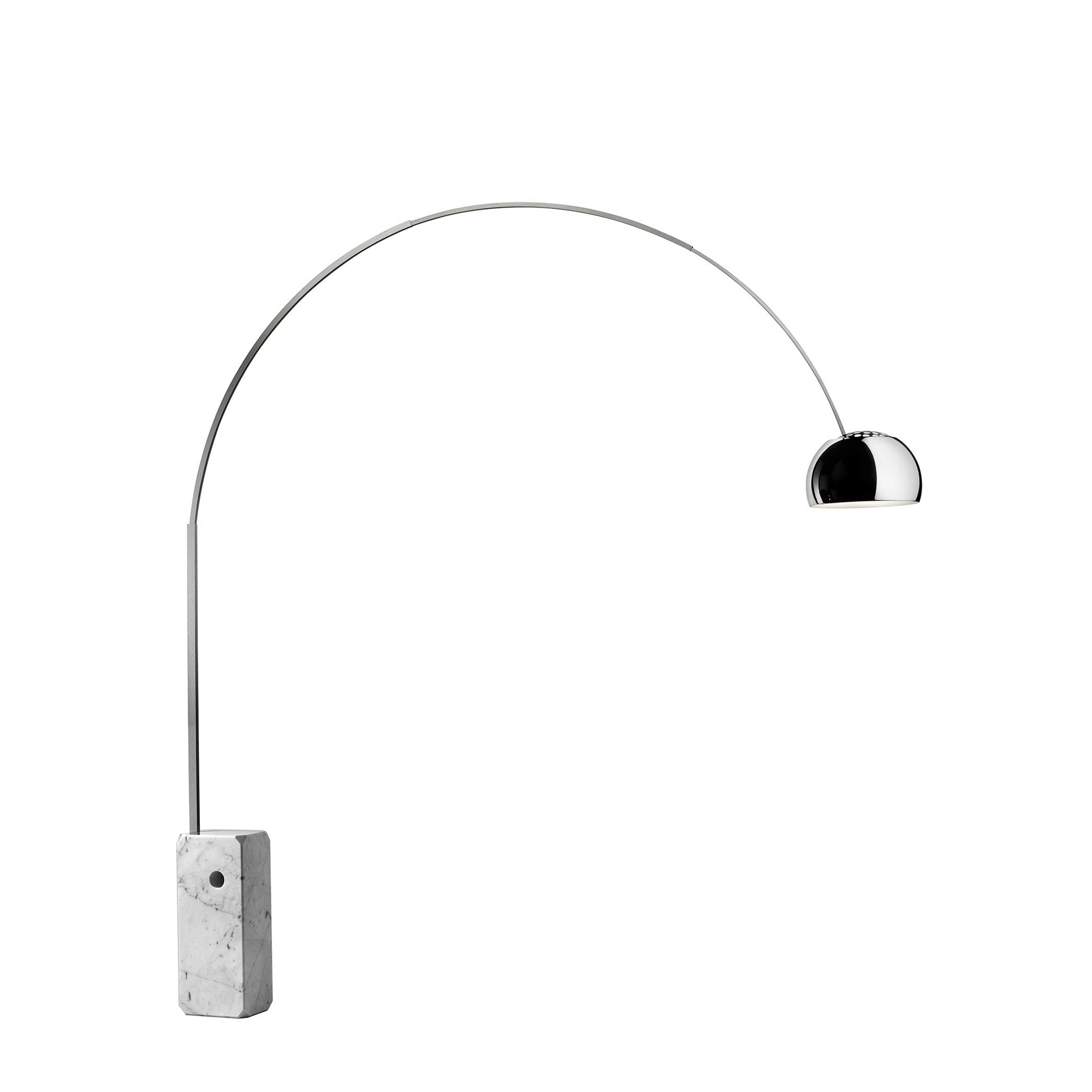

Arco
F0300000SteelArco
Designed by Achille and Pier Giacomo Castiglioni, 1962
Floor lamp emitting direct light via a perforated aluminium diffuser mounted on a stainless-steel telescopic stem. Swivelling and height-adjustable reflector made from pressed, polished and zapon-varnished aluminium. A white Carrara marble base serves as a counterbalance and features a hole for transport with a wooden pole.
Halogen - 70W
Technical Drawing
Main specifications
EAN
8059607000946
Mounting
Floor
Environments
Indoor dry location

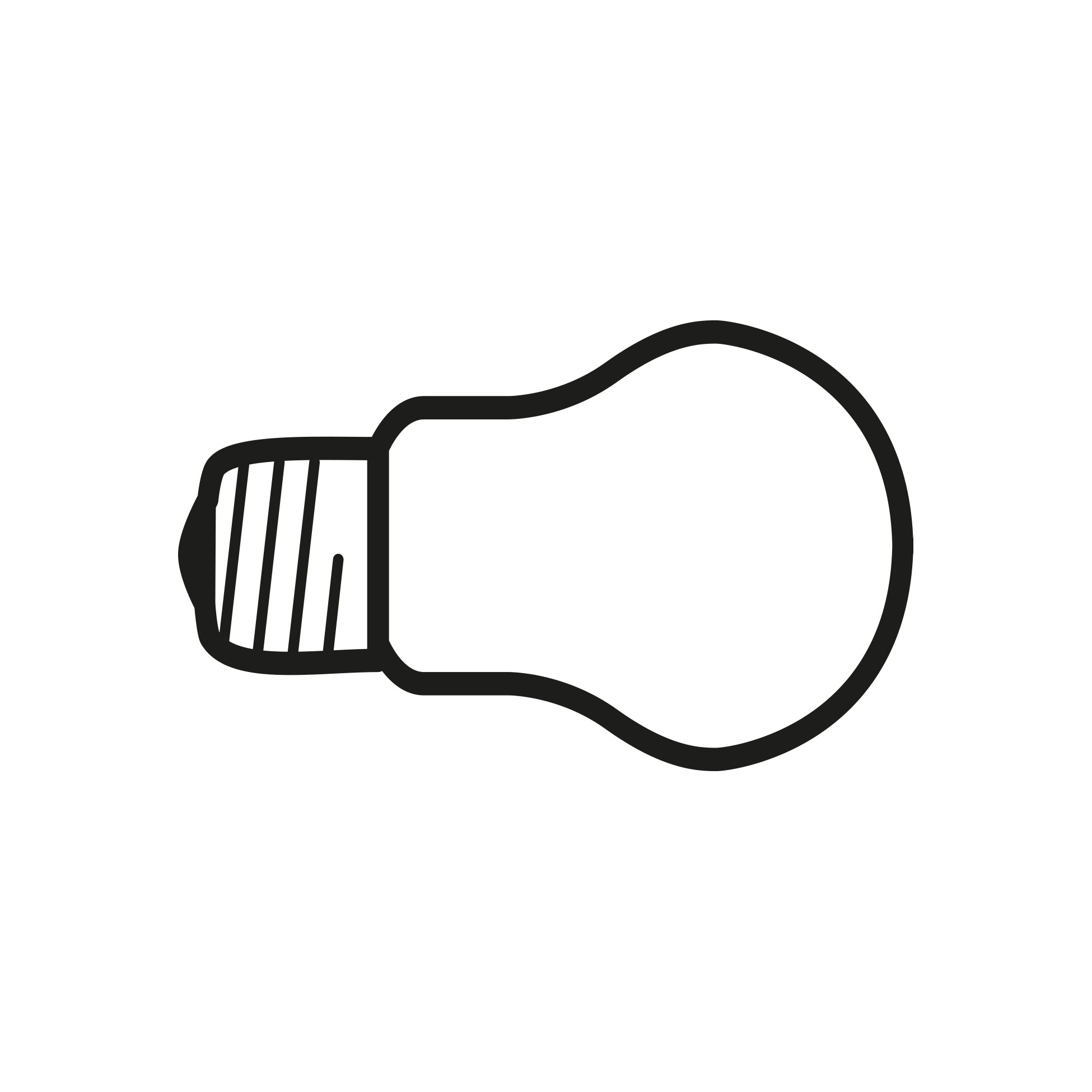

Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGSA/S
Number of lamps
1
Power (W)
70
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Plug type
Type C
Batteries inside
No
Physical
Colour
Steel
Length (mm)
2200
Cord colour
Black
Cord length (mm)
2500
Net weight (kg)
63.8
Package volume (m3)
0.13
IP internal
20
Spare Parts

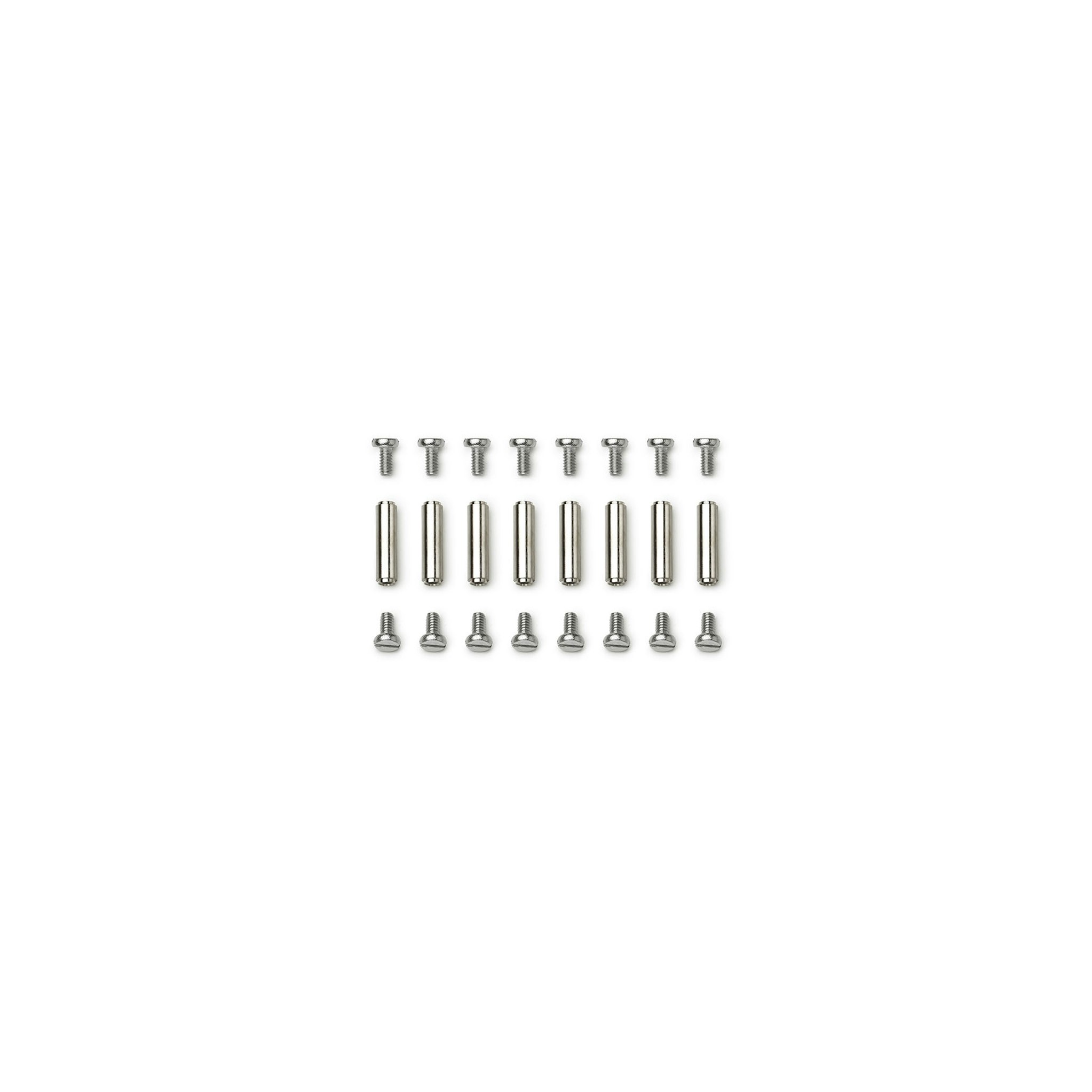

01. Pins and screw set
RF0300200

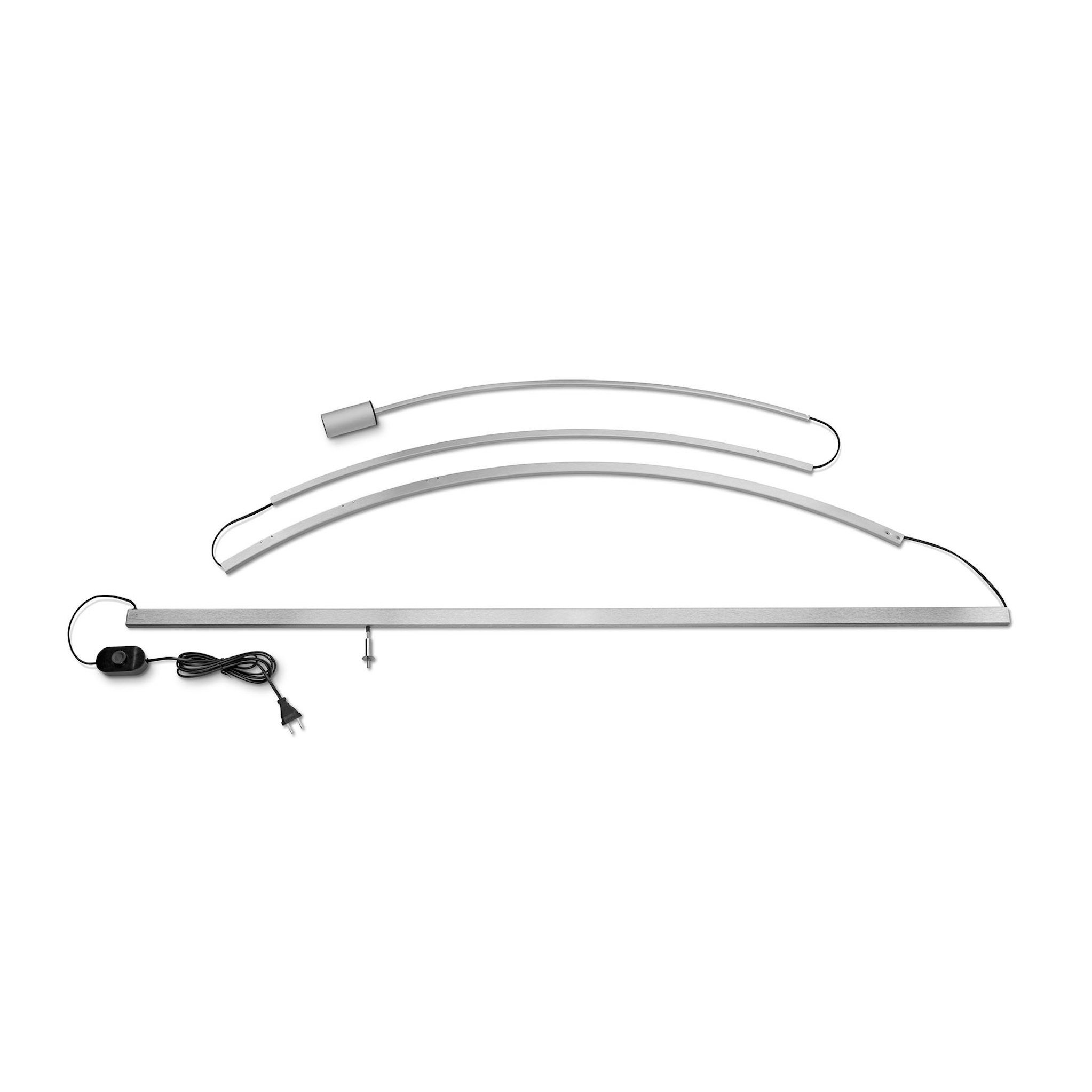

02. Arco Stem and channels Enec assembly with on/off switch
F0330000

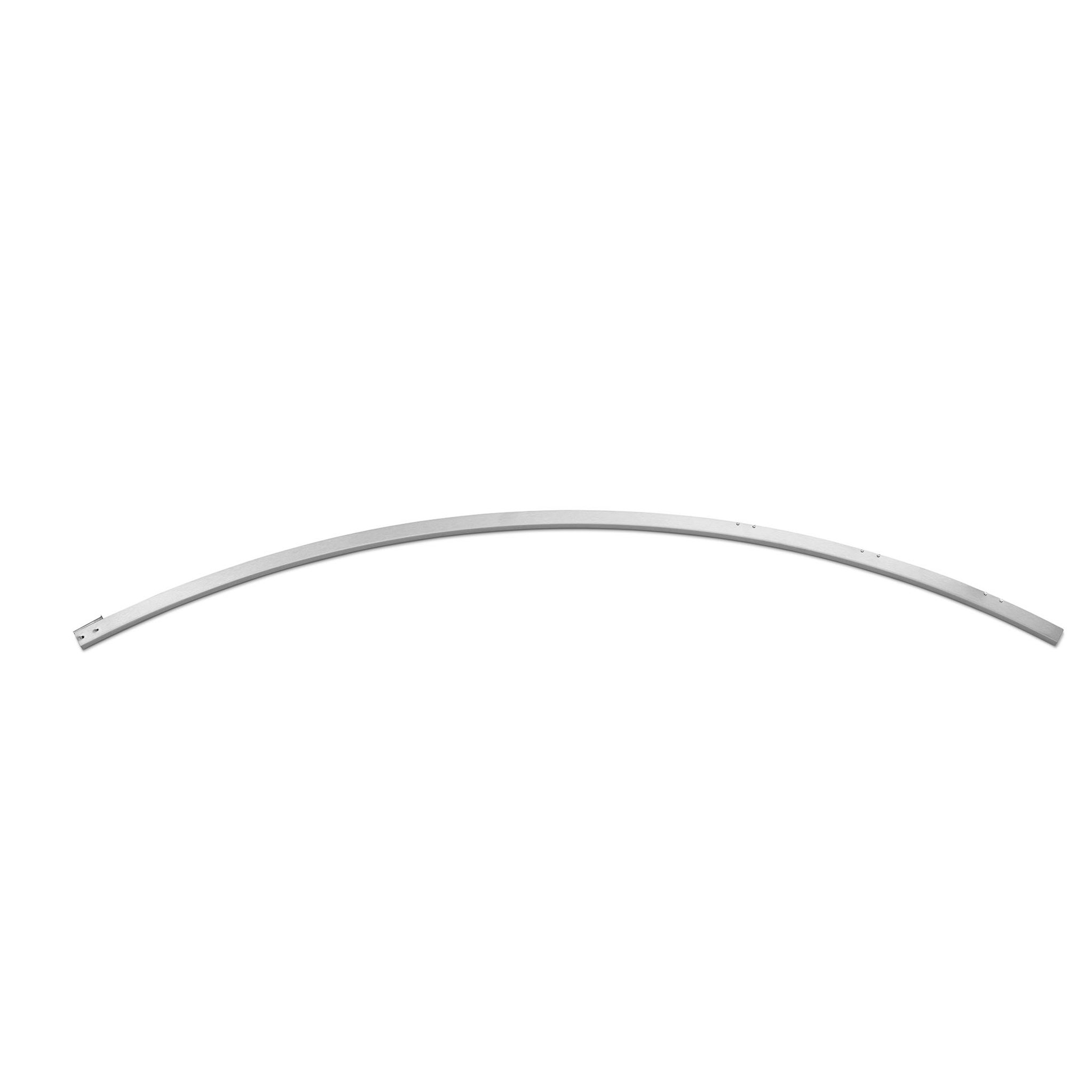

03. Long inox channel
RF02970

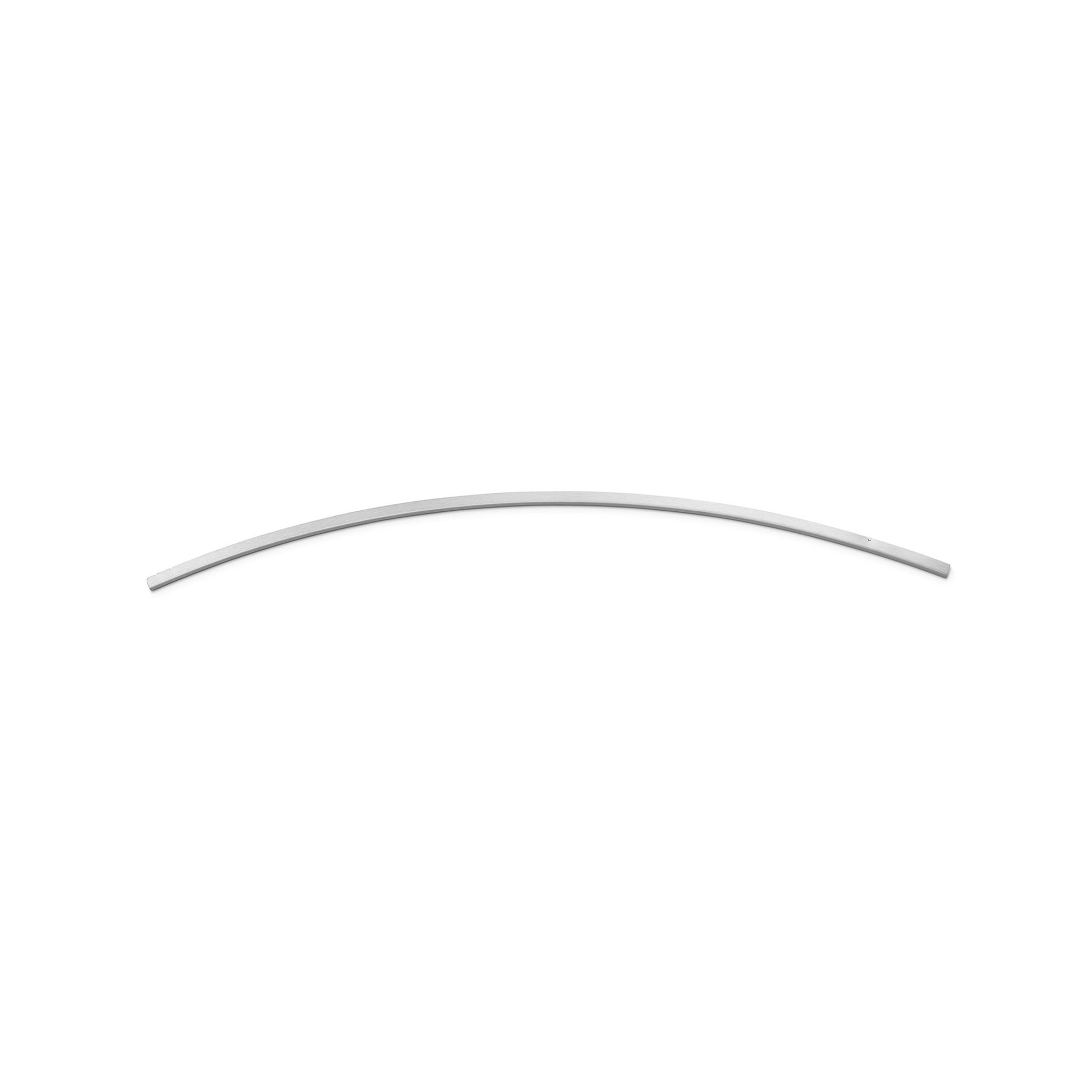

04. Medium inox channel
RF02971

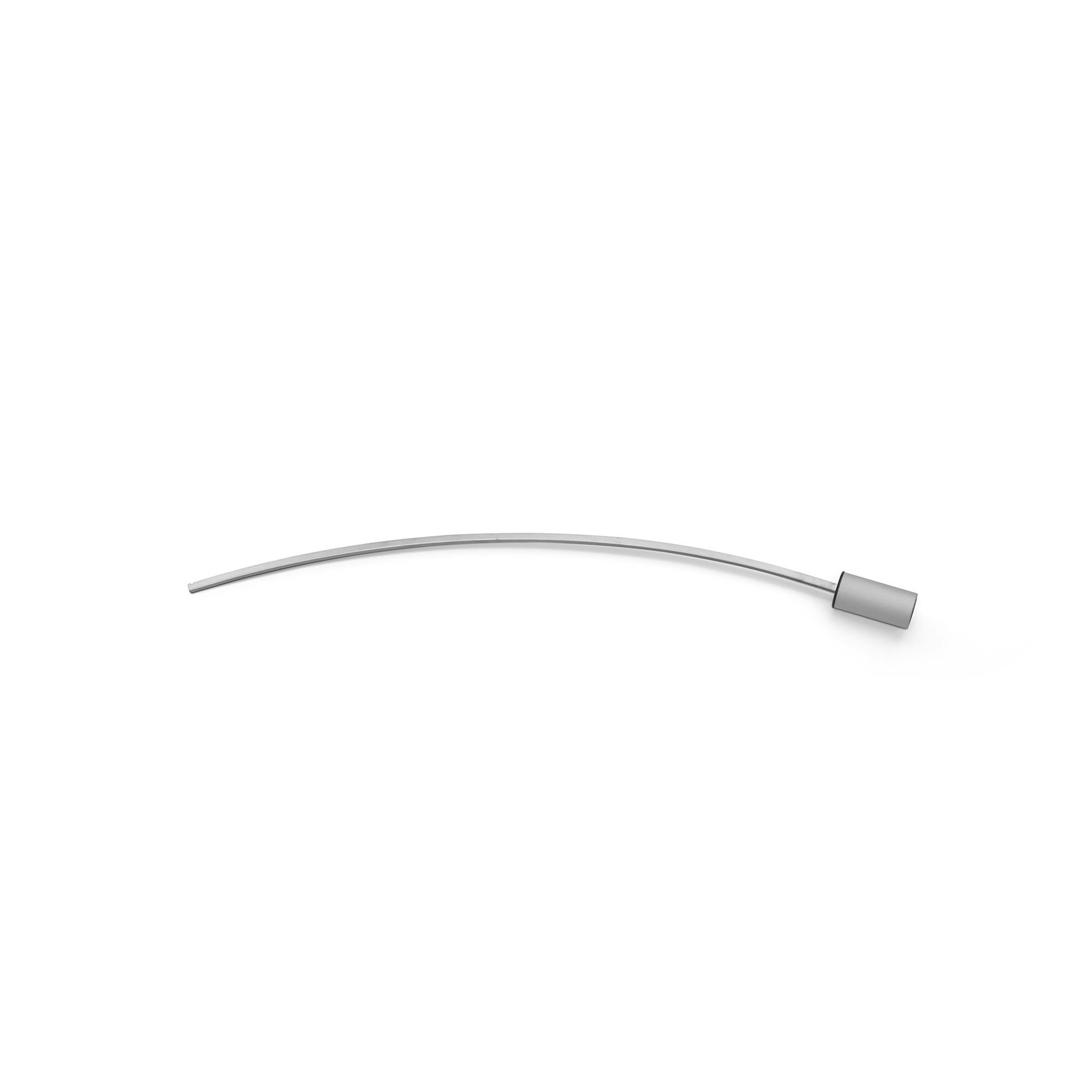

05. Arco Small inox channel with lamp holder integrated
RF02972

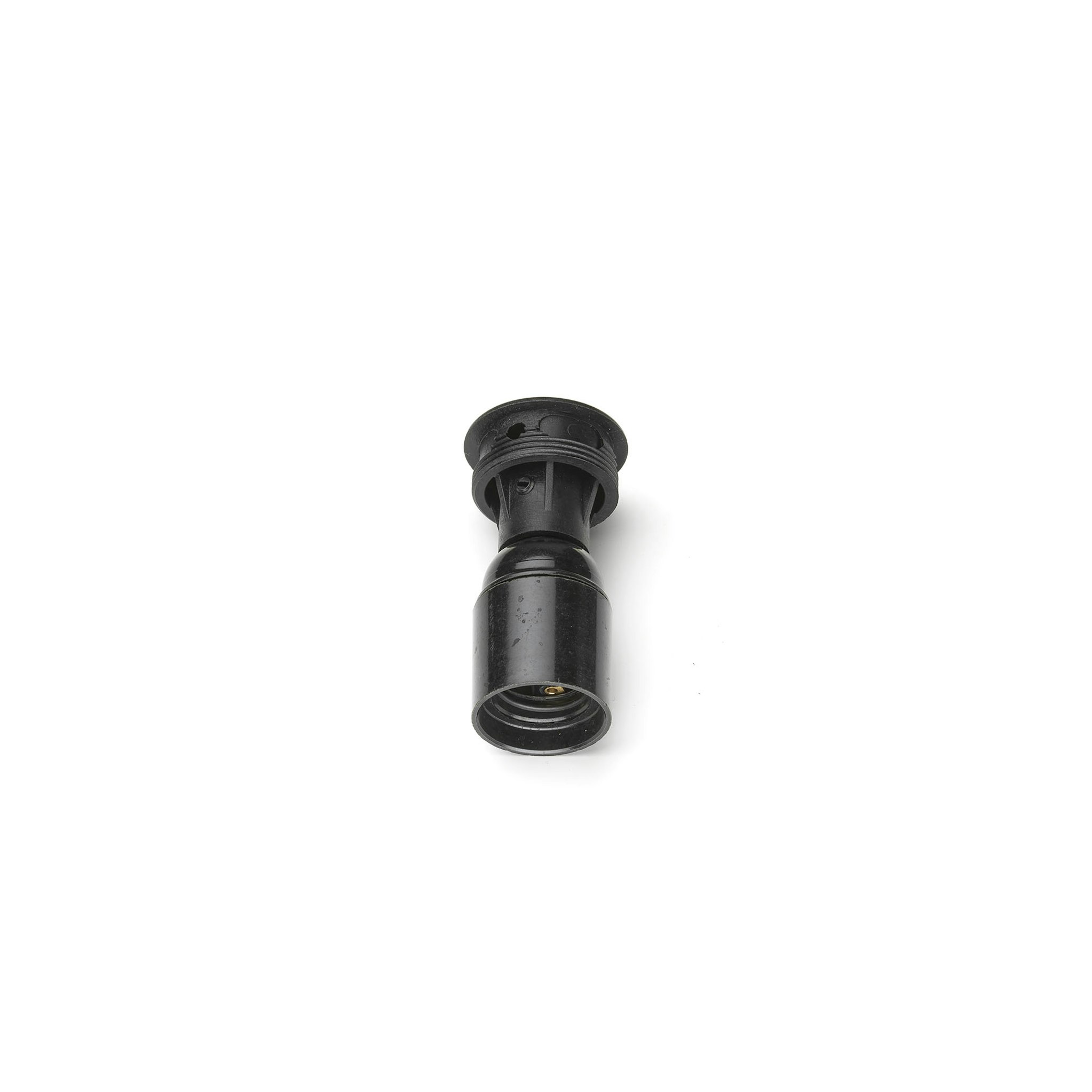

06. Arco Lamp holder with joint
RF0300300

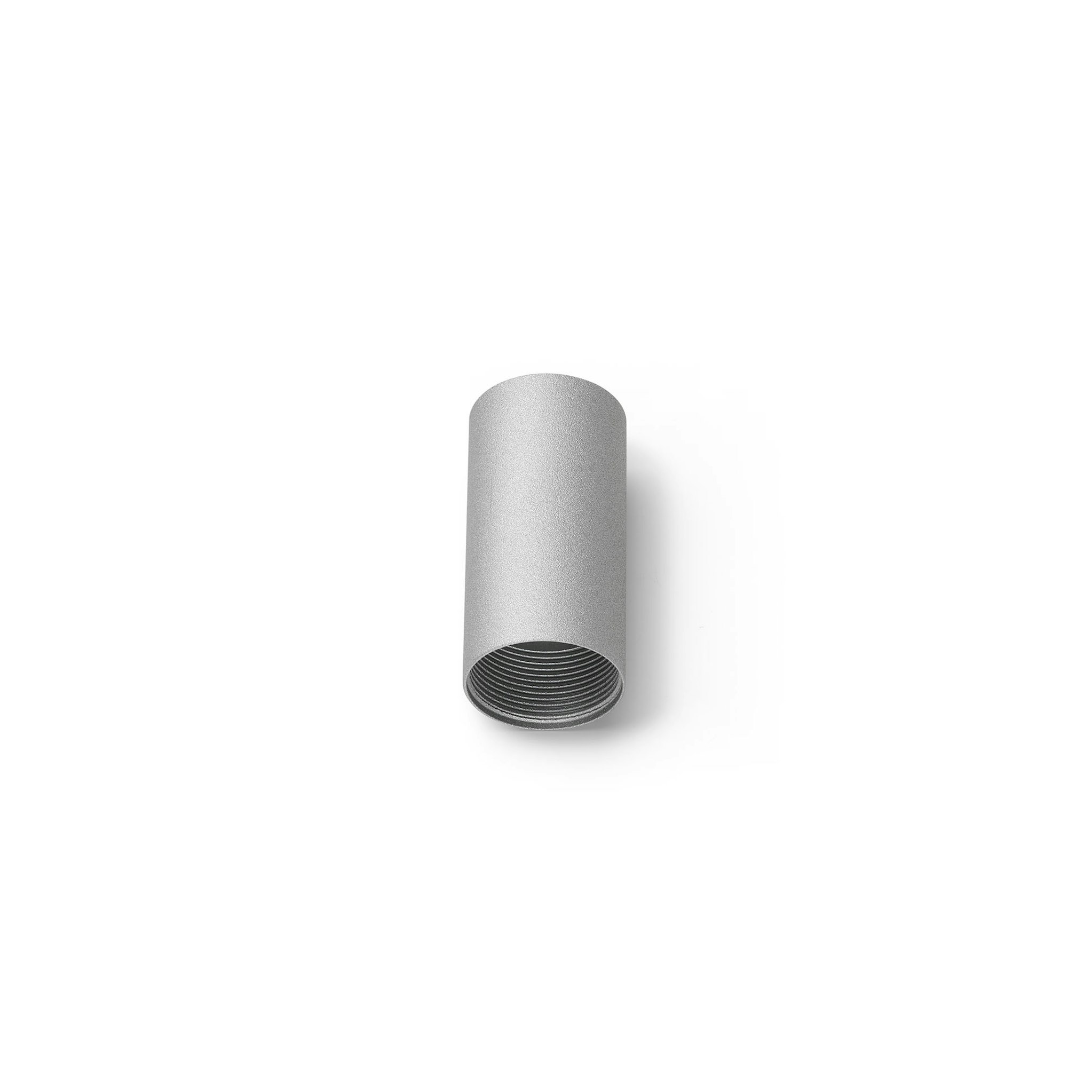

07. Arco Anodized sleeve
RF02593

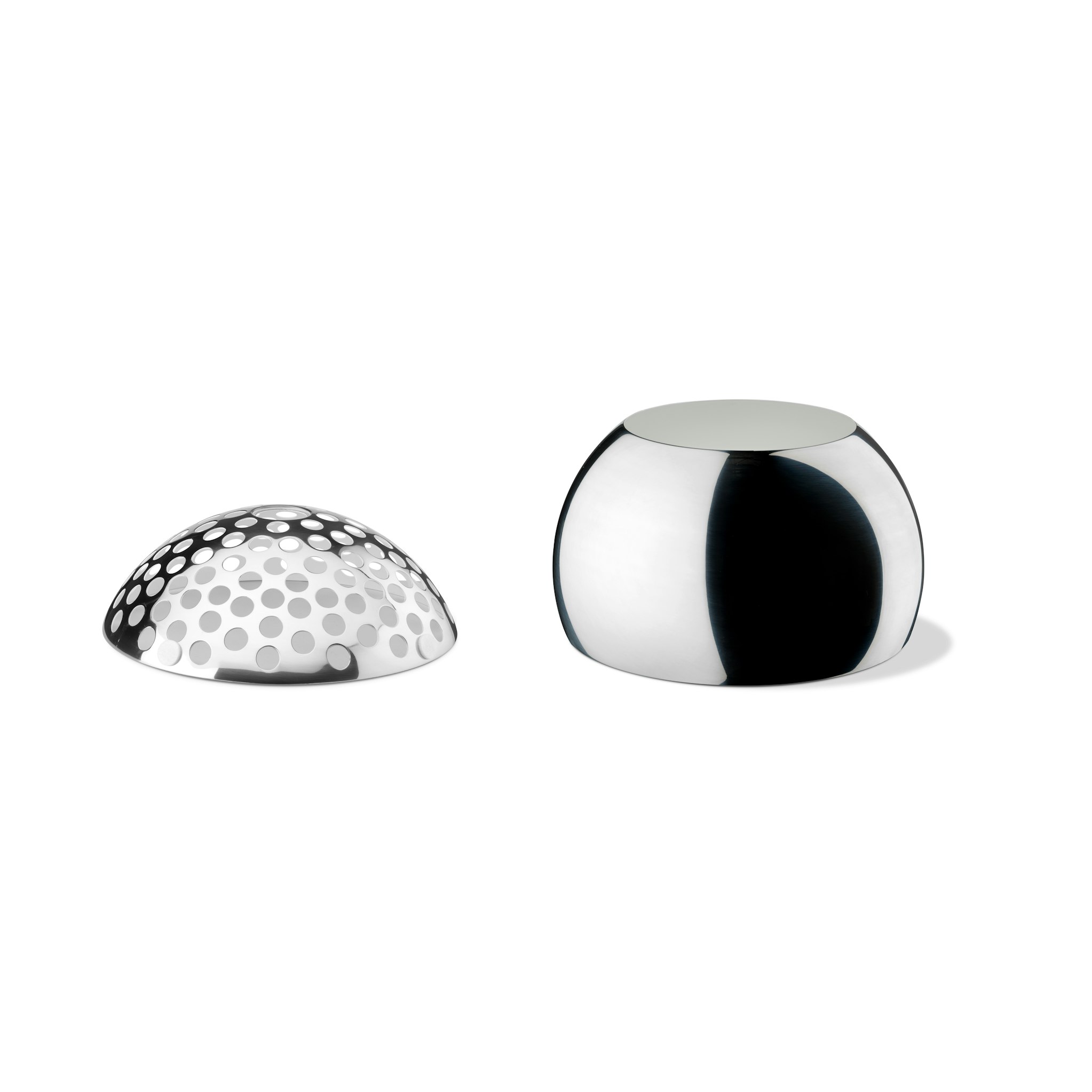

08. Arco Enec reflector and grid
F0320000

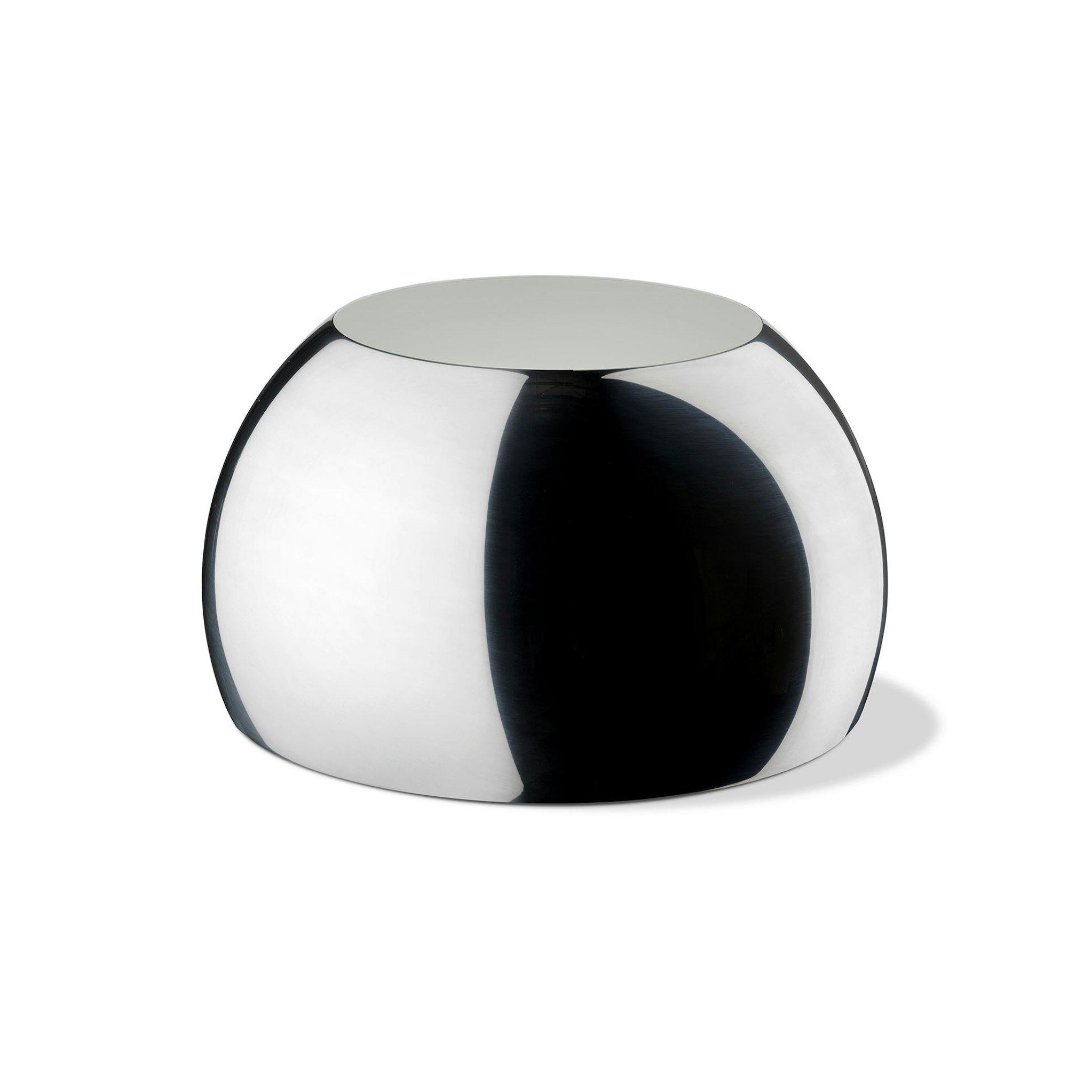

09. Polished reflector
RF00797

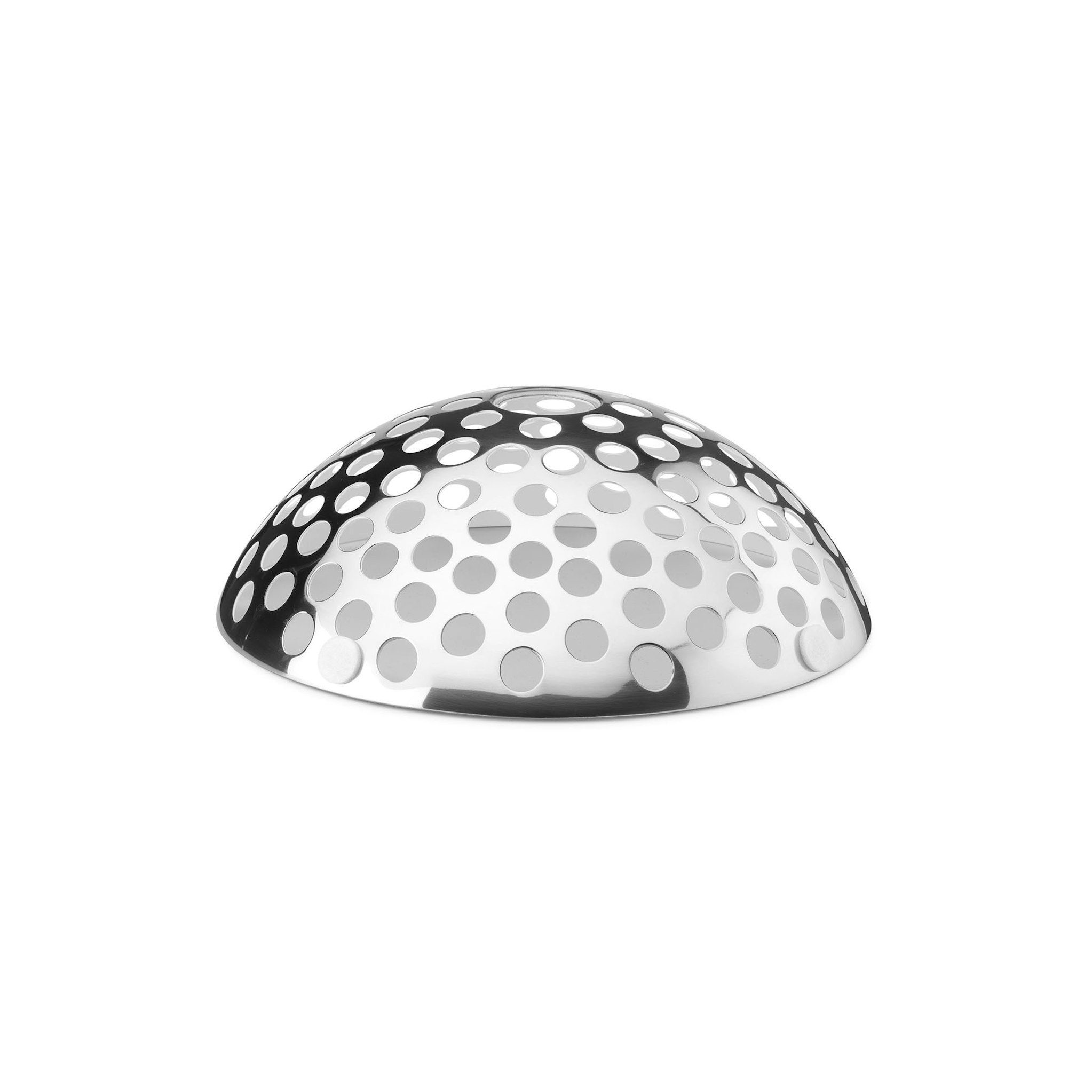

10. Arco Polished grid
RF01411

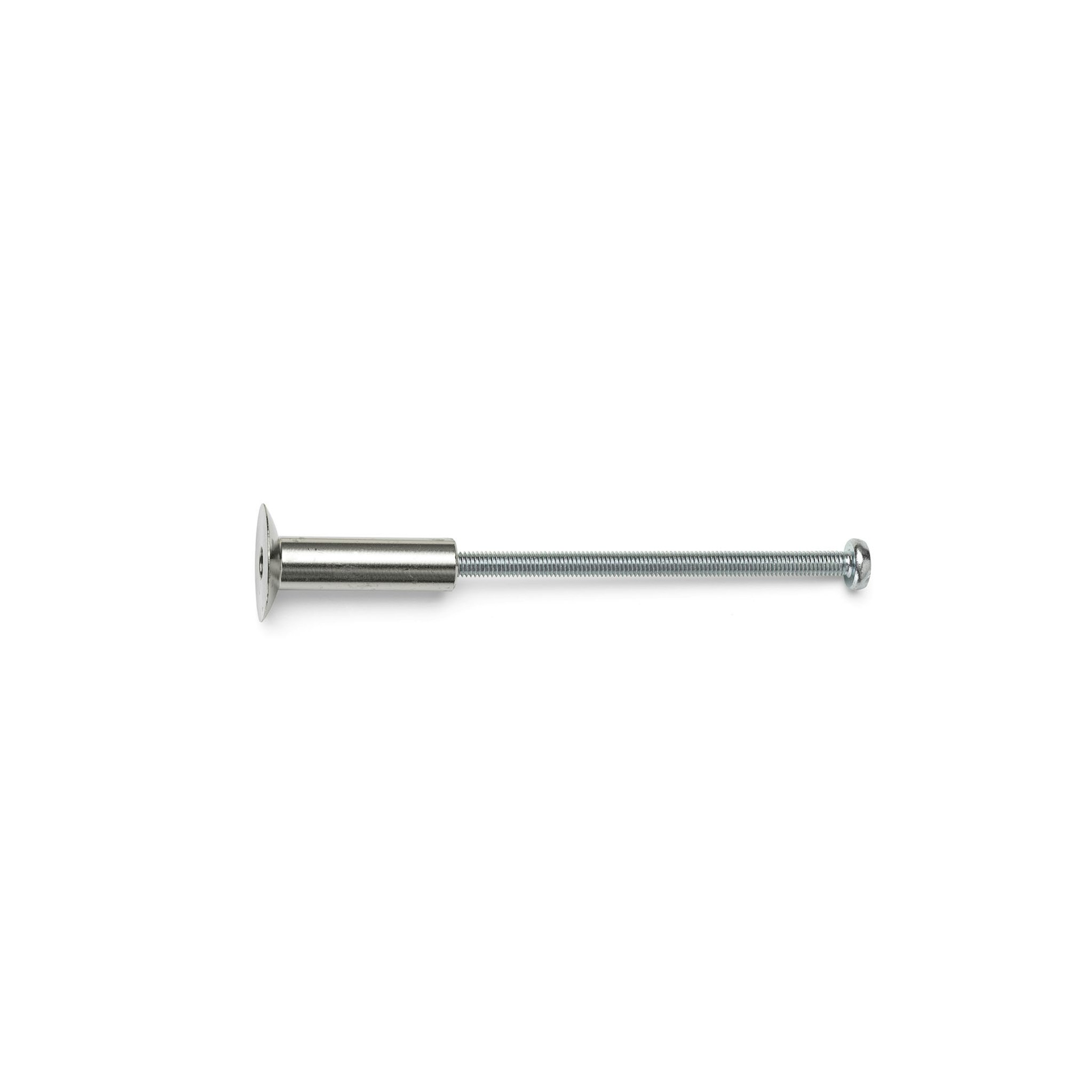

11. Fixing screw with joint
RF0300100

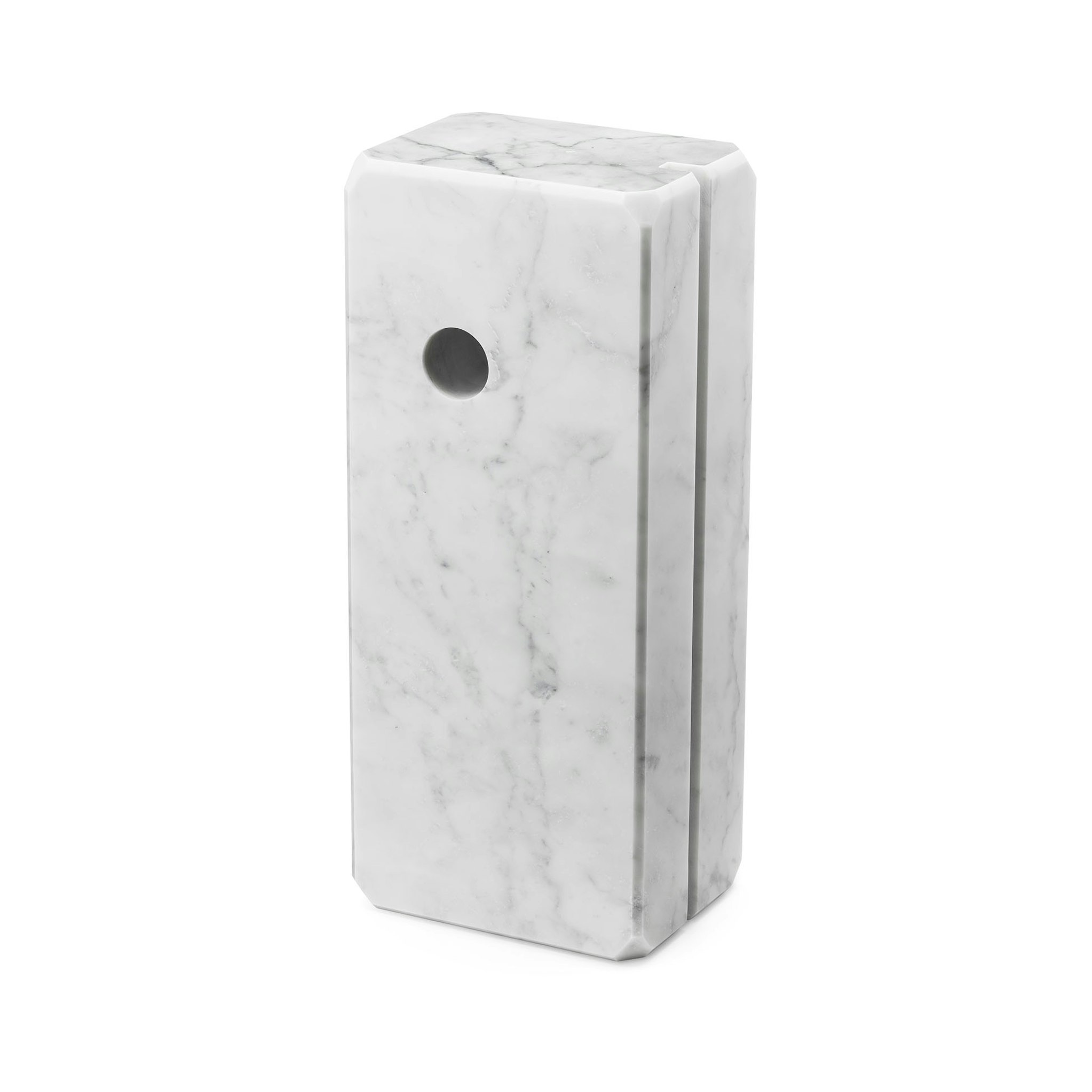

12. Marble base
F0310000

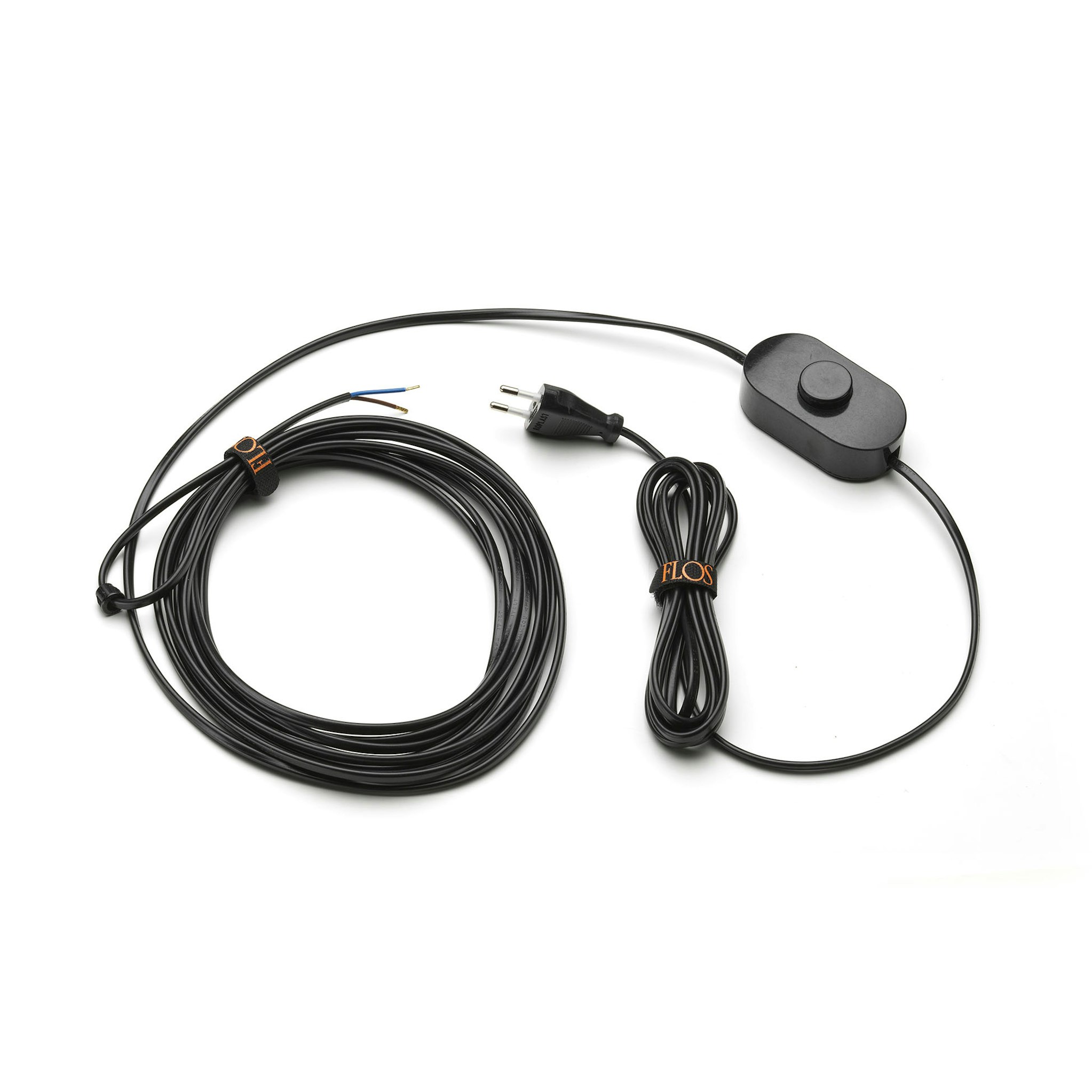

13. Arco Electrical wiring assembly with on-off switch
RF04724

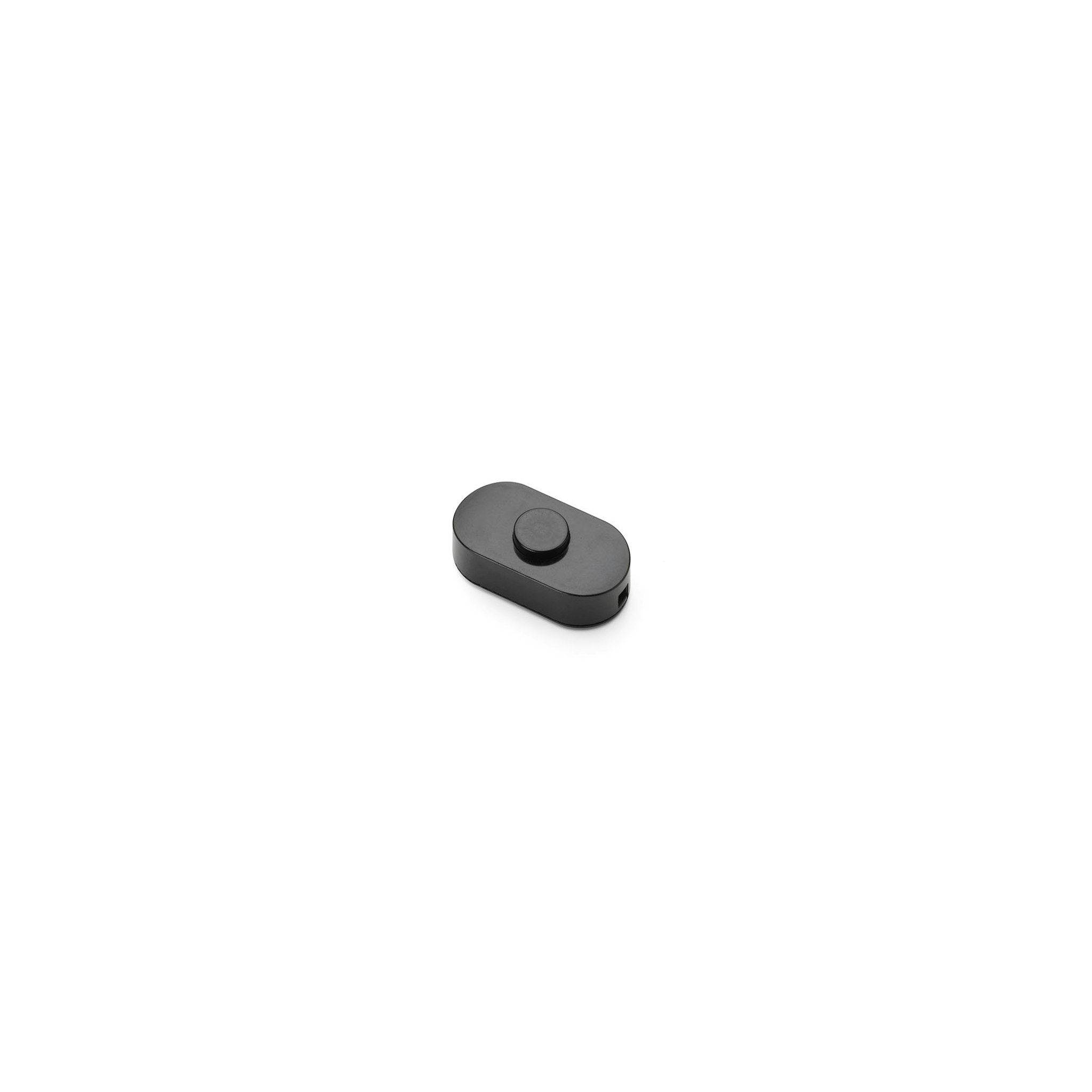

14. Black d/661 on-off switch
RF04392

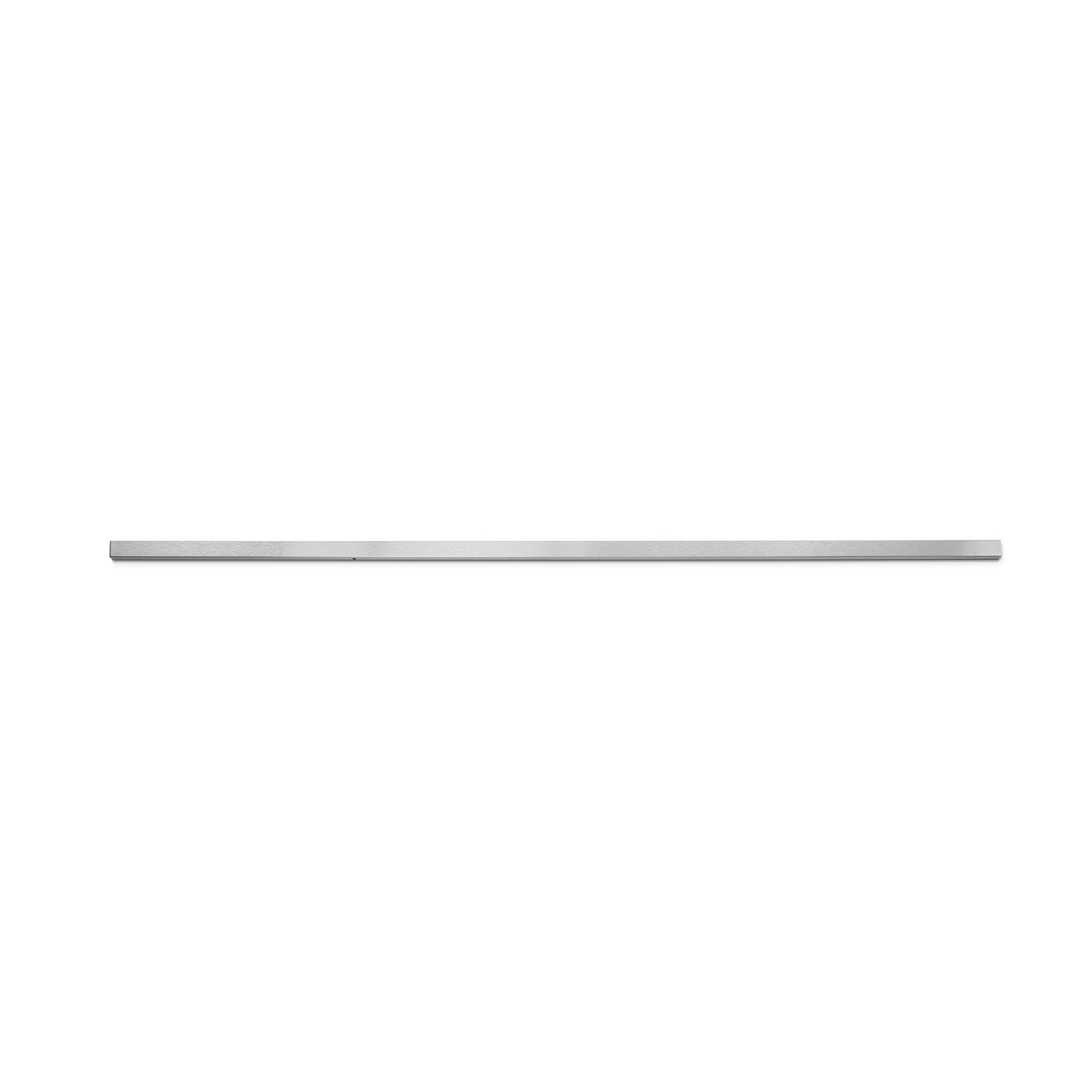

15. Inox stem
RF21041
