Arco

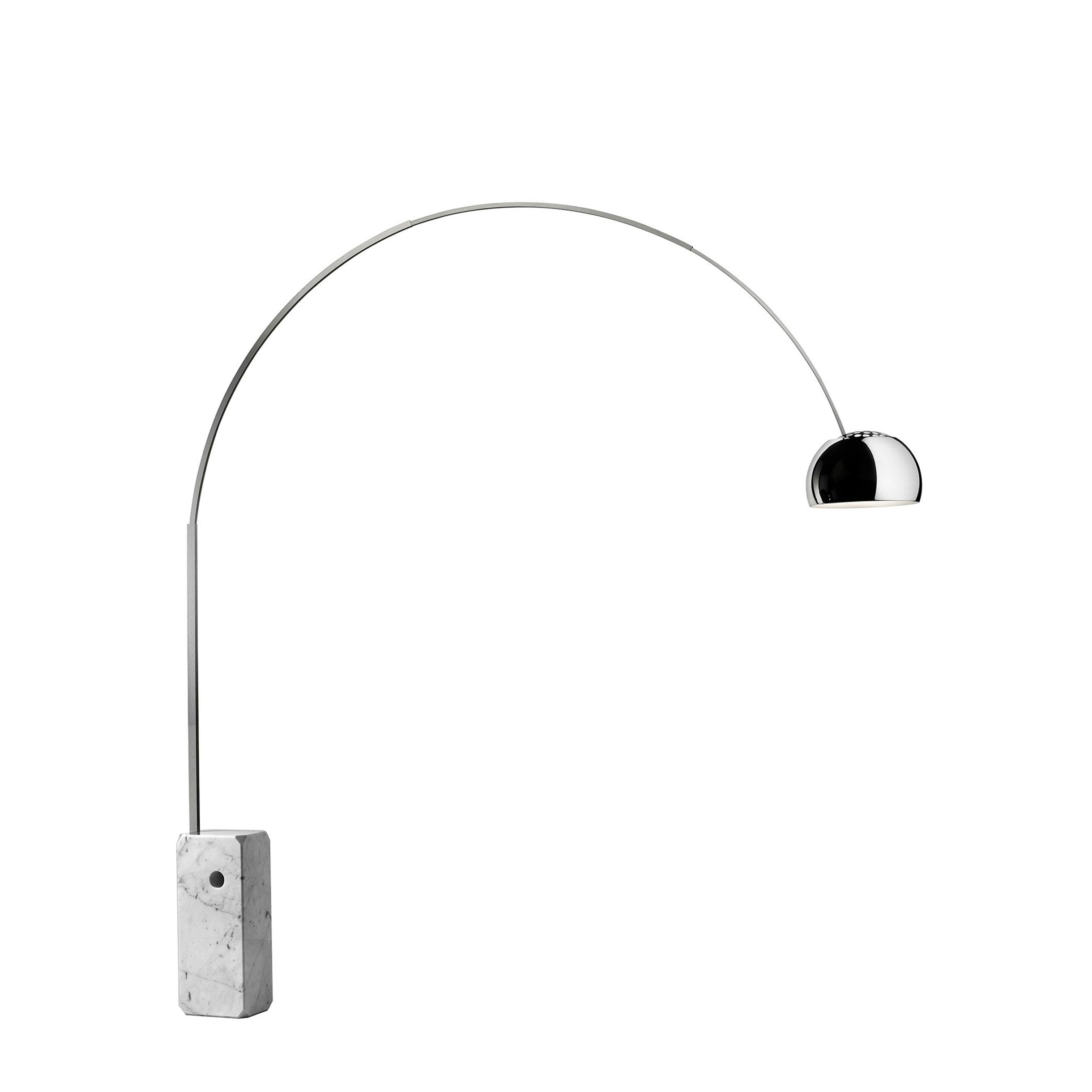

F0303000 SteelArco Led
Designed by Achille and Pier Giacomo Castiglioni, 1962
Floor lamp providing direct light. White Carrara marble base. Satin-finish stainless steel telescopic stem. Pressed, polished and zapon-varnished aluminum swiveling and height-adjustable reflector.
28W - 1224lm - 2700K
Technical Drawing
Main specifications
EAN
8059607000991
Mounting
Floor
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
28
Lumen Output (lm)
1224
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 48V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Colour
Steel
Length (mm)
2200
Cord colour
Black
Cord length (mm)
2300
Net weight (kg)
63.85
Package volume (m3)
0.24
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class D
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
Spare Parts
01.
Black plug assembly kit & 48V driver
RF6600130
02.
Arco Led Switch dimmer 600Ma for new version
RF26383
03.
Arco Led Switch dimmer 400mA assembly for old version
RF0303600
04.
Arco Led Middle electric cable with connectors
RF20805
05.
Marble base
F0310000
06.
Fixing screw with joint
RF0300100
07.
Inox stem
RF21041
08.
Long inox channel
RF02970
09.
Pins and screw set
RF0300200
10.
Medium inox channel
RF02971
11.
Polished reflector
RF00797
12.
Arco Led Small inox channel with grid and led
RF0303400
13.
Arco Led Optical led diffuser with fixing screws
RF0303200
14.
Arco Led Optical led diffuser fixing screws
RF0303300
