Bellhop
F1080020Grey

Bellhop Wall Up

Wall-mounted lamp emitting indirect light. Features a polycarbonate body with a semi-transparent, injection-moulded polycarbonate diffuser that is specially textured to enhance the uniformity of light distribution. High-efficiency LED source which can be replaced on-site by a professional installer at the end of its lifecycle. Designed without glue, Bellhop Wall can be fully separated for repair or recycling, making it a future-proof lighting solution.

17W - 1314lm - 2700K - CRI> 90

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Bellhop_Up
Main specifications
EAN
8059607047828
Mounting
Wall
Environments
Indoor damp location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
17
System power (W)
17
Lumen Output (lm)
1314
Schematic light drawing
F10800XXWBELLHOP-W-UP_17W-LED
Photometric
Lighting type
Direct, Indirect
Light distribution
Symmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
Grey
Length (mm)
150
Net weight (kg)
1.12
Package height (mm)
154
Package width (mm)
225
Package length (mm)
272
Package volume (m3)
0.01
IP internal
44
CE
RG
UL
CCC
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
44

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class G

REPLACEABLE2

Spare Parts

F1080020-bellhop-wall-up-flos-boom

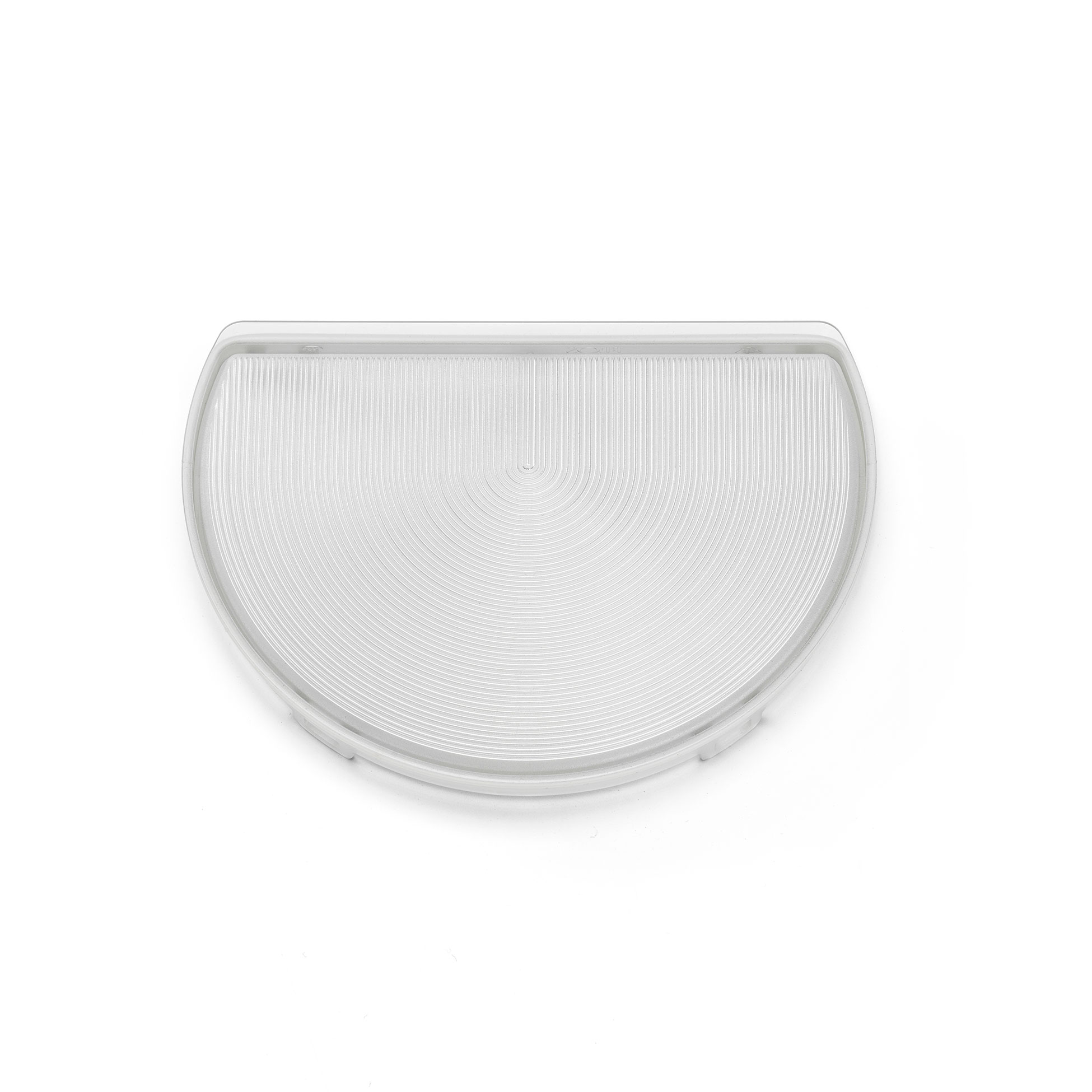

01. Bellhop Wall Up Transparent Difusser
RF32828
02. LED Board for Bellhop Wall Up
RF1080100
x1
Bellhop Wall Up Transparent DifusserRF32828
x1
LED Board for Bellhop Wall UpRF1080100
