Biagio
F0700000 Marble

Biagio

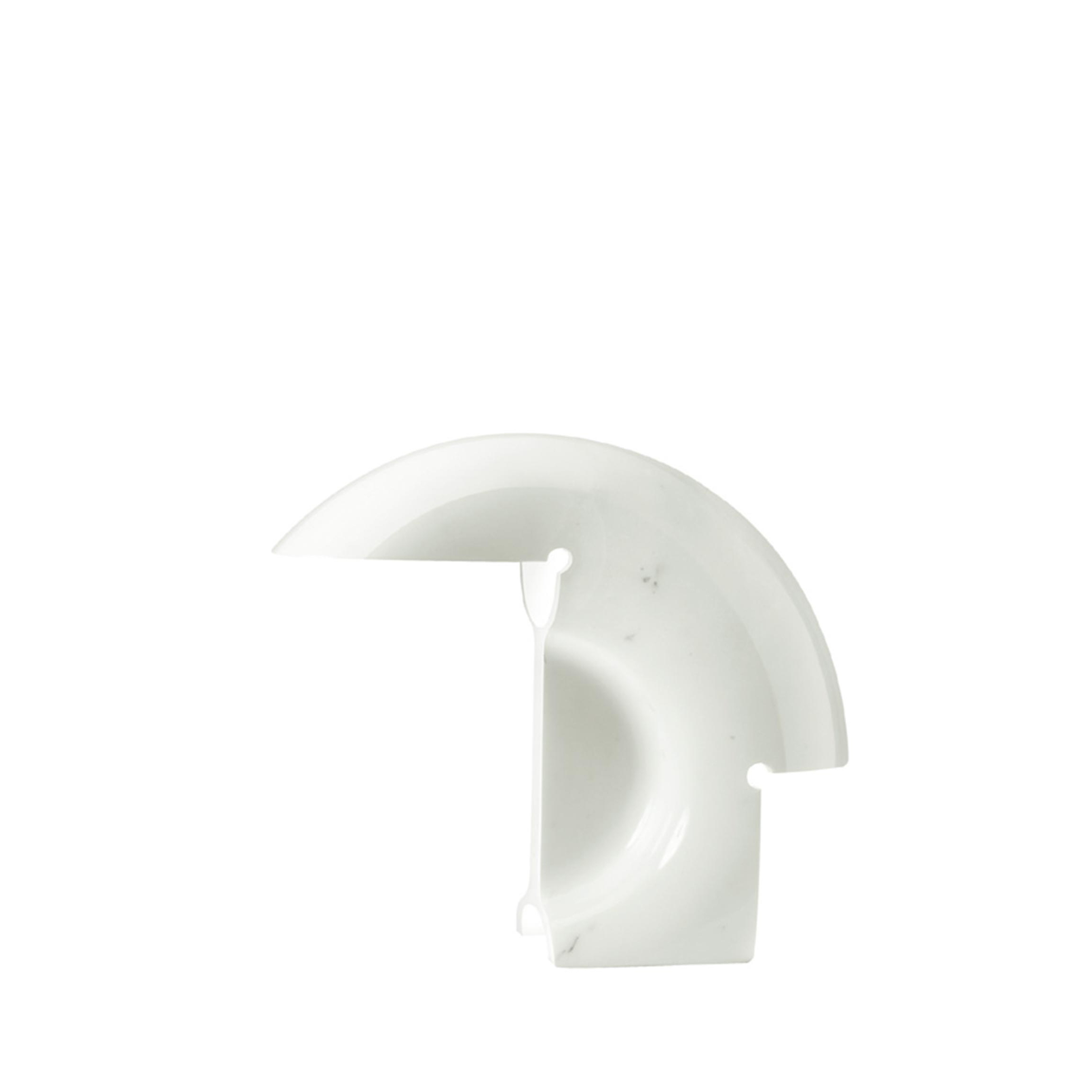

Table lamp providing direct light. Lamp body carved from a single block of Carrara marble.

Halogen - 70W

Find a Flos store
Technical Drawing
biagio-table-scarpa-flos-F0700000-spech-tech-02-300x263-2
Main specifications
EAN
8059607014257
Mounting
Table
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
70
Schematic light drawing
F0700000WBIAGIO_100W-HL
Photometric
Light distribution
Asymmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Switch Integrated (Remote Dimmable)
Plug type
Type C
Batteries inside
No
Physical
Colour
Marble
Length (mm)
390
Cord colour
White
Cord length (mm)
2200
Net weight (kg)
7.5
Package height (mm)
430
Package width (mm)
220
Package length (mm)
460
Package volume (m3)
0.04
IP internal
20
CE
EAC
CMIM
ENEC
IECEC
RETILAP

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Spare Parts

F0700000-biagio-flos-boom
01. Biagio White Electrical Wiring EU
RF04727
