Bilboquet
F0995035 TomatoBilboquet
Designed by Philippe Malouin, 2023

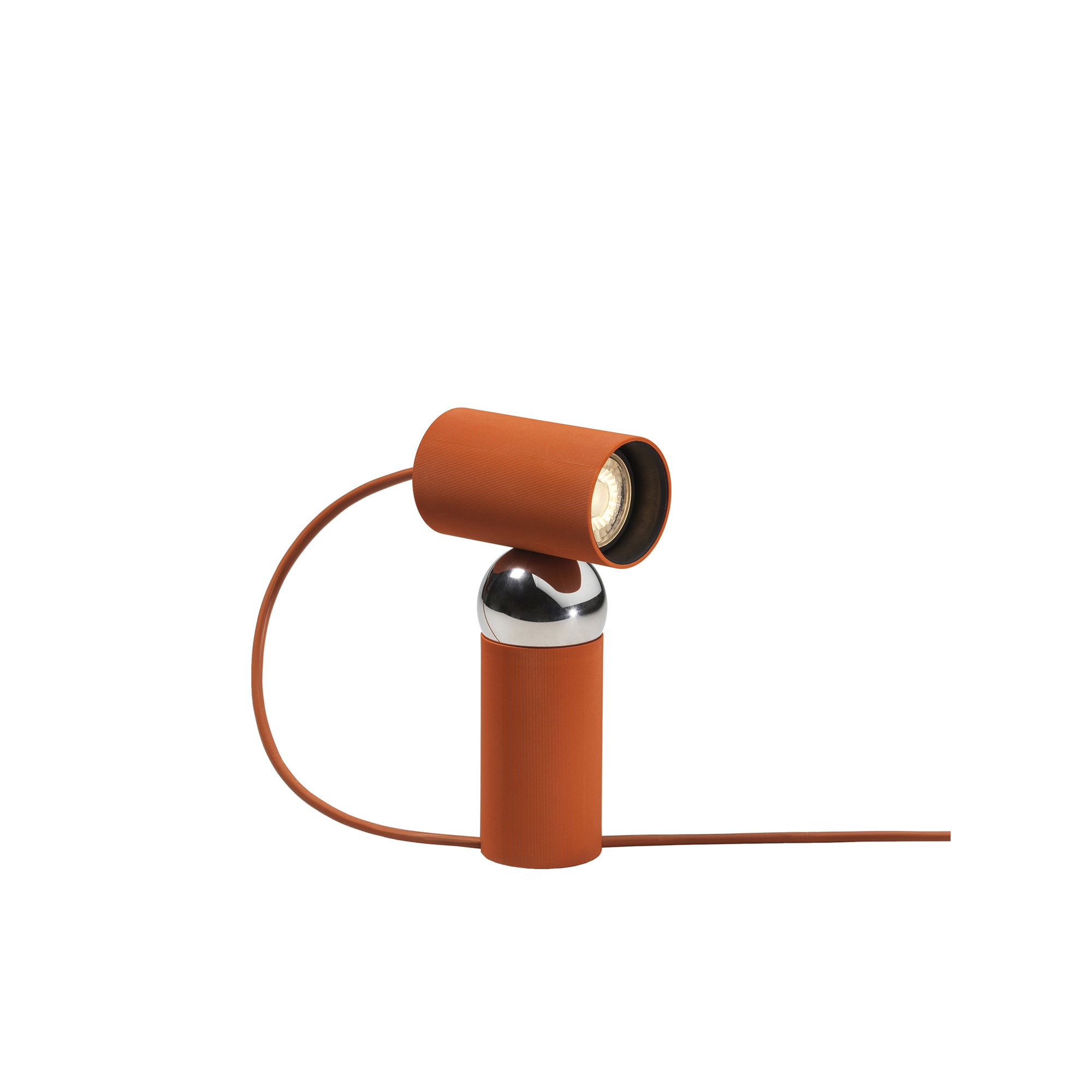

Table lamp with adjustable head. Integrated LED bulb and cut-off providing direct lighting . Body made of a special pigmented polycarbonate deriving from a by-product of paper production rather than from petroleum. Adjustability through steel sphere treated with protective layer deposited in PVD. Useful length of the cable 2 mt. The cable can be adjusted and locked in place through a special slit in the base of the lamp. The product has been designed according to the ISCC standards and it is assembled with total absence of glued components so that it can be completely separated for future recyclability.
LED retrofit - 8W
Technical Drawing
Main specifications
EAN
8059607059203
Mounting
Table
Environments
Indoor dry location
Light source type
Bulb
Light sources included
Yes
Lamp category
LED retrofit
Lamp holders
GU10
Number of lamps
1
Power (W)
8
System power (W)
7.5
Schematic light drawing
Photometric
Light distribution
Symmetric
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
No
Dimming interface
Switch Integrated (Not Dimmable)
Plug type
Type C
Batteries inside
No
Physical
Colour
Tomato
Length (mm)
104
Cord colour
Tomato
Cord length (mm)
2000
Net weight (kg)
1.8
Package height (mm)
95
Package width (mm)
300
Package length (mm)
380
Package volume (m3)
0.01
IP internal
20
Spare Parts
01.
Red electric mounting with On/Off switch and diffuser
RF0990035
02.
Sphere with pin
RF36760
03.
Red base assembly
RF0991035
