Black Flag
F1090031 Matte Black

Black Flag

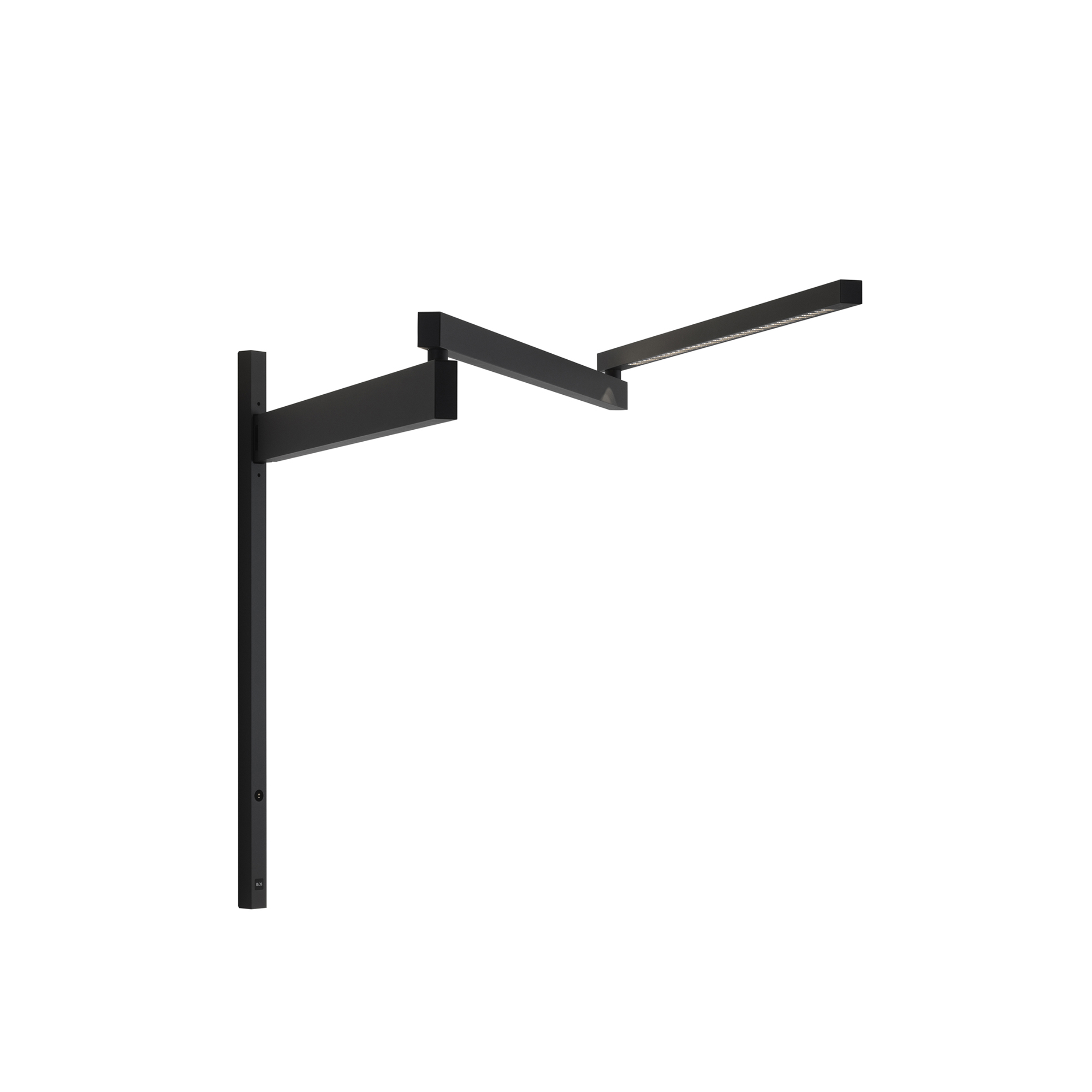

Black Flag is an extendable wall light that offers flexibility of illumination thanks to the expanding aluminium arm reaching up to 3.5meters from a wall-mounted frame of the same material. Wall lamp and sculptural centre piece, Black Flag embodies Grcic’s industrial design expertise and demonstrates the experimental opportunities of his approach mixed with Flos’ technical expertise. The luminaire provides direct and indirect lighting. Greater Up/Down light intensity can be controlled through the dedicated touch buttons featured in the stem. Touch panel control integrated on the lamp arm for On-off and Up/Down dimming unified with on board button. Possibility of wiring from a light point or through an IEC plug. Color temperature 2700°K CRI 90.

75W - 2700K - CRI> 90

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Black_Flag
Main specifications
EAN
8059607058138
Mounting
Wall
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
75
System power (W)
75
Schematic light drawing
35317_ASS-ASTA-SUPERIORE-UP-DOWN_FLAG
Photometric
Lighting type
Indirect, Direct
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable
Dimming interface
Dimmer Integrated
Physical
Colour
Matte Black
Cord colour
Black
Canopy colour
Black
Canopy length/diameter (mm)
1200
Canopy width (mm)
43
Canopy height (mm)
43
Net weight (kg)
17
Package volume (m3)
0.08
IP internal
20
IECEE-CB
CMIM Morocco
EAC
CE
RETILAP
UKCA
03 - Italy
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE4 Replaceable (LED only) light source by an end-user

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F1090031-black-flag-flos-boom
01. Driver 96W 48V 220-240V
RF32405
02. Black Flag Eu cover assembly
RF35308
03. Black Flag up stripe assembly
RF35321
04. Black Flag down 2700°K stripe assembly
RF35320
