Button
F3190009White

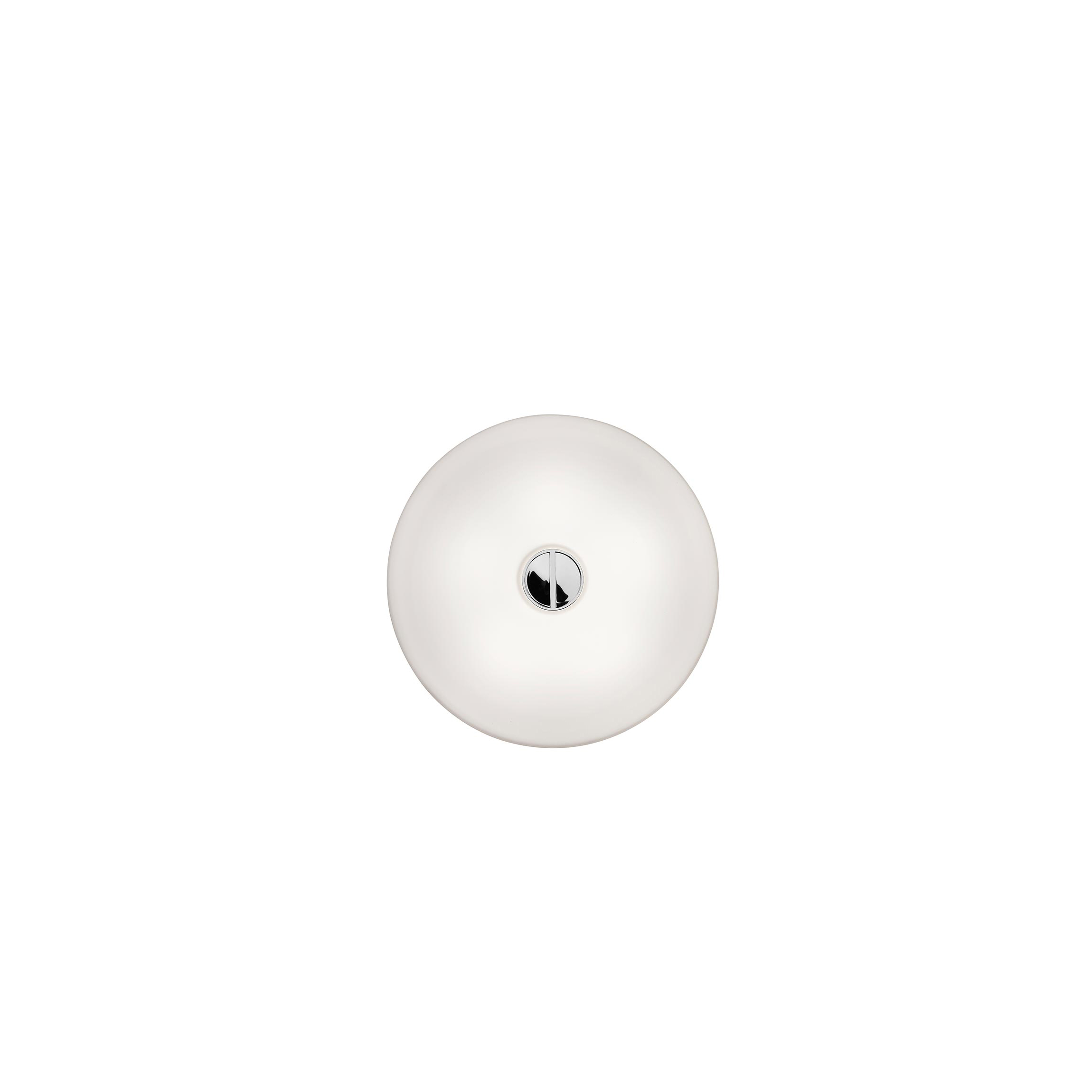

Button HL

Ceiling- or wall-mounted lamp emitting diffused light for indoor use. Hand-blown opal ply glass diffuser with acid finish. Sheared, deep-drawn steel wall/ceiling attachment with white galvanised finish. Internal steel reflector. Closing cover in injection-moulded technopolymer.

Halogen - 5 x 40W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Button-HL
Main specifications
EAN
8059607018866
Mounting
Ceiling, Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
G9
Ilcos
HSGS
Number of lamps
5
Power (W)
40
Schematic light drawing
button-hl-ceiling-wall-lissoni-flos-F3190009-curva-fotometrica-01
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
470
Net weight (kg)
6
Package height (mm)
175
Package width (mm)
555
Package length (mm)
555
Package volume (m3)
0.05
IP internal
40
CE
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Autoprotected Lamp
40

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

x5
NOT INCLUDEDLED BiPin Lamp G9 3,2W 2700K DimmableRF36378
x5
NOT INCLUDEDLED Lamp 2W 240lm G9 220-240 2700K T13 Non DimmableRF26520

Spare Parts

F3190009-button-hl-flos-boom
01. Chrome locking cap assembly
RF3190100
02. Button Silicone Seal Shore Transparent 62x13x1,5
RF15719
03. Button Opal glass diffuser for new version
RF3190300
04. Button G9 Lampholder
RF37164
Thumbnail
x1
Chrome locking cap assemblyRF3190100
x1
Button Silicone Seal Shore Transparent 62x13x1,5RF15719
Thumbnail
x1
Button Opal glass diffuser for new versionRF3190300
x1
Button G9 LampholderRF37164
