C-ME
FA100176118 Opal

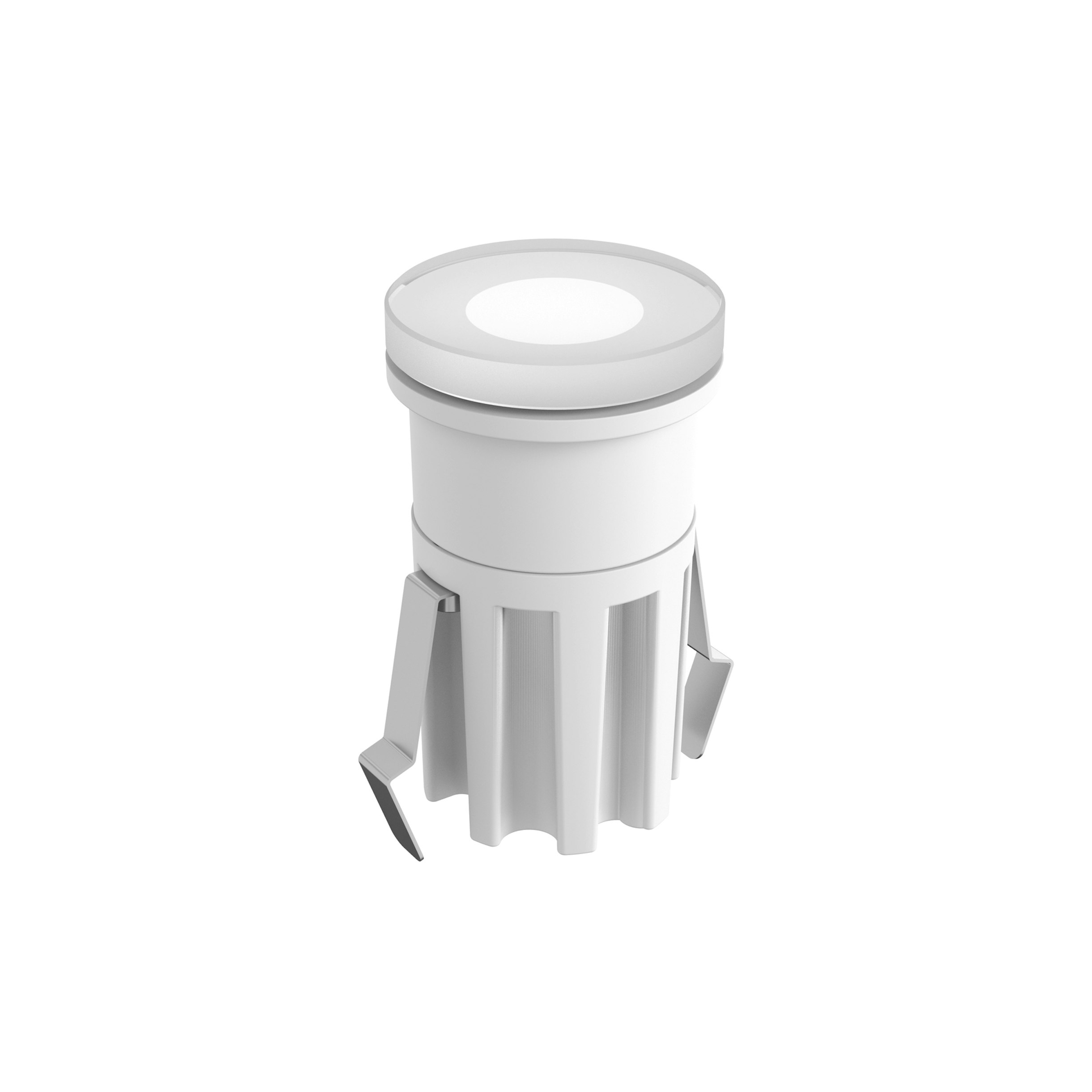

C-Me Round 40 Opal
New
Designed by FLOS Outdoor, 2008
LED source included. 24V dc remote electric power supply to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Glass with opal diffuser. Adjustable light intensity.
23lm - 3000K - CRI> 80 - Beam° 110
Also available in:
Technical Drawing
Main specifications
EAN
8054793604992
Mounting
In-ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
System power (W)
0.3
Source flux (lm)
44
Lumen Output (lm)
23
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
110
Beam angle C90-270 (º)
110
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency
No
Physical
Colour
Opal
Orientation
Fixed
Net weight (kg)
0.16
Package height (mm)
134
Package width (mm)
70
Package length (mm)
83
IP internal
67
IP external
66
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance'
Dimmable version on request
Replaceable (LED only) light source by a professional
