C-ME
FA100174122 Opal

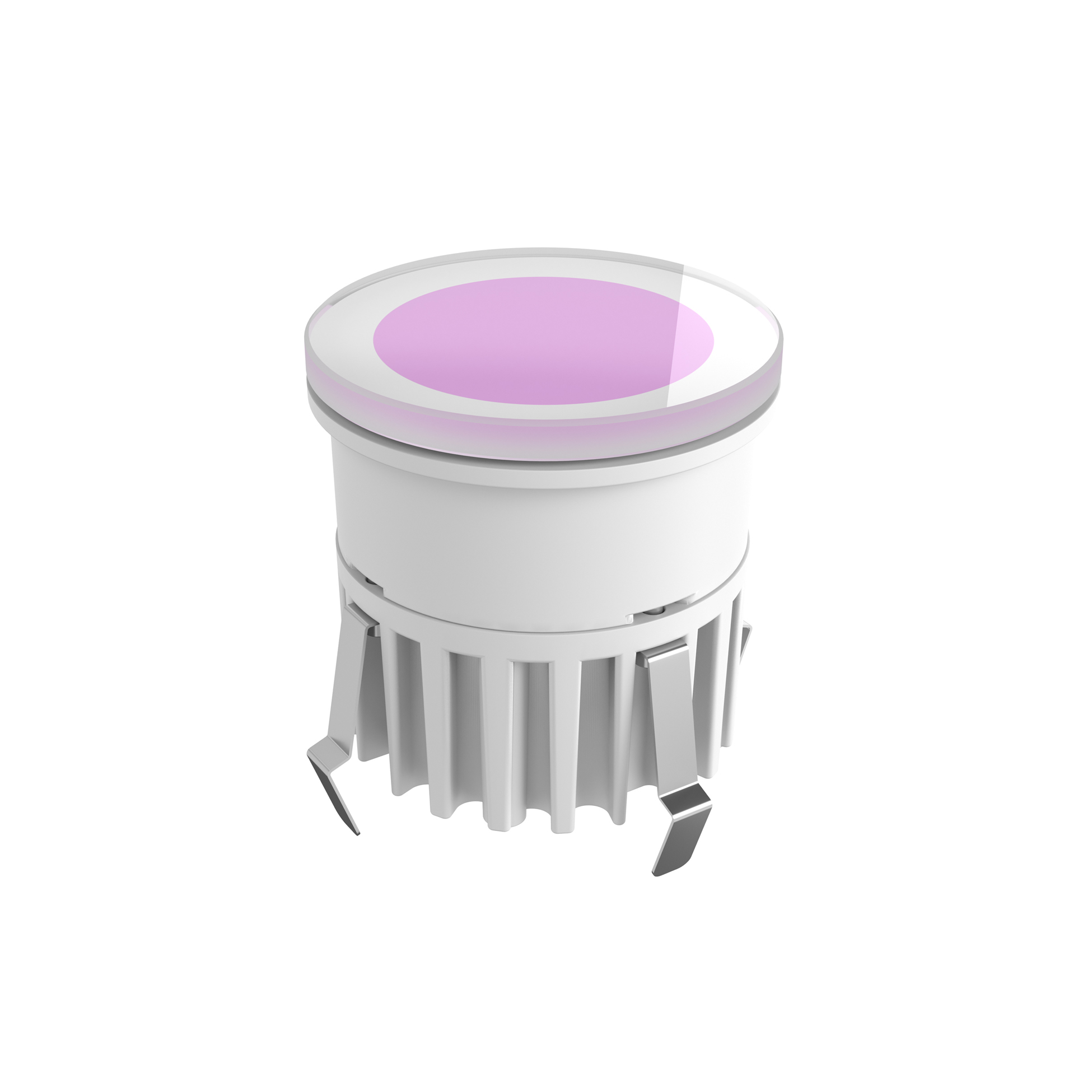

C-Me Round 70 Opal Rgb
New

LED source included. Remote electric power supply with DMX 3chx350mA interface, to be ordered separately. Requires a junction box to be ordered separately. The luminaire is equipped with a protruding, neoprene, 200 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Extra clear transparent glass.

3W - RGBK

Find a Flos store
Also available in:
Technical Drawing
DR-C-ME-70-ROUND-OPAL-RGB
Main specifications
EAN
8054793604947
Mounting
In-ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
3
System power (W)
3.4
Photometric
Light distribution
Symmetric
CCT (K)
RGB
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
24
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Dimmable DMX
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency
No
Physical
Colour
Opal
Orientation
Fixed
Net weight (kg)
0.43
Package height (mm)
134
Package width (mm)
134
Package length (mm)
83
IP internal
67
IP external
66
IECEE-CB
EAC
CE
Risk 1
66
IK08 - 5.00 Joule
Notes

Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance'

Dimmable version on request

Download

Tech spec pdf
Mounting instructions

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

REPLACEABLE2 Replaceable (LED only) light source by a professional

Accessories & Power Supply

Required (2)
Optional (4)
