F1316006-300 Grey

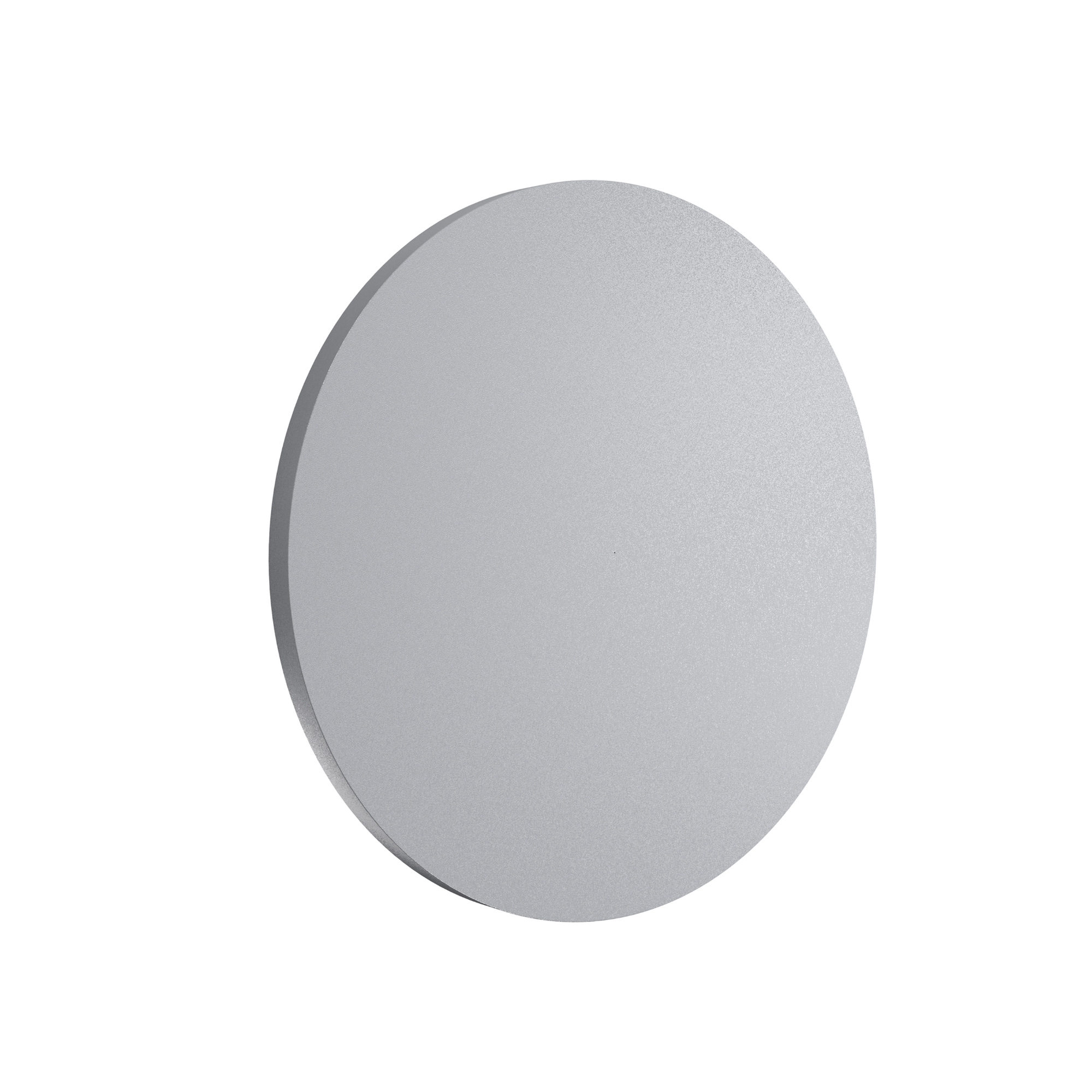

Camouflage 240 mm Dimmable DALI Grey

Designed by Piero Lissoni, 2016

Wall-mounted lamp emitting radial diffused light. Circular front panel in multiple stone finishes. Dissipating aluminum body with diffuser in transparent polycarbonate. Parabolic reflector in white polycarbonate. IP65-rated. Integrated 220–240 V power supply. Outgoing neoprene cable included. Version 110 V upon request.

Designed by Piero Lissoni, Camouflage blends architecture and light in a refined play of presence and absence. Switch off the light and, as if by magic, the lamp disappears. Switch it on and all you see is the glow: a subtle halo that enhances surfaces without revealing its source. A range of sophisticated stone finishes allows the design to blend in with the walls, giving the lamp its name, or stand out as an elegant accent.

898lm - 3000K - CRI> 80 - Beam° 151

Find a Flos store

Technical Drawing

Main specifications

EAN

8054793587141

Mounting

Wall

Light source type

LED

Light sources included

Yes

LED type

Power LED

Number of lamps

System power (W)

Lumen Output (lm)

898

Schematic light drawing

Photometric

Lighting type

Direct

Light distribution

Symmetric

CCT (K)

3000

CRI>

Beam angle C0-180 (º)

151

Beam angle C90-270 (º)

151

Electrical

Insulation class

Frequency (Hz)

50/60

Main voltage (Vac)

220-240

Power supply

Integrated

Dimmable

Yes

Power supply type

Dimmable DALI 1

Dimming interface

Dimmer Integrated

Emergency

Physical

Colour

Grey

Trim

Orientation

Fixed

Net weight (kg)

1.3

Package height (mm)

105

Package width (mm)

298

Package length (mm)

298

Package volume (m3)

0.01

IP internal

Notes

We recommend using a connection system with a degree of protection greater than or equal to the degree of protection of the luminaire.
During the installation and the maintenance of the fixtures it is important to be careful and avoid damages on the paint coating.
Damages on the coating exposed to outdoor conditions or water, could cause corrosion.
Chemical substances affect the anticorrosion covering protection.
For LED fixtures, there is evidence that most of the damages are connected to electrical effects related to the insulations, which cause destructive electrical discharges
These effects are frequently caused by:
• over voltage coming from the mains’ network where fixture is connected.
• electrostatic discharge (ESD) coming from the environment.
The use of a protective device against the overvoltage on the electrical installation is warmly suggest this helps to reduce the intensity of some of these phenomenon and prevent irreversible damages. The selection of the type of device to be used must be adjust on the electrical plant.
