Captain Flint
F1530030 Anthracite/Black MarbleCaptain Flint
Designed by Michael Anastassiades, 2015
Floor lamp providing adjustable direct light. Painted steel or brushed brass, stem and metal spinning cone. Opal photoengraved PC diffuser by injection molding. White Carrara or Black Marquina marble base. Power cord length 260 cm, with foot dimmer switch that provide ON-OFF functions and 10-100% light adjustment. Plug-in power supply with interchangeable plugs
20W - 554lm - 2700K
Also available in:
Technical Drawing
Main specifications
EAN
8059607001431
Mounting
Floor
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
20
Lumen Output (lm)
554
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Roto symmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 48V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Colour
Anthracite/Black Marble
Length (mm)
320
Cord colour
Black
Cord length (mm)
2500
Net weight (kg)
8.2
Package volume (m3)
0.22
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class D
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
Spare Parts
01.
Captain Flint Black marble base
F1532030
02.
Black plug assembly kit & 48V driver
RF6600130
03.

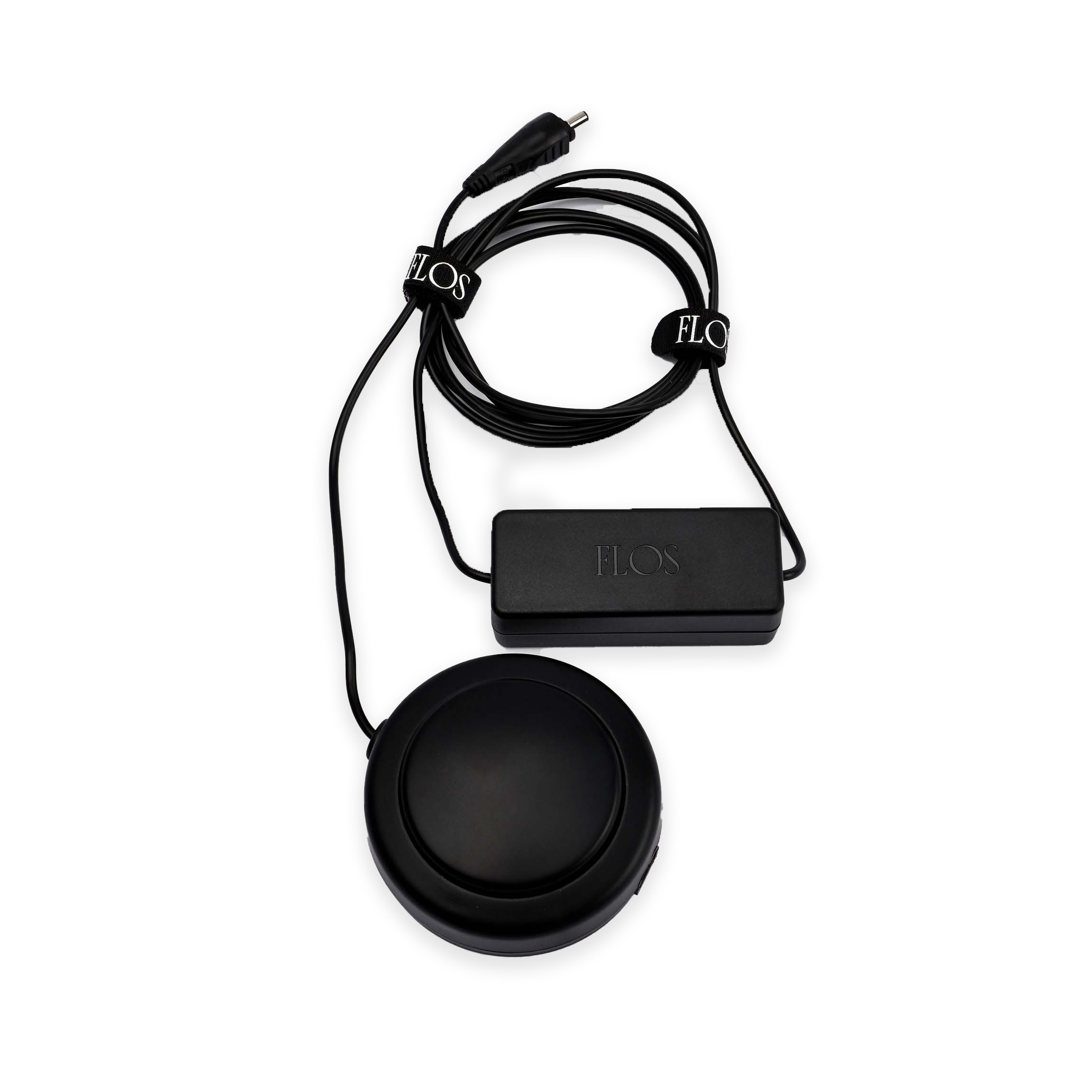

Captain Flint Switch dimmer 400Ma
RF26382
04.
Captain Flint Screws with allen key and feet pads
RF1530100
