Captain Flint

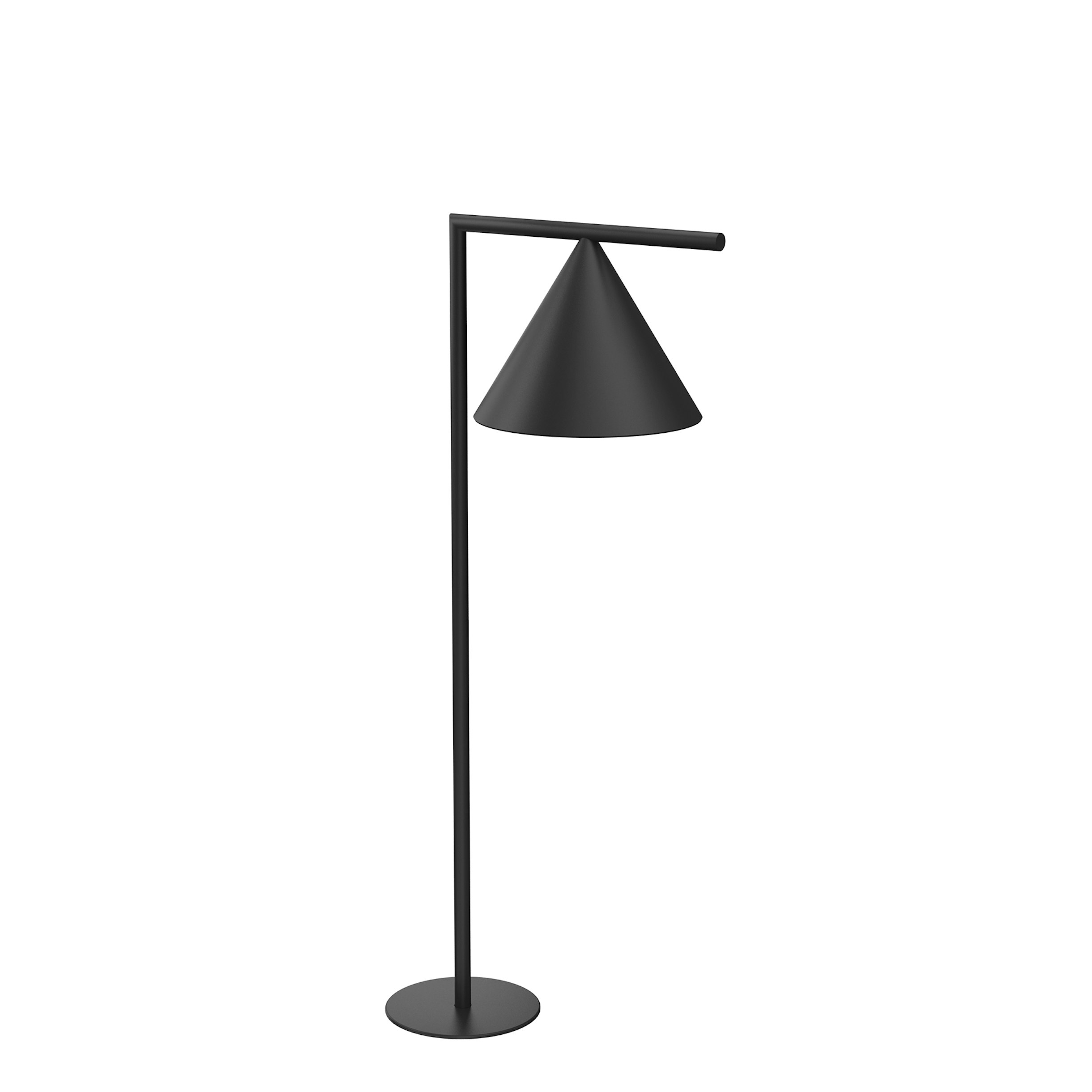

F011D30A030 BlackCaptain Flint Outdoor B1
Designed by Michael Anastassiades, 2015
Integrated ON/OFF or dimmable 220-240V power supply. For mains connection, the light source is equipped with watertight cable. Box for ground or cobblestone installations requiring concrete plinth is available upon request. 2200K available on request.
652lm - 3000K - CRI> 80 - Beam° 112
Technical Drawing
Main specifications
EAN
8054793215198
Mounting
Ground
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
System power (W)
9.5
Source flux (lm)
1026
Lumen Output (lm)
652
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
112
Beam angle C90-270 (º)
112
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Physical
Colour
Black
Orientation
Adjustable
Transversal tilting (°)
270
Net weight (kg)
2.23
Package height (mm)
1070
Package width (mm)
460
Package length (mm)
320
Package volume (m3)
0.16
IP internal
65
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
