Captain Flint
F011W20D059 Brass FinishCaptain Flint Outdoor W1 Dimmable DALI
Designed by Michael Anastassiades, 2015

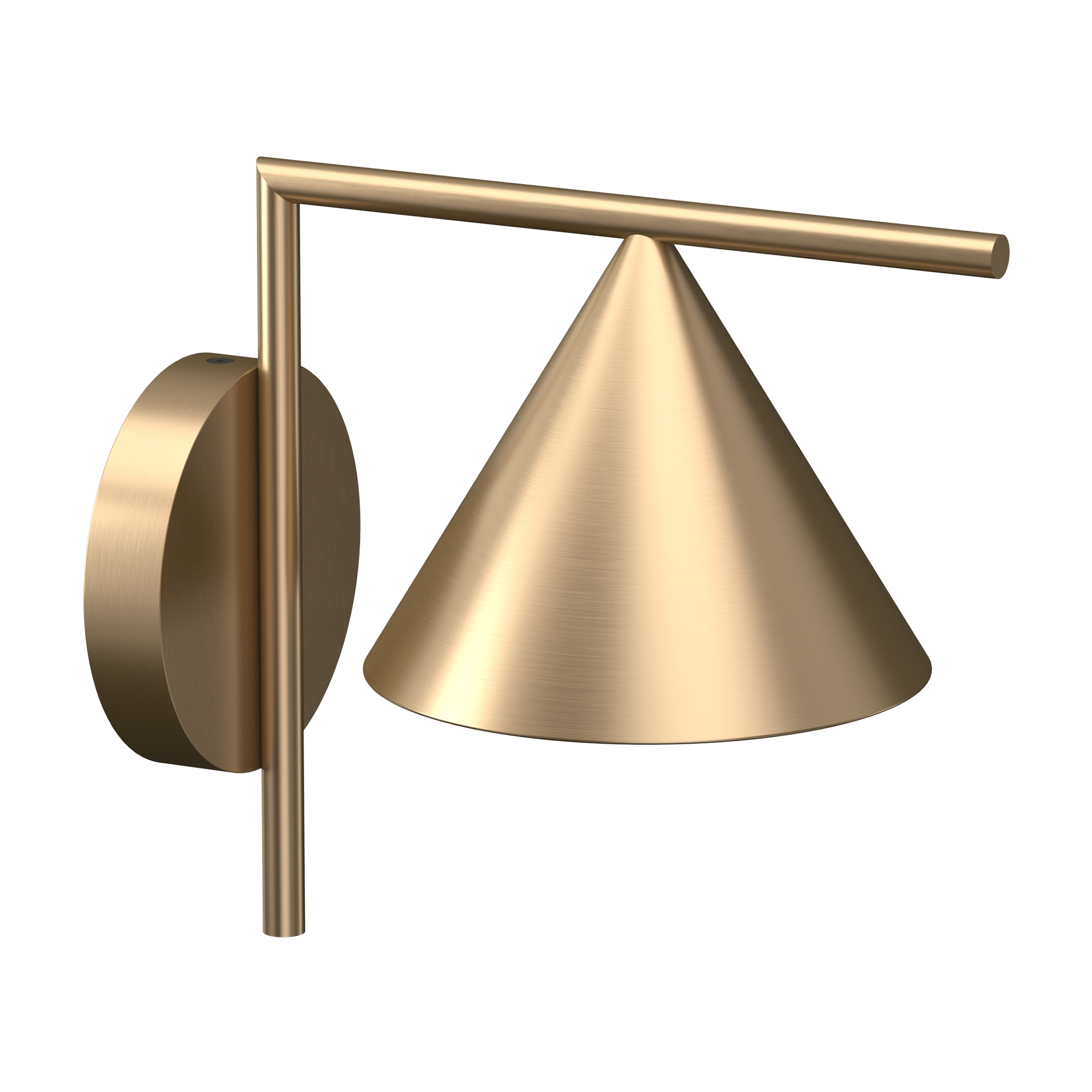

Luminaire for wall-mounting with diffuse light emission and fixed head. LED light source included. Integrated 220-240V ON/OFF or 1-10V/DALI dimmable electrical power. Connection is quickly ensured in the rose with the plug & play electrical connection and the IP68 connector included. Clamp bracket included. 110V version upon request.
629lm - 2700K - CRI> 80 - Beam° 112
Technical Drawing
Main specifications
EAN
8054793216997
Mounting
Wall
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
LED array
Number of lamps
1
System power (W)
9.5
Source flux (lm)
989
Lumen Output (lm)
629
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
2700
CRI>
80
Beam angle C0-180 (º)
112
Beam angle C90-270 (º)
112
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Power supply type
Dimmable DALI 1
Precabled
NO
Emergency
No
Batteries inside
No
Physical
Colour
Brass Finish
Trim
No
Orientation
Fixed
Spot diameter (mm)
208
Length (mm)
336
Net weight (kg)
2.1
Package height (mm)
257
Package width (mm)
406
Package length (mm)
406
Package volume (m3)
0.04
IP internal
65
Notes
110V version upon request.
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
