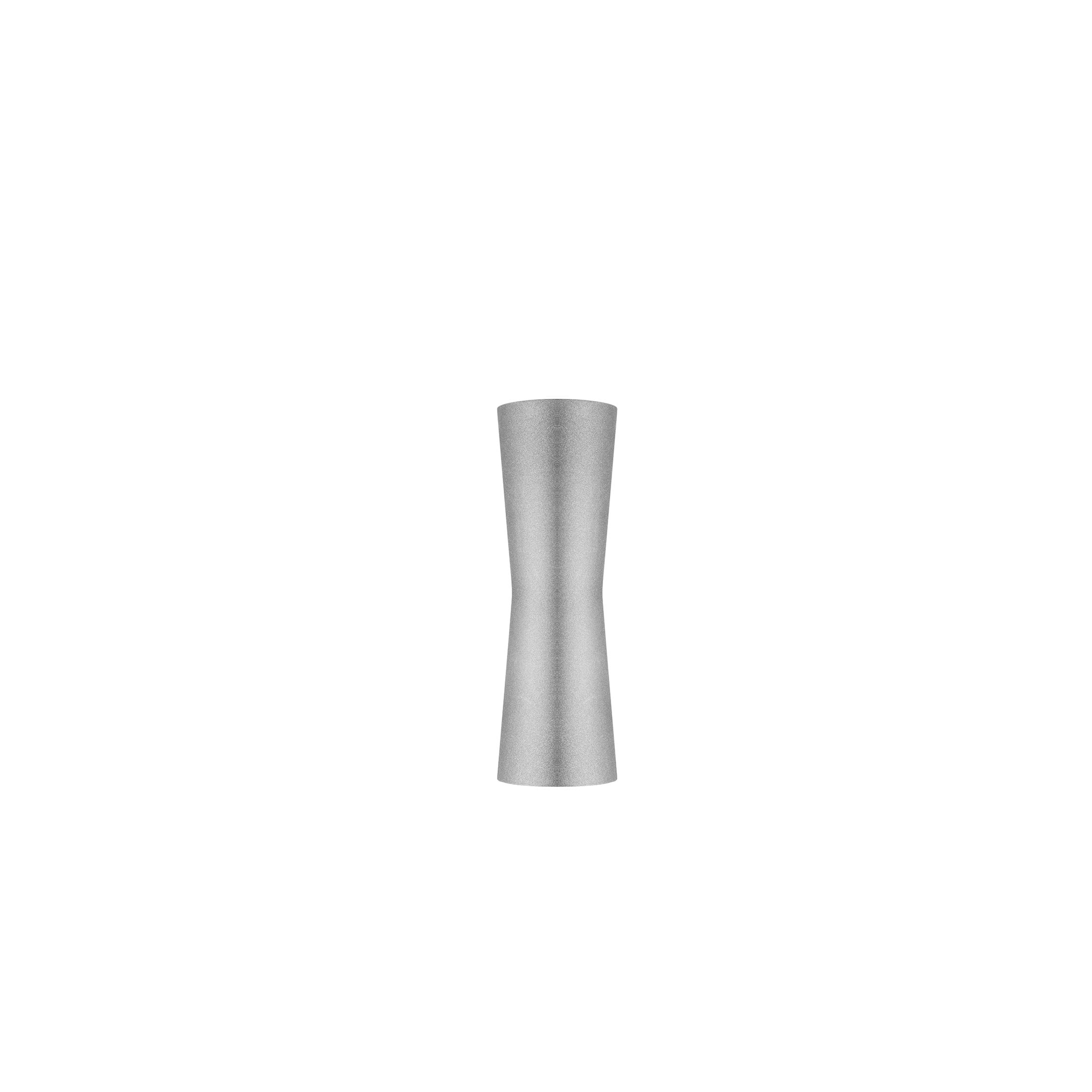

Clessidra
F1584006 Grey

Clessidra 40°+40°

Diffused direct/indirect-light wall lighting device. Body obtained by means of aluminium pressofusion and diffusers in PMMA. Aluminium wall attachment with cover in PA66. Available in white-painted or chrome-plated for indoor version and dark brown-painted or dark gray-painted for outdoor version. High-efficiency lenses specially designed for the application, non-replaceable. Wide range (100-240Volt) power pack integrated in the body. Level IP55

10W - 601lm - 3000K

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Clessidra
Main specifications
EAN
8059607001530
Mounting
Wall
Environments
Indoor wet location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
10
Lumen Output (lm)
601
Schematic light drawing
F15840XXWCLESSIDRA-40_10W-LED
Photometric
Lighting type
Indirect, Direct
Light distribution
Symmetric
CCT (K)
3000
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Batteries inside
No
Charging min time
NO
Physical
Colour
Grey
Length (mm)
76
Net weight (kg)
1.1
IP internal
55
CE
RG
EAC
CMIM
UKCA
RETILAP

Download

Tech spec pdf
Mounting instructions
Spare Parts

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class E

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F1584006-clessidra-outdoor-flos-boom
01. Clessidra Wall attachment and internal lamp body 40°+40°
F1582030
02. Grey external clessidra lamp body
F1580006
03. Screws and tool kit for clessidra external lamp body
RF1580100
