Constant current power supply 20W, 220-240V - 50/60Hz with programmable output current via DIP switch. 100mA - 5.8W / 150mA - 8.3W / 200mA - 10.8W / 250mA - 13.2W / 300mA - 15.6W / 350mA - 18.1W / 400mA - 20.6W / 450mA - 23W / 500mA - 22.9W / 550mA - 2...

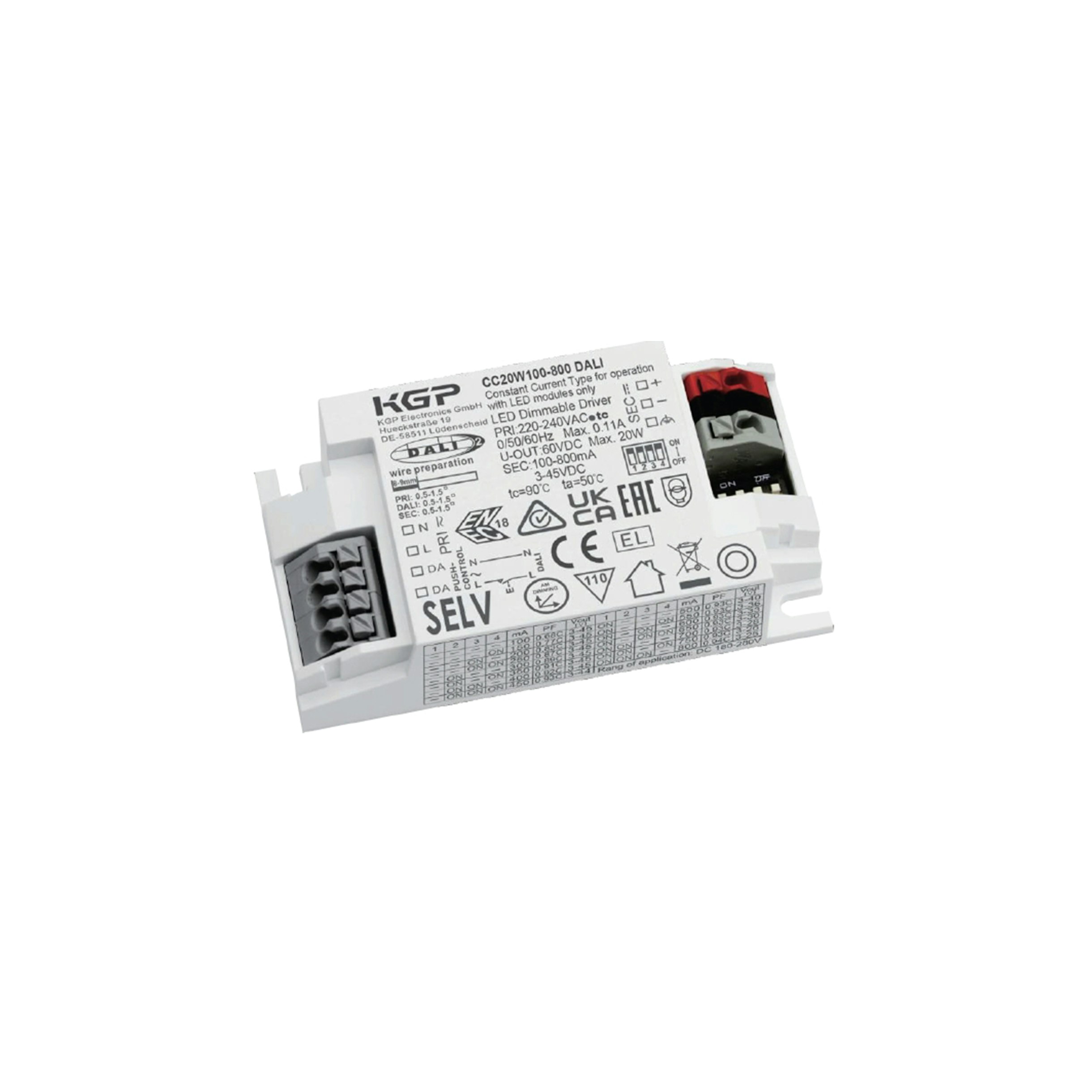

Constant current power supply 20W, 220-240V - 50/60Hz with programmable output current via DIP switch. 100mA - 5.8W / 150mA - 8.3W / 200mA - 10.8W / 250mA - 13.2W / 300mA - 15.6W / 350mA - 18.1W / 400mA - 20.6W / 450mA - 23W / 500mA - 22.9W / 550mA - 22.7W / 600mA - 23W / 650mA - 22.6W / 700mA - 23.2W / 750mA - 23W / 800mA - 23.5W. DALI2 - Push Dim dimmable.
Technical Drawing
Main specifications
Power (W)
23.5
Electrical
Frequency (Hz)
50/60
Main voltage (Vac)
230
LED current (mA)
150 – 800
Power supply
Remote
Power supply type
Dimmable DALI 2, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Precabled
No
Physical
IP internal
20
