Coordinates
F1889033Argent

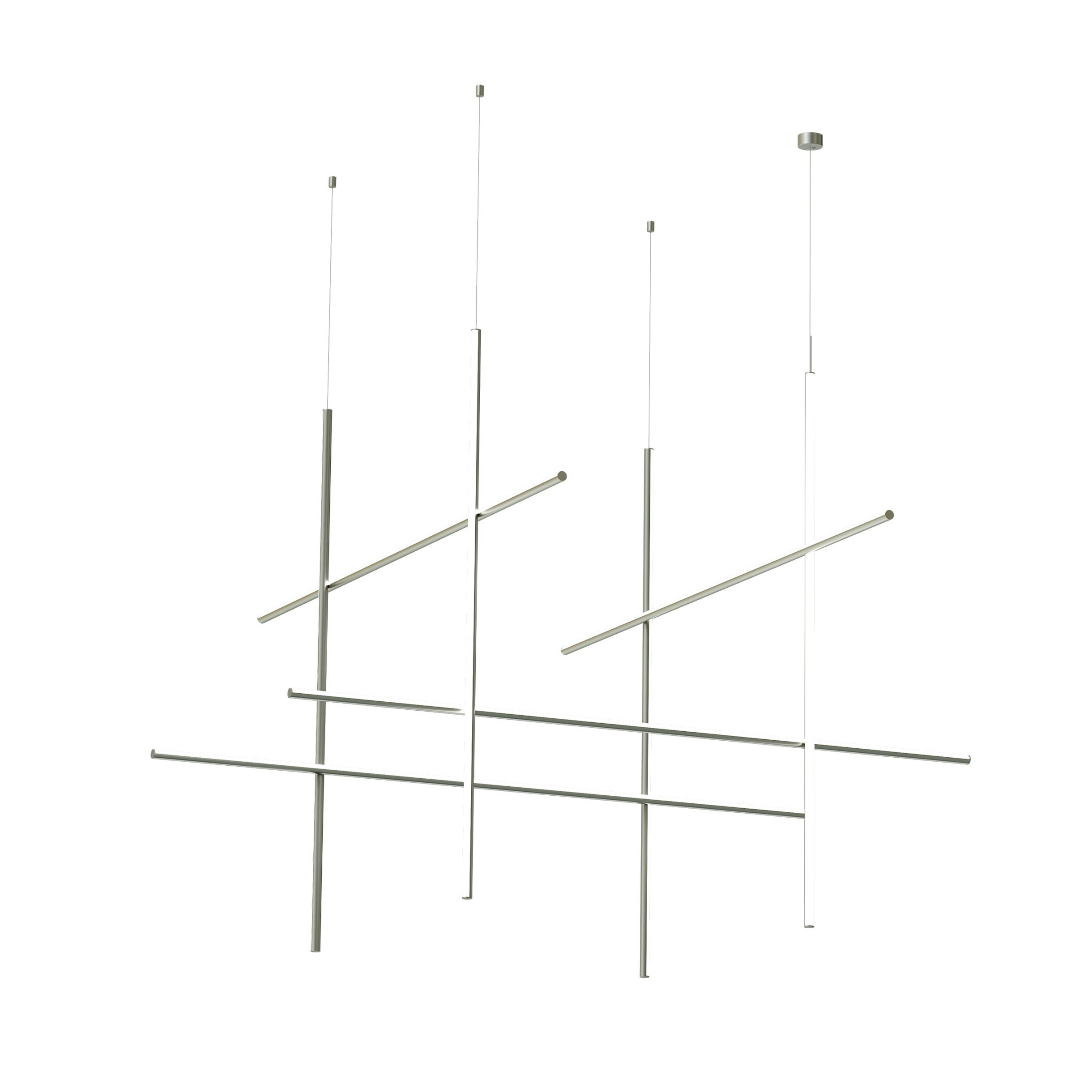

Coordinates Module Suspension CLIII

Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.

180W - 10230lm - 2700K - CRI> 90

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Coordinates-Module_CLIII
Main specifications
EAN
8059607037683
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
180
Lumen Output (lm)
10230
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
48
Power supply
Remote excluded
Power supply type
Electronic 48V
Batteries inside
No
Physical
Colour
Argent
Length (mm)
1770
Cord colour
Clear
Cord length (mm)
2400
Canopy colour
Argent
Canopy length/diameter (mm)
61
Canopy height (mm)
29
Net weight (kg)
6
Package volume (m3)
0.05
IP internal
20
CE
RG
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD

Technical Drawings

3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2

Accessories & Power Supply

Optional(2)

Spare Parts

F1889033-coordinates-module-suspesion-clIII-flos-boom
01. Coordinates S CL. III Assembly Ceiling Rose Cover Argent
RF1874133
02. Coordinates Suspension Module Rod Assembly F1340 SA-32
RF30940
x1
Coordinates S CL. III Assembly Ceiling Rose Cover ArgentRF1874133
x1
Coordinates Suspension Module Rod Assembly F1340 SA-32RF30940
