F1860044 Anodized Champagne

Coordinates Suspension 1

Suspension lighting system emitting diffused light. Composed of horizontal and vertical luminaires arranged in a grid. Elements made of extruded anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Invisible electrical and mechanical connection with 2.4 m cables. Each configuration includes a ceiling rose with integrated electronics for push, 1–10 V or DALI dimming.

Designed by Michael Anastassiades, Coordinates Suspension translates the collection’s illuminated grid into a series of suspended compositions. Evolving from a commission for the historic Four Seasons restaurant in New York, Coordinates takes inspiration from the Cartesian grid, translating pure mathematical precision into light. Its modular, scalable system allows configurations ranging from minimal arrangements to complex installations. Elegant, imposing and expressive, it brings geometry to life within any space.

37W - 1920lm - 2700K - CRI> 95

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Suspension-Coordinates-1
Main specifications
EAN
8059607001707
Mounting
Suspension
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
37
Lumen Output (lm)
1920
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
95
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
120-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 0-10V, Dimmable 1-10V, Dimmable DALI 1, Dimmable Push
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Anodized Champagne
Length (mm)
780
Cord colour
Clear
Cord length (mm)
2400
Canopy colour
Anodized Champagne
Canopy length/diameter (mm)
149
Canopy height (mm)
71
Net weight (kg)
2.2
Package volume (m3)
0.02
IP internal
20
CE
RG
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

ULD

Technical Drawings

3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Spare Parts

F1860044-coordinates-s1-flos-boom
00. Push button and cables assembly for dimmer
RF27318
01. Power supply kit for Arrangements small & Noctambule
RF0410500
02. Led dimmer kit
RF34197
03. Coordinates S Ceiling rose cover Anodized Champagne
RF1872144

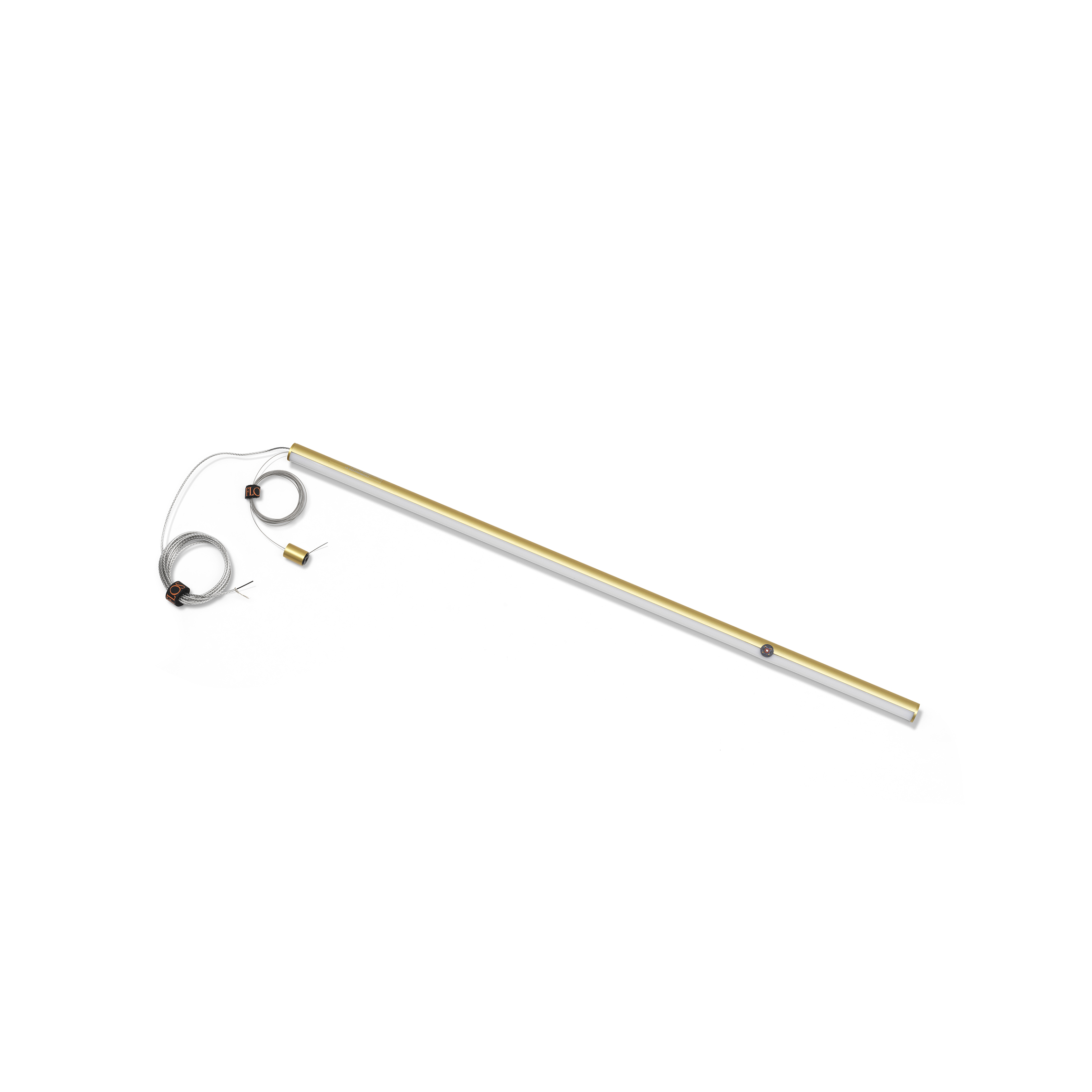

04. Rod Assembly L780 SA-15 Anodized Champagne
RF31429
05. Coordinates Suspension 1 Rod assembly L780 H-06 champagne
RF31373
06. Coordinates Suspension 3 Rod Assembly L780 SH-03 Anodized Champagne
RF31372
