F1810033 Argent

Coordinates Wall 1

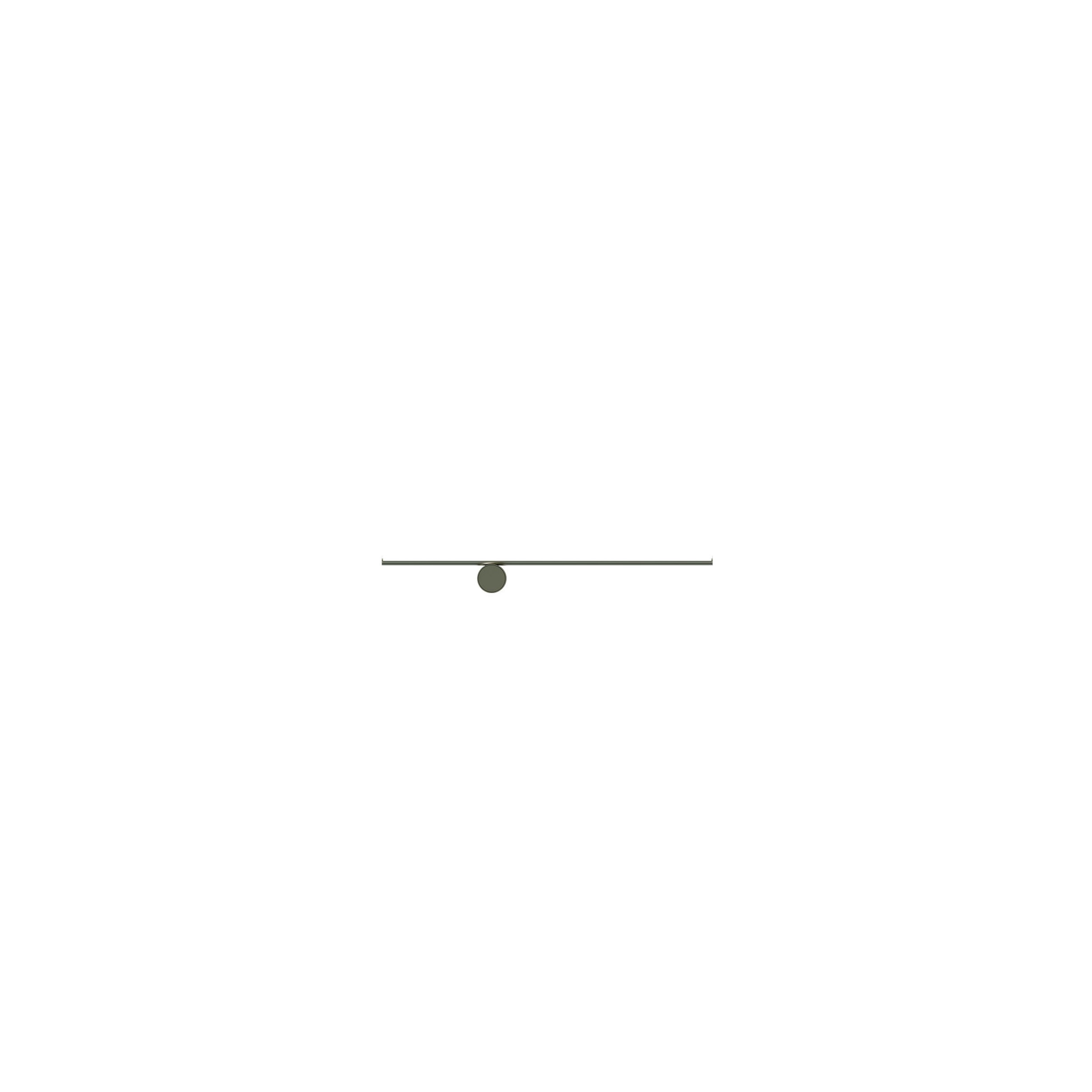

Wall-mounted lamp emitting diffused light. Composed of a horizontal bar made of extruded, processed and anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Supplied with a dedicated rose with integrated electronics compatible with TRIAC dimming only.

Designed by Michael Anastassiades, Coordinates Wall brings the collection’s linear, grid-inspired language to the wall in a pared-back horizontal composition. Evolving from a commission for the historic Four Seasons restaurant in New York, Coordinates takes inspiration from the Cartesian grid, translating pure mathematical precision into light. Its modular, scalable system allows configurations ranging from minimal arrangements to complex installations. Elegant, imposing and expressive, it brings geometry to life within any space.

21W - 961lm - 2700K - CRI> 90

Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Coordinates-1
Main specifications
EAN
8059607035245
Mounting
Wall
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
21
System power (W)
21
Lumen Output (lm)
961
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Argent
Length (mm)
100
Net weight (kg)
0.9
Package height (mm)
145
Package width (mm)
290
Package length (mm)
890
Package volume (m3)
0.04
IP internal
20
CE
RG
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible

Photometric Files

ULD
LDT / IES

Technical Drawings

3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL4 Non-replaceable control gear

Spare Parts

F1810033-coordinates-wall-1-flos-boom
01. Coordinates W1 Power supply assembly – New type
RF37005
