Thumbnail
Related to
Coordinates
F1811033Argent

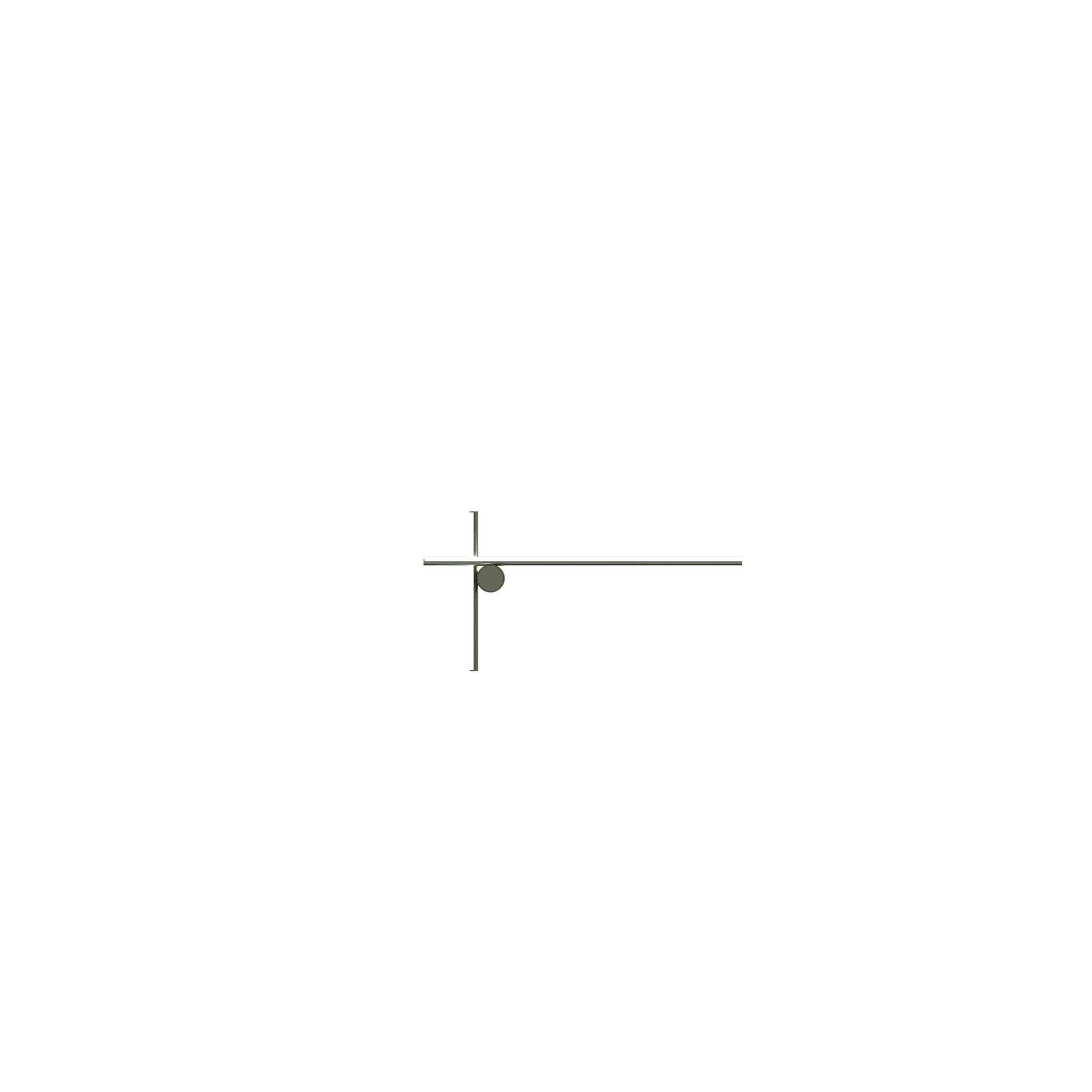

Coordinates Wall 2

Wall-mounted lamp emitting diffused light. Composed of a horizontal bar made of extruded, processed and anodised aluminium with a platinum optical silicone diffuser housing an integrated LED strip. Supplied with a dedicated rose with integrated electronics compatible with TRIAC dimming only.

28W - 1402lm - 2700K - CRI> 90

Find a Flos store
Also available in:
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Coordinates-2
Main specifications
EAN
8059607035313
Mounting
Wall
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED Module
Power (W)
28
System power (W)
28
Lumen Output (lm)
1402
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Power supply type
Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Argent
Length (mm)
100
Net weight (kg)
1.1
Package height (mm)
145
Package width (mm)
495
Package length (mm)
930
Package volume (m3)
0.07
IP internal
20
CE
RG
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Gwt 850 (º)
20

Download

Tech spec pdf
Mounting instructions
Dimmers or chargers compatible

Photometric Files

ULD
LDT / IES

Technical Drawings

3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2

PWRSUPRPL4

Spare Parts

F1811033-coordinates-wall-2-flos-boom
01. Coordinates W2 Power supply assembly – New type
RF37006
Thumbnail
x1
Coordinates W2 Power supply assembly – New typeRF37006
