Copycat
F1952044 24K GoldCopycat
Designed by Michael Anastassiades, 2015
Table lighting fixture comprising an aluminium sphere machined from solid and then gold-coated with 24 K gold. Blown glass opal diffuser. LED light source with dimmer switch on the power cable.
16W - 900lm - 2700K
Technical Drawing
Main specifications
EAN
8059607001776
Mounting
Table
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Power (W)
16
Lumen Output (lm)
900
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Asymmetric
CCT (K)
2700
Extreme cut off
No
Electrical
Insulation class
III
Frequency (Hz)
50/60
Main voltage (Vac)
100-240
Power supply
Remote included
Dimmable
Yes
Power supply type
Electronic 24V
Dimming interface
Dimmer Integrated
Plug type
Type G, Type A, Type C
Batteries inside
No
Physical
Colour
24K Gold
Length (mm)
298
Cord colour
Black
Net weight (kg)
3.6
Package volume (m3)
0.07
IP internal
20
Ecodesign and Energy Labelling
This product contains a light source of energy efficiency class D
Replaceable (LED only) light source by a professional
Replaceable control gear by an end-user
Spare Parts
01.

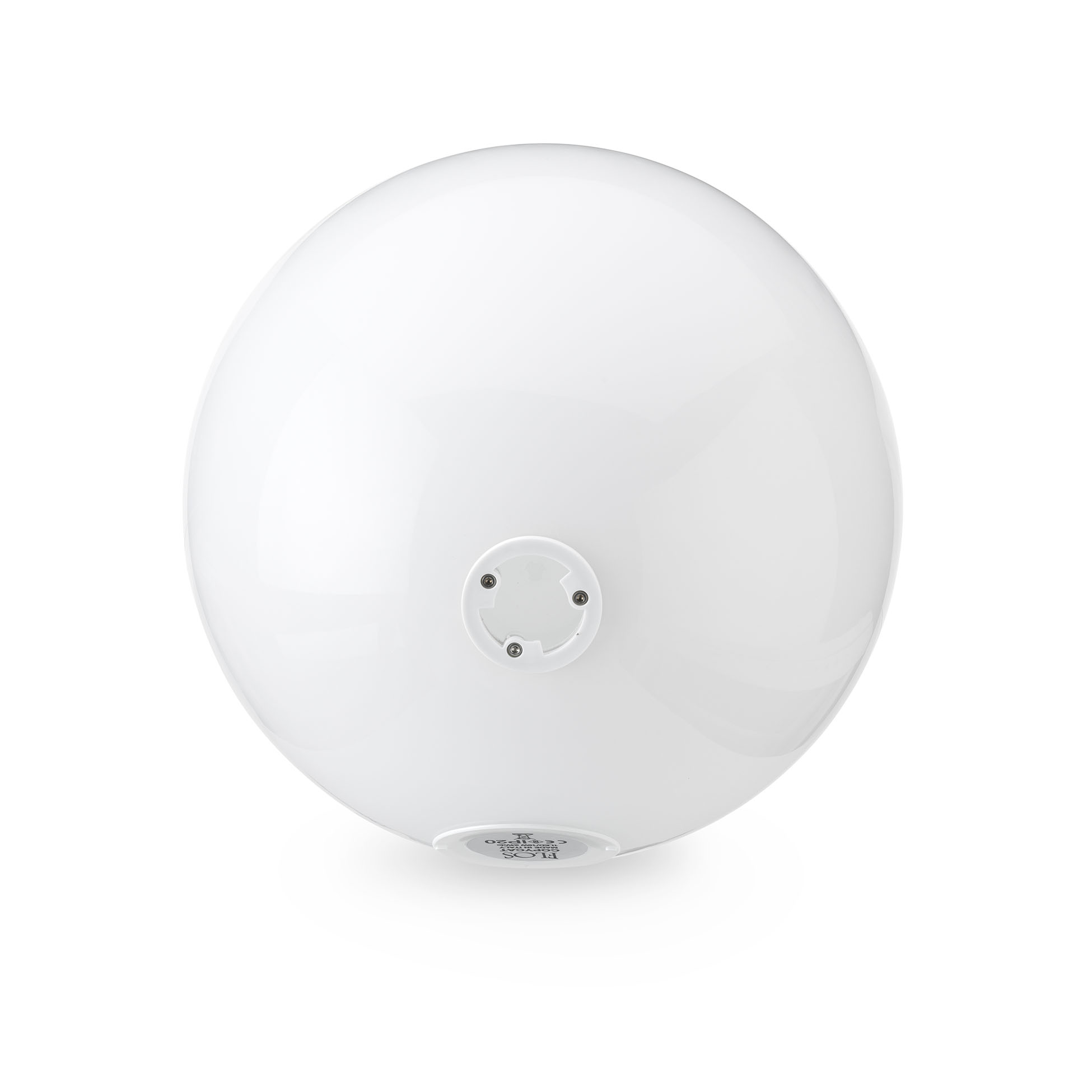

Copycat White glass diffuser
F1950009
02.

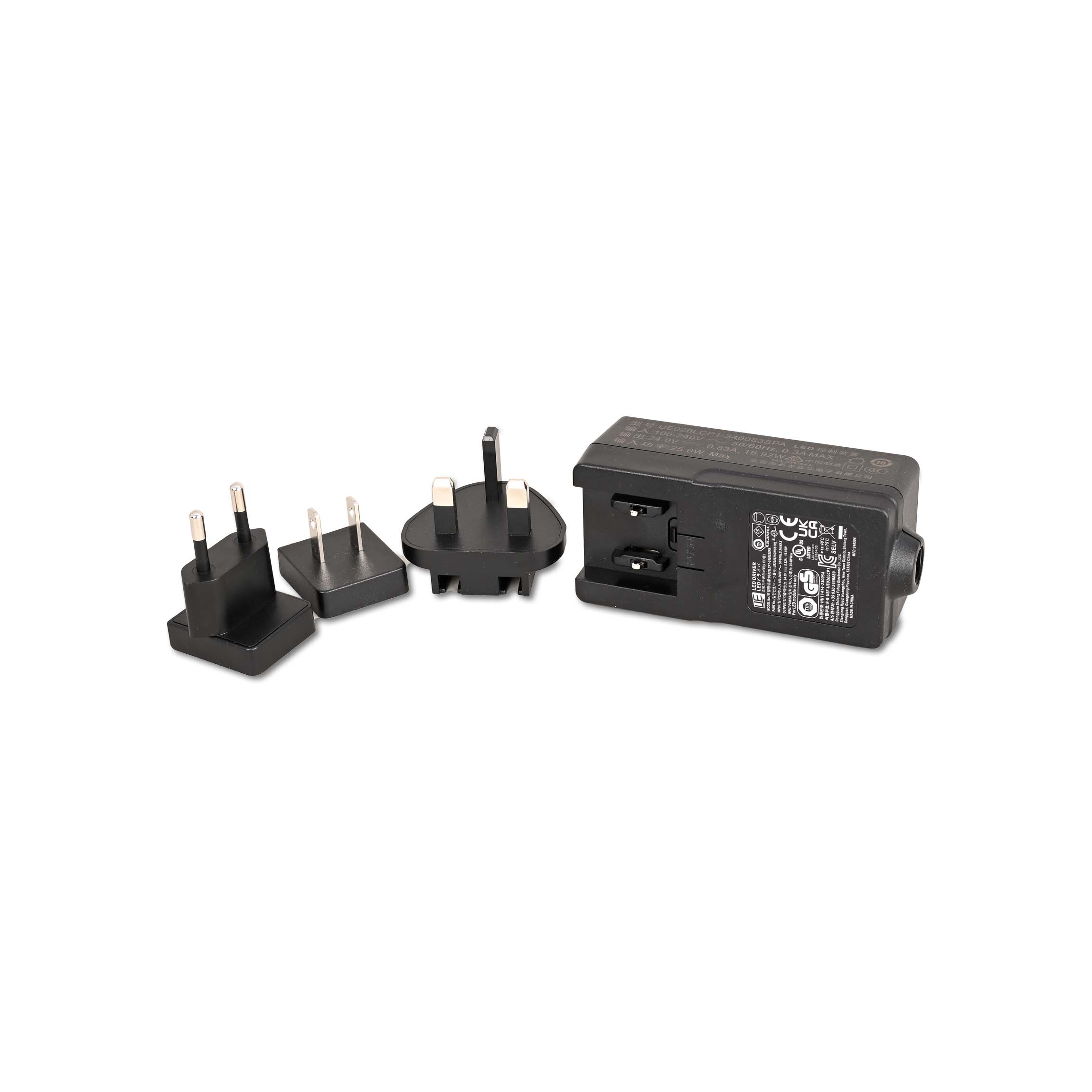

Black plug assembly kit & 24V driver
RF6600230
04.
Copycat Kit of snap springs and fixing screws
RF1951100
