Dooku
FA53903533-310 Anthracite

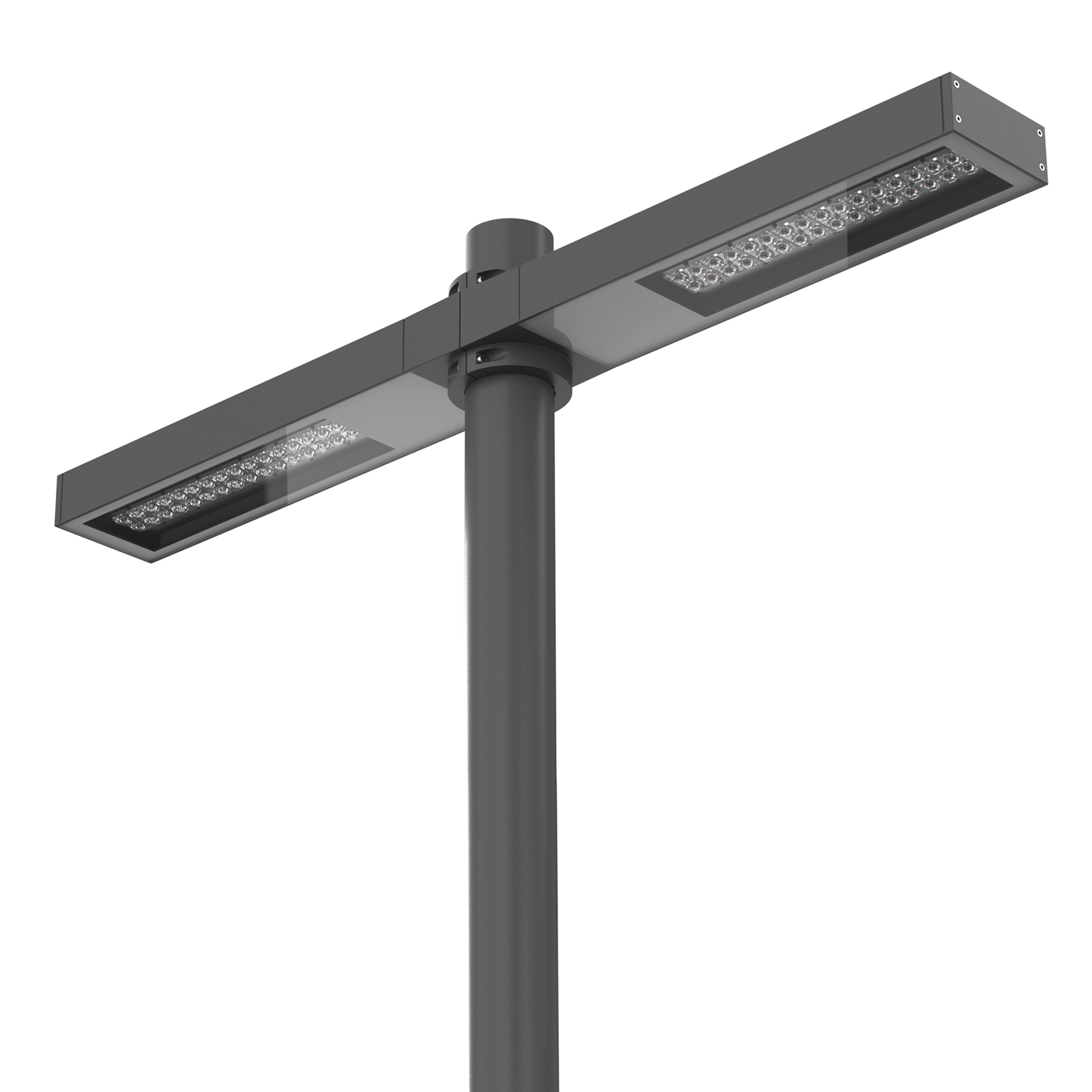

Dooku 600 Double Top Pole Ø102 mm Foot&Cycle Optic Dimmable 1-10V
New
Designed by FLOS Outdoor, 2014
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Double socket for 102mm diameter post. The post must be ordered separately.Smart-City version available upon request.
2 x 67W - 2 x 13864lm - 4000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793680996
Mounting
Pole Top
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
2
Power (W)
67
System power (W)
2X78
Source flux (lm)
18252
Lumen Output (lm)
13864
Schematic light drawing
Photometric
Light distribution
Asymmetric
CCT (K)
4000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
Yes
Dimming interface
Dimmer Integrated
Emergency
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
13.8
Package height (mm)
825
Package width (mm)
380
Package length (mm)
185
Package volume (m3)
0.06
IP internal
65
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
