Related to
Dooku

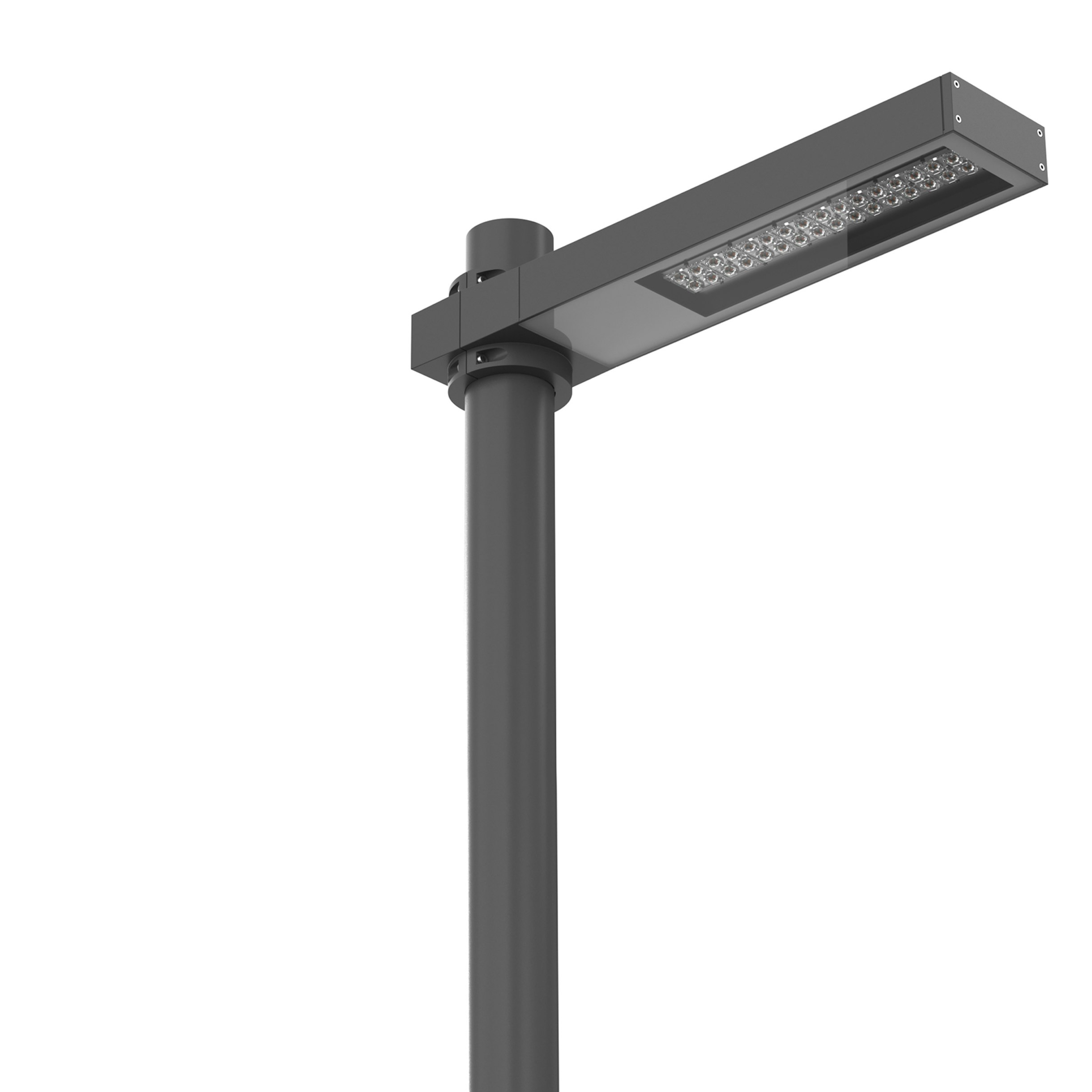

FA53916233 AnthraciteDooku 600 Single Top Pole Ø102 mm Asymmetric Optic
Designed by FLOS Outdoor, 2014
LED source included. Integrated power supply 220-240V ON/OFF and dimmable 1-10V or DALI. Fixing bracket included. Equipped with a 400mm protruding neoprene cable section and IP68 connectors. Smart-City version available upon request.Single socket for 102mm diameter post. The post must be ordered separately. Smart-City version available upon request.
67W - 6800lm - 3000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793684284
Mounting
Pole Top
Environments
Outdoor wet location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
67
System power (W)
78
Source flux (lm)
8832
Lumen Output (lm)
6800
Schematic light drawing
Photometric
Light distribution
Asymmetric
CCT (K)
3000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Emergency
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
6.7
Package height (mm)
805
Package width (mm)
175
Package length (mm)
150
Package volume (m3)
0.02
IP internal
65
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
