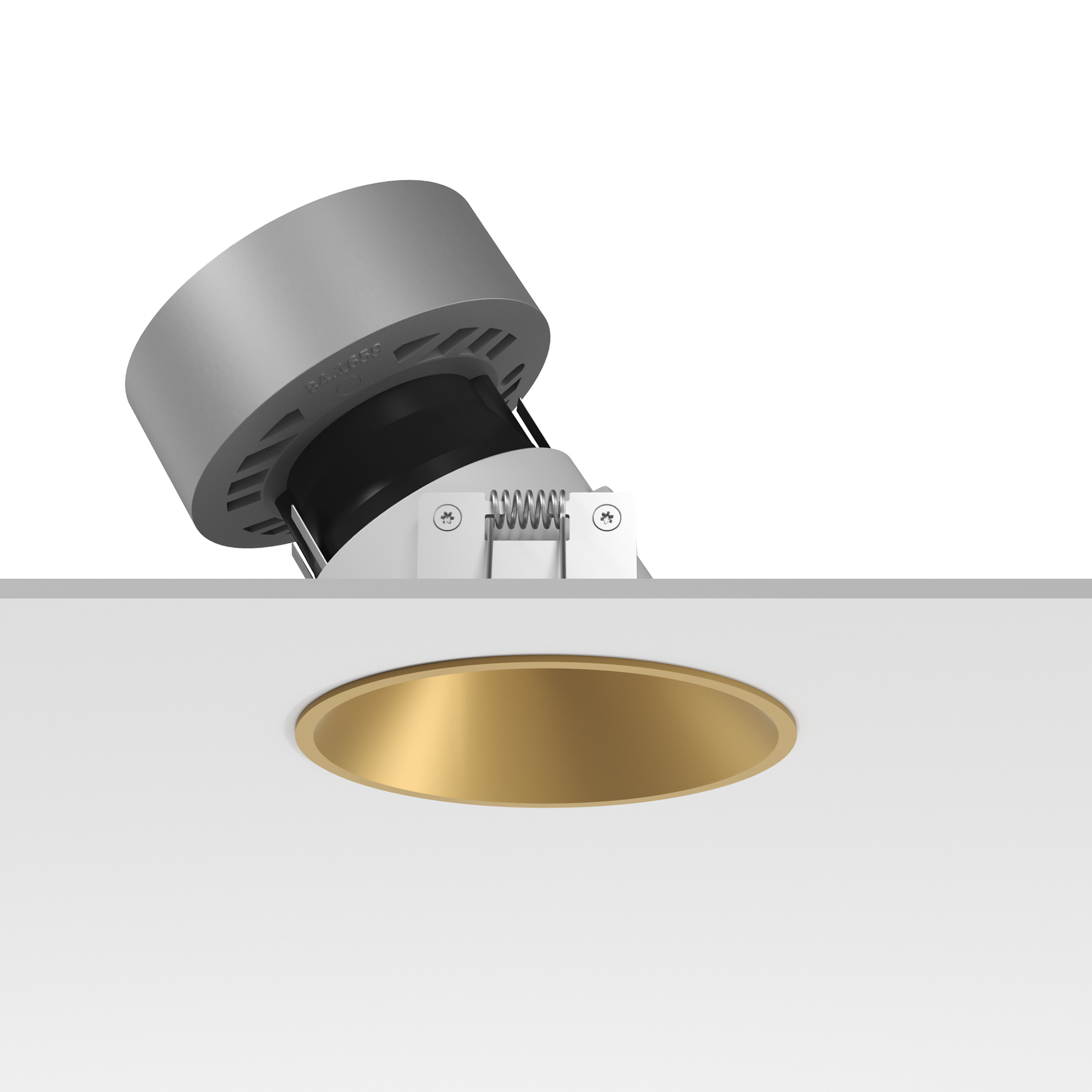

05.7020.GLGoldEasy Kap Ø 105 Wall-Washer
Designed by FLOS Architectural, 2019
Recessed luminaire with LED light source. Remote electronic transformer 220/240V not included. Installation frame not necessary.
LED - LED array - 22.8W - 1638lm - 2700K - CRI> 90 - Beam° 25
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
LED array
Lamp category
LED
Number of lamps
1
Power (W)
22.8
System power (W)
25.9
Source flux (lm)
2086
Lumen Output (lm)
1638
Efficacy (lm/W)
63
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
McAdam steps (SDCM)
3
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
25
UGRL
<10
Electrical
Insulation class
III
Frequency (Hz)
0
Forward voltage (V)
34
LED current (mA)
650
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable DALI 2, Dimmable Casambi, Dimmable 1-10V
Physical
Colour
Gold
Trim
Yes
Orientation
Fixed
Recessed depth (mm)
134
Spot diameter (mm)
111
Length (mm)
111
Net weight (kg)
0.53
Package height (mm)
190
Package width (mm)
175
Package length (mm)
220
IP internal
20
IP external
54
