Kap

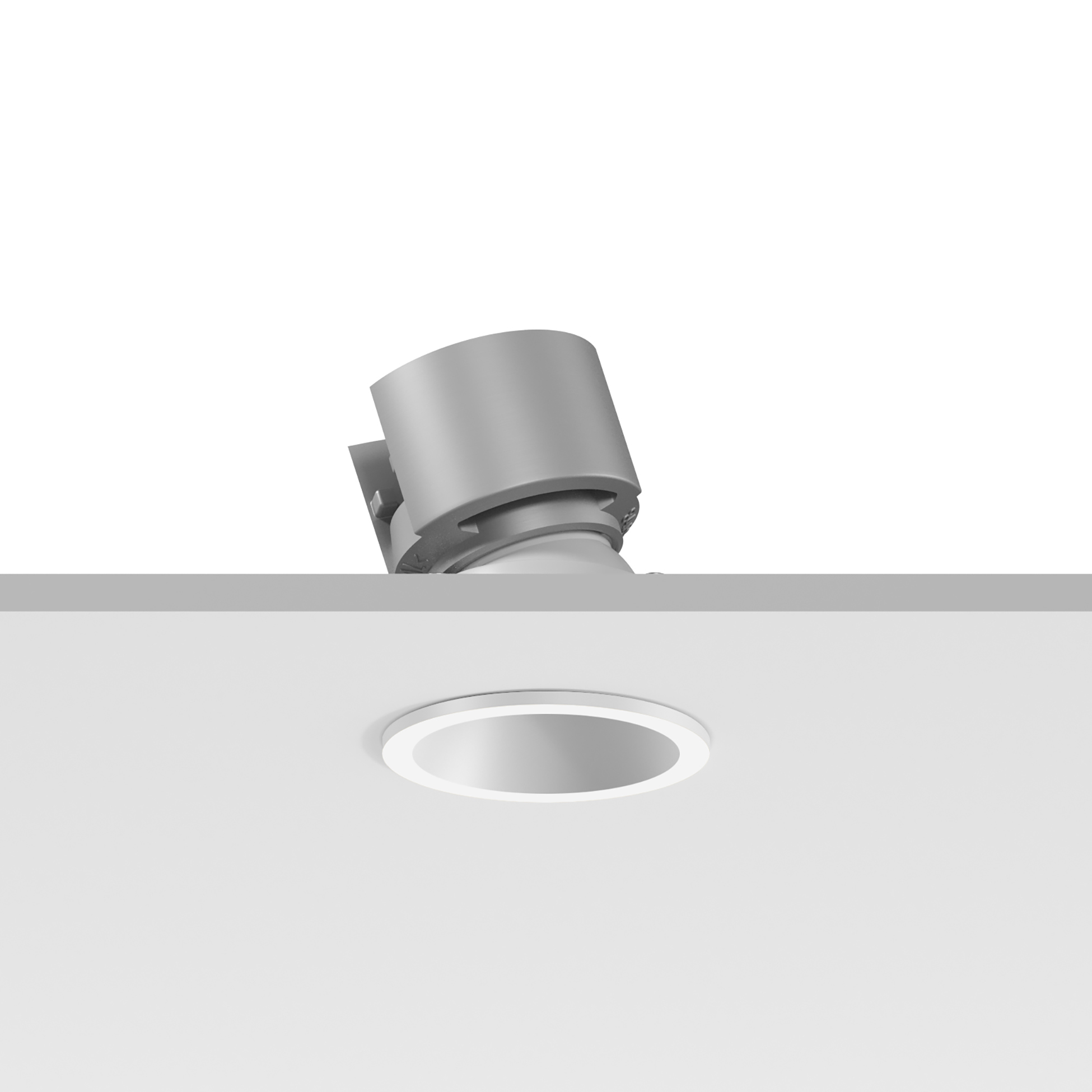

05.7615.B1A WhiteEasy Kap Ø30 Adjustable
Designed by FLOS Architectural, 2023
Recessed luminaire with LED light source. Power supply not included. Installation frame not required.
LED - Power LED - 3W - 218lm - 3000K - CRI> 90 - Beam° 19
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
3
System power (W)
4.7
Source flux (lm)
229
Lumen Output (lm)
218
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
3
Rf fidelity index
95
Rg gamut index
104
LED Life / Failure Ratio
L90B50>51.000h_Tc85ºC
Beam angle C0-180 (º)
19
Beam angle C90-270 (º)
19
Extreme cut off
No
UGRL
<16
Electrical
Insulation class
III
Forward voltage (V)
3.3
LED current (mA)
900

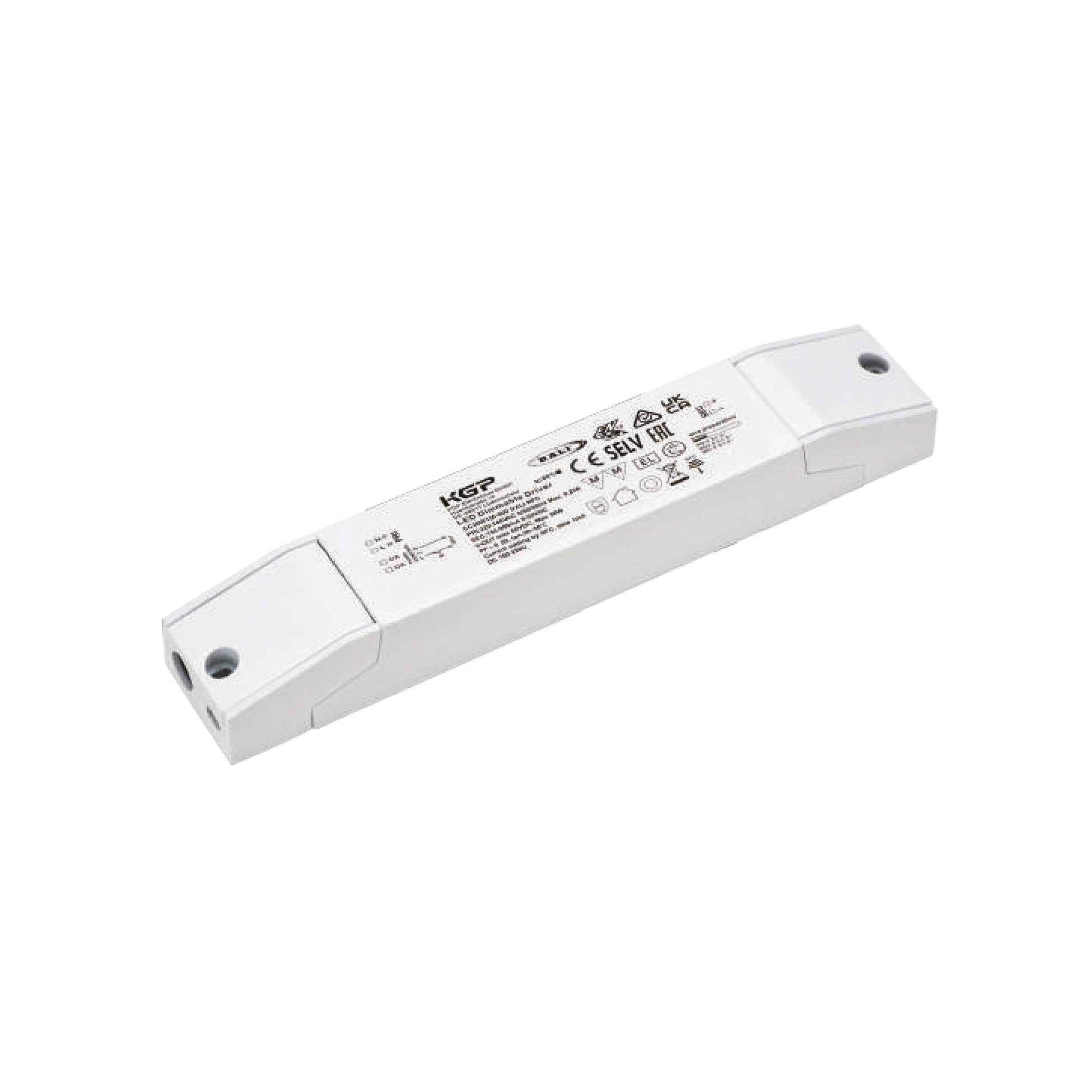

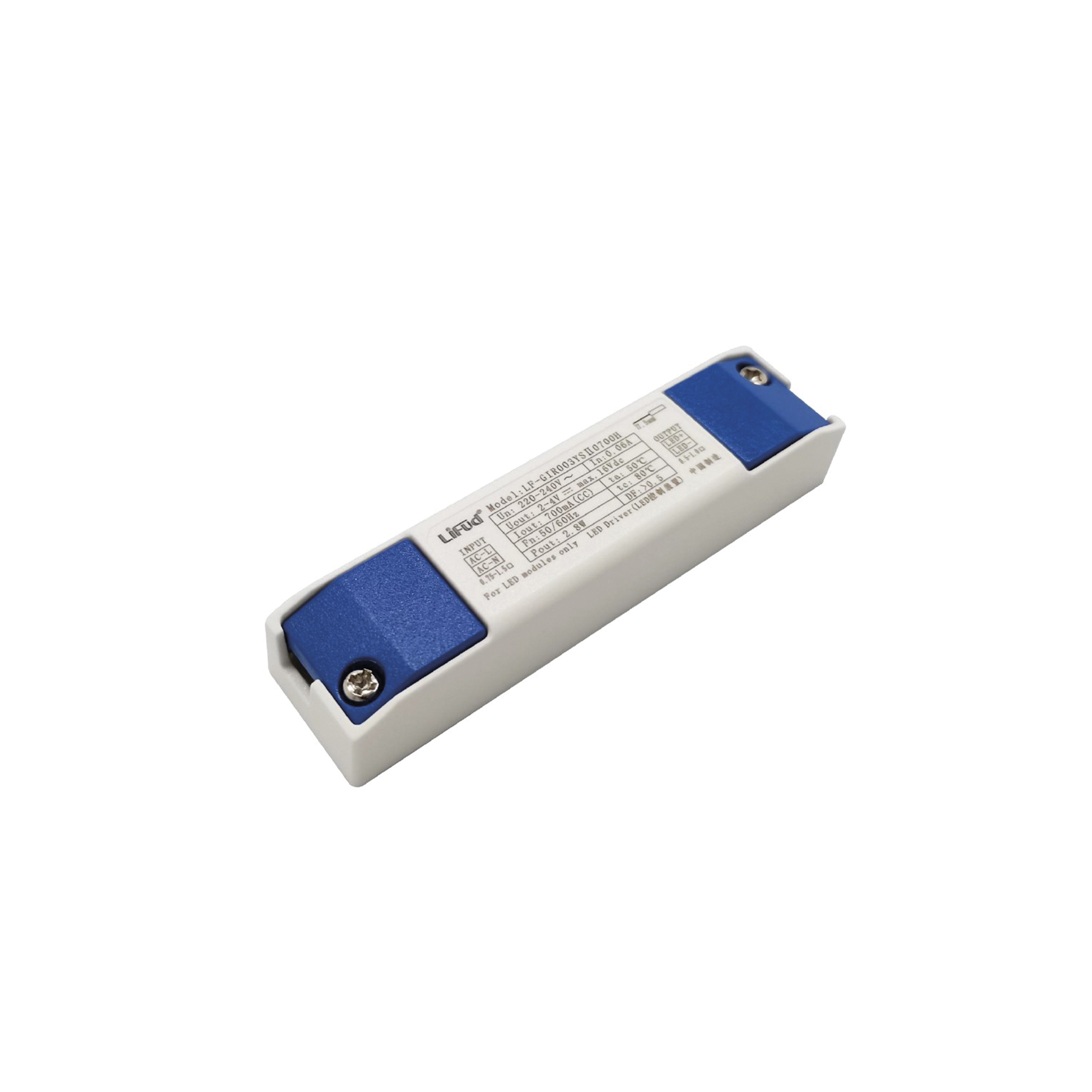

Power supply
Remote excluded
Power supply type
Non Dimmable, Dimmable DALI 2, Dimmable 1-10V, Mains Cut Dimming
Dimming interface
Remote Dimmable (Dimmer Not Included)
Physical
Colour
White
Trim
Yes
Orientation
Adjustable
Longitudinal tilting (°)
17
Transversal tilting (°)
17
Recessed depth (mm)
54
Length (mm)
37
Net weight (kg)
0.04
Package height (mm)
70
Package width (mm)
61
Package length (mm)
85
IP internal
20
IP external
54
Replaceable (LED only) light source by a professional
Replaceable control gear by a professional
