Kap

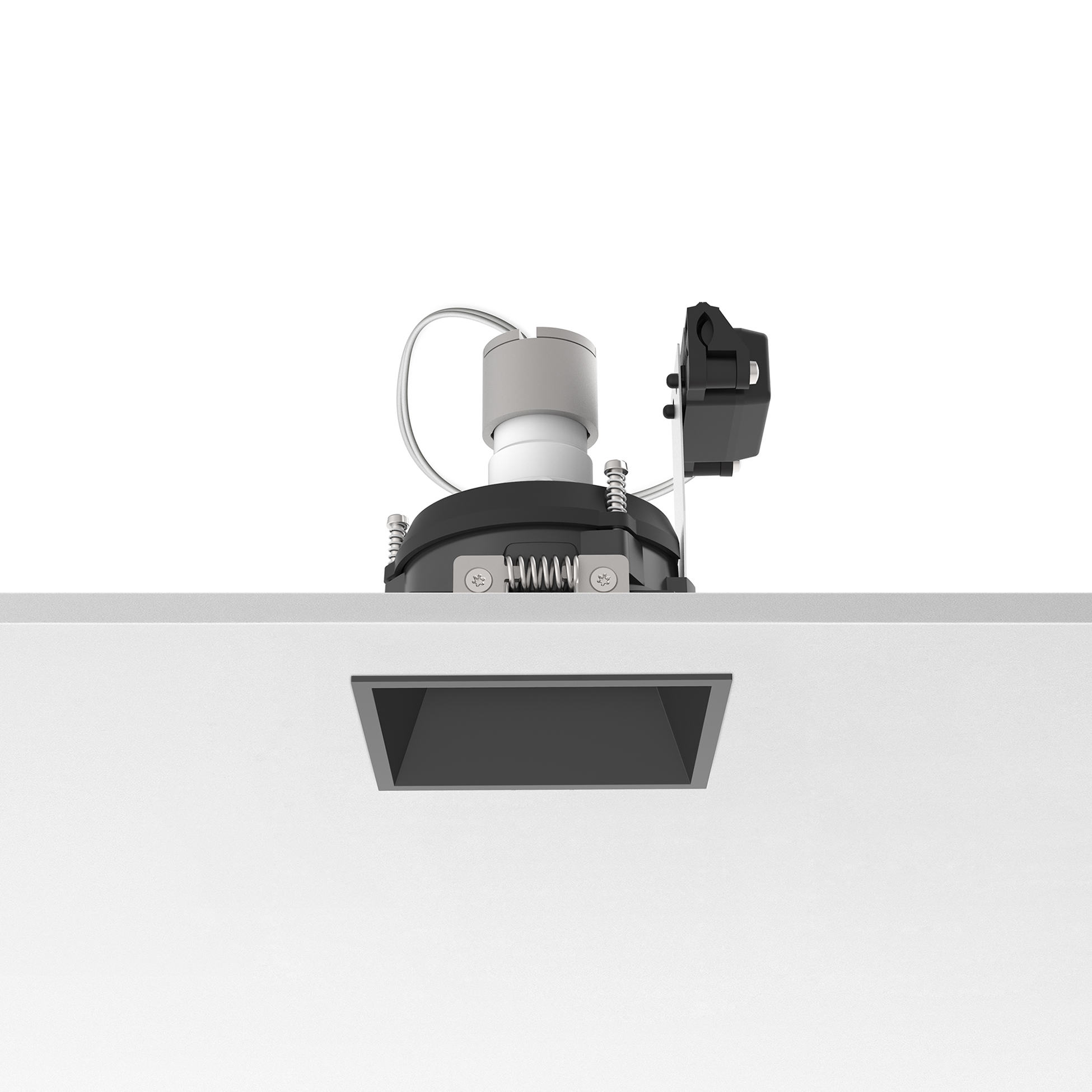

03.4213.74BlackEasy Kap 80 Square Adjustable
Designed by FLOS Architectural, 2016
Recessed luminaire with main voltage source. Installation frame not necessary.
LED retrofit
Also available in:
Technical Drawing
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
Bulb
Light sources included
no
Lamp category
LED retrofit
Lamp type
PAR16
Lamp holders
GZ10
Number of lamps
1
Photometric
Lighting type
Direct
Light distribution
Symmetric
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Physical
Colour
Black
Trim
Yes
Orientation
Adjustable
Rotation (º)
360
Longitudinal tilting (°)
20
Transversal tilting (°)
20
Recessed depth (mm)
155
Spot diameter (mm)
80
Length (mm)
80
Net weight (kg)
0.12
Package height (mm)
90
Package width (mm)
140
Package length (mm)
105
IP internal
20
IP external
23
Notes
Not suitable for lens accessories.
