05.8234.14 Black

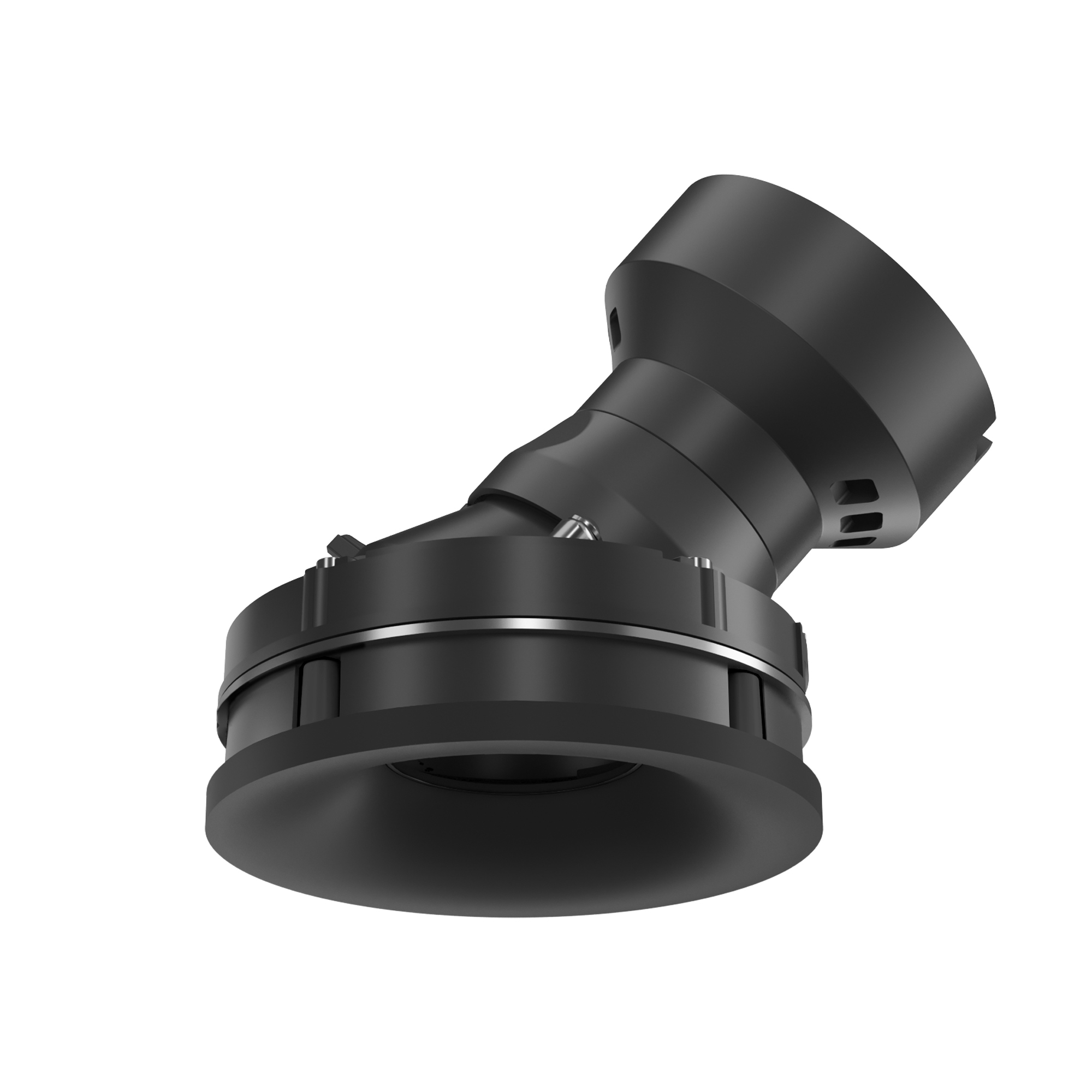

Eclectic 90 Adjustable Soft Power Led

Eclectic Ø90. Adjustable Downlight (40º tilt, 360º rotation). “Soft” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 41º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Power LED light source*. Alternative options for lenses, orientation modules and style façades are available as spare parts.

7W - 394lm - 3000K - CRI> 90 - Beam° 11

Find a Flos store
Technical Drawing
DR-Eclectic-90-Adjustable
Main specifications
Mounting
Ceiling recessed
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
7
System power (W)
9.3
Lumen Output (lm)
394
Efficacy (lm/W)
56
Schematic light drawing
EU_05_8234_XX_XXW9.5
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
90
McAdam steps (SDCM)
2
Rf fidelity index
92
Rg gamut index
100
LED Life / Failure Ratio
L90B50>60.000h_Tc=85°C
Beam angle C0-180 (º)
11
Beam angle C90-270 (º)
11
UGRL
<10
Electrical
Insulation class
III
LED current (mA)
600
Power supply
Remote
Dimmable
Yes
Power supply type
Dimmable DALI 2, Dimmable 0-10V, Dimmable Casambi, Dimmable Push, Dimmable 1-10V, Mains Cut Dimming
Physical
Colour
Black
Orientation
Adjustable
Recessed depth (mm)
114
Spot diameter (mm)
95
Length (mm)
95
Net weight (kg)
0.28
Package height (mm)
157
Package width (mm)
210
Package length (mm)
135
IP internal
20
CE
UKCA
Notes

  • The combination of models using Power LED and Array LED light sources can lead to slight differences in the chromaticity of the light. It is recommended to use the same light source in shared spaces.

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Ecodesign and Energy Labelling

This product contains a light source of energy efficiency class F

REPLACEABLE2 Replaceable (LED only) light source by a professional

PWRSUPRPL2 Replaceable control gear by a professional

Accessories & Power Supply

Required (11)
Optional (4)
All
Power supply
Frame
Thumbnail
x1
Electrical Continuous current power supply 220/240V - 50/60Hz. Adjustable Current 300mA-13W / 350mA-15W / 400mA-18W / 450mA-20W / 500mA-22W / 550mA-24W / 600mA-27W / 650mA-29W / 700mA-31W / 750mA-32W / 800mA-33W / 850mA-35W / 900mA-38W / 950mA-40W / 1000/1050mA-4... 60.9162
Thumbnail
x1
Electrical Non dimmable continuous current power supply. 15-30W, 220/240V -50/60Hz with power current selected through adjustable switch. 350mA - 15W / 400mA - 17W / 450mA - 19W / 500mA - 22W / 550mA - 24W / 600mA - 26W / 650mA - 28W / 700mA - 30W. 60.9592
Thumbnail
x1
Electrical Continuous current power supply of 13-20W - Dim 1-10V&Push - 110/240V - 50/60Hz with power current selected through adjustable 60.9208
Thumbnail
x1

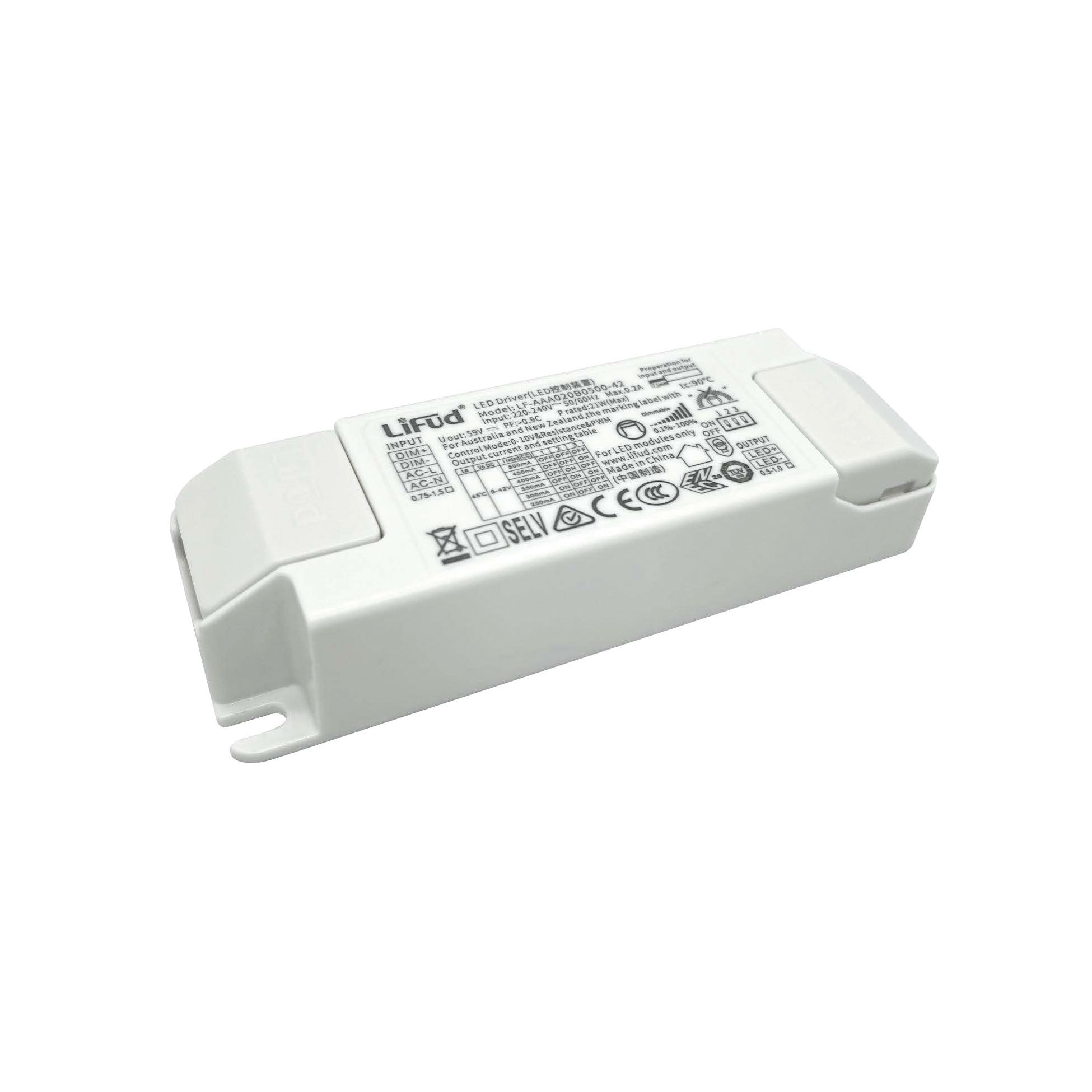

Electrical Continuous current power supply 40W, 220/240V - 50/60Hz with power current selected through adjustable switch. Dimmable 0-10V/PWM/RX. Output current: 1050mA - 40W / 1000mA - 40W / 950mA - 40W / 900mA - 37W / 850mA - 35W / 800mA - 33W / 750mA - 31W / 70... 60.9845
Thumbnail
x1

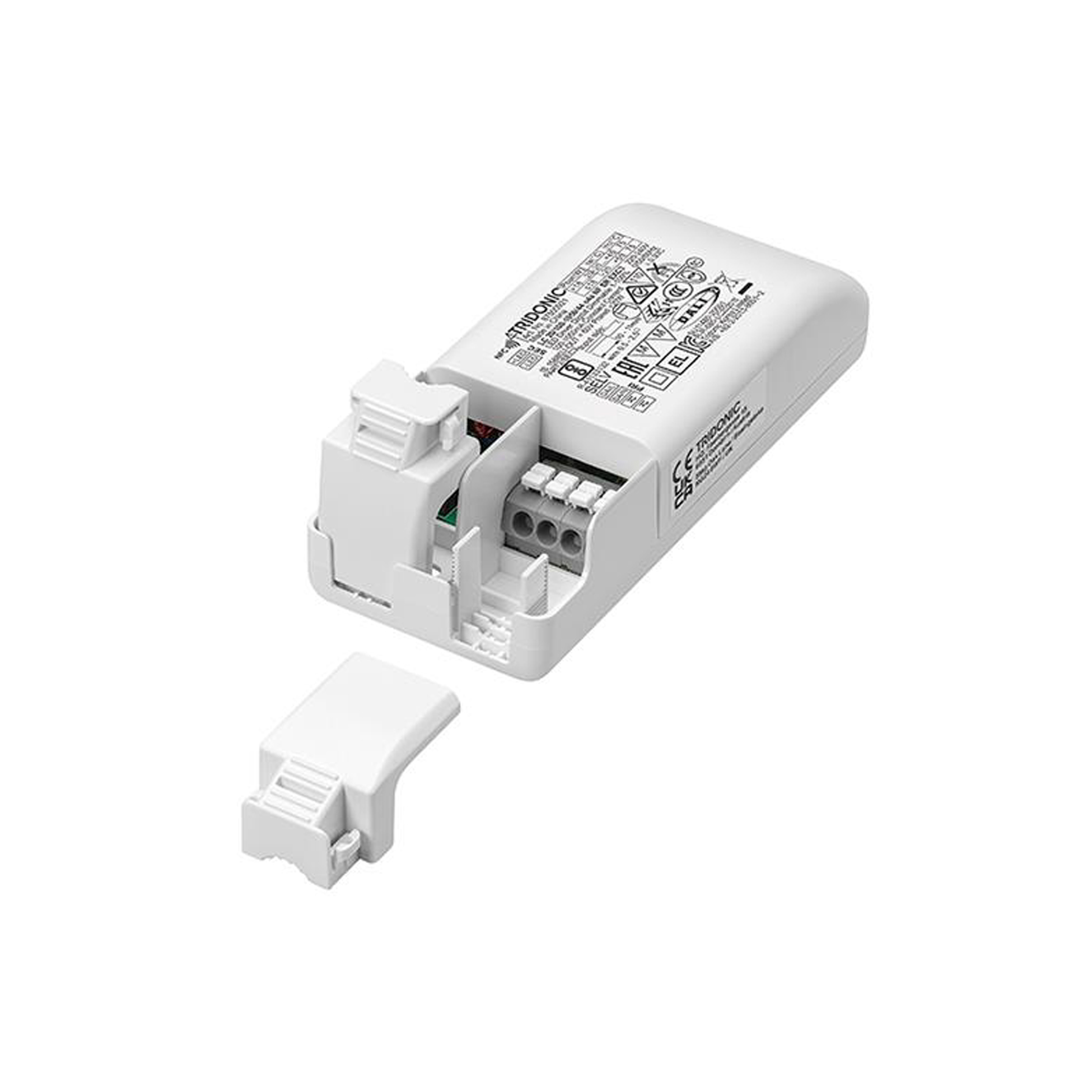

Electrical 600mA, 20 W, 220/240 V - 50/60 Hz constant current power supply. Dimmable by Dali2 60.9713.0600
x1
Electrical Continuous current supply source of 240V - 50/60Hz with dimmable Dali 2, Push dimming. 150mA - 7.8W / 200mA - 10.4W / 250mA - 13W / 300mA - 15.6W / 350mA - 18.2W / 400mA - 20.8W / 500mA - 26W / 600mA - 31.2W / 700mA - 36.4W / 750mA - 39W / 800mA - 41.6... 60.7678
Thumbnail
x1
Installation Trim Frame 08.0671.14
Thumbnail
x1
Installation Trim Frame 08.0671.40
Thumbnail
x1

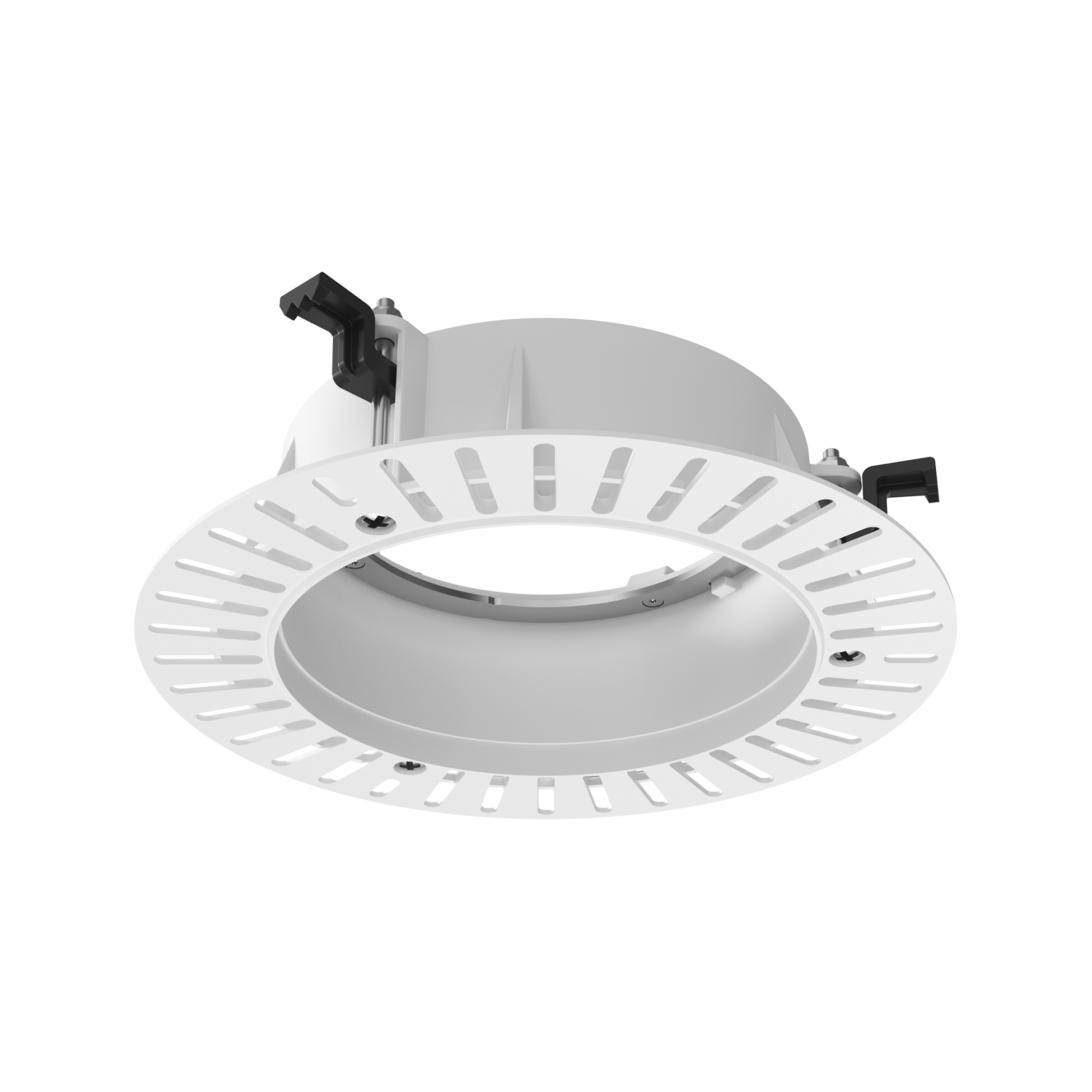

Installation No Trim Frame 08.0673.00
x1
Electrical Constant current power supply 42W, 220–240V CASAMBI dimmable. 60.7785
Thumbnail
x1
Electrical Mains dimming 20W Constant current power supply, AC phase-cut adjustable, trailing & leading edge dimming, 220/240V - 50/60Hz, with dip-switch programmable power supply current. Output current: 900mA - 20W / 850mA - 20W / 800mA - 20W / 750mA - 20W / 70... 60.9467

Spare Parts

Eclectic-90-Spare-Parts-Drawing-Power-LED

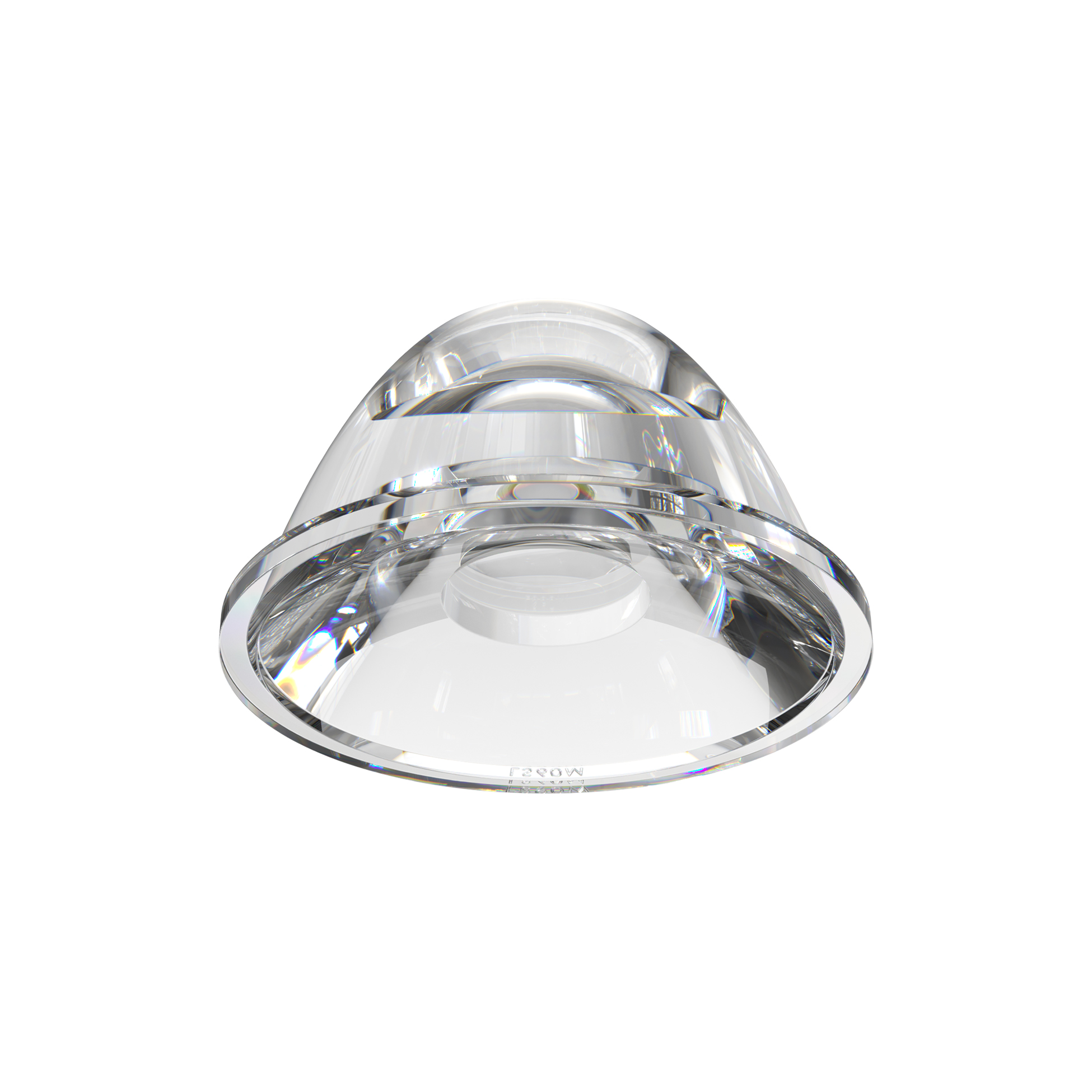

. Super Spot Lens for Eclectic 90 Power Led
08.0718.00
. Spot Lens for Eclectic 90 Power Led
08.0719.00
. Medium Lens for Eclectic 90 Power Led
08.0720.00

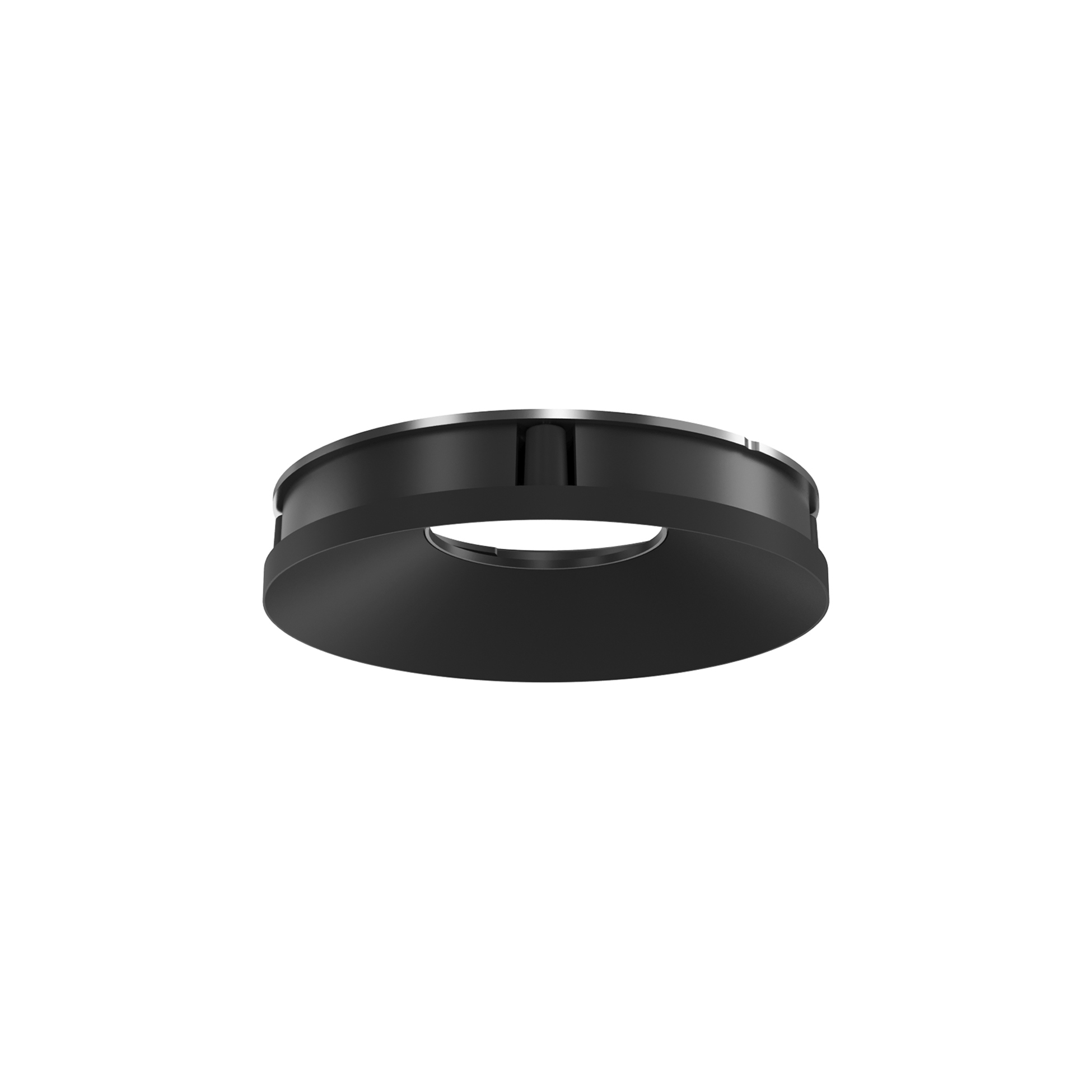

. Cone Frontal for Eclectic 90
08.0724.14

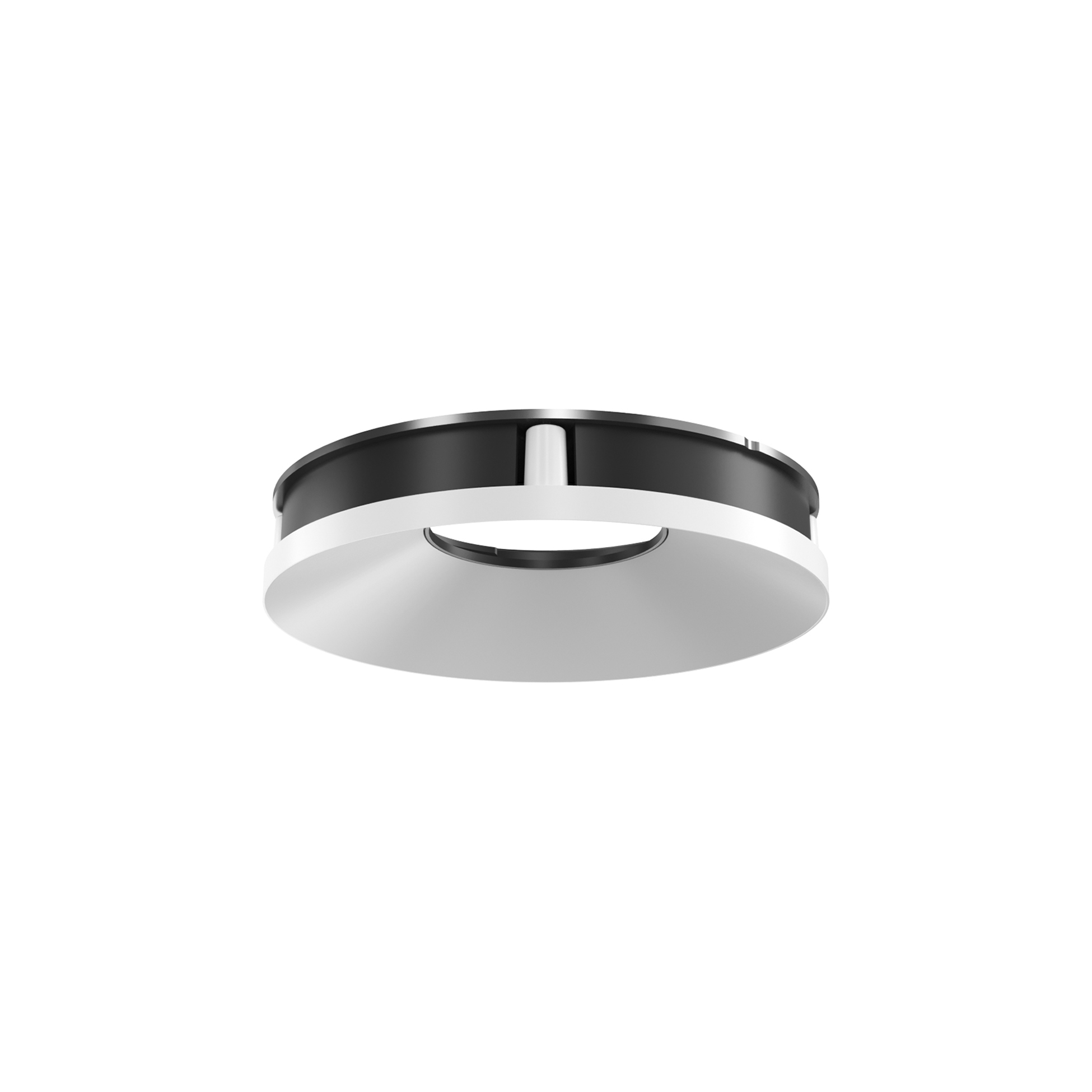

. Cone Frontal for Eclectic 90
08.0724.40

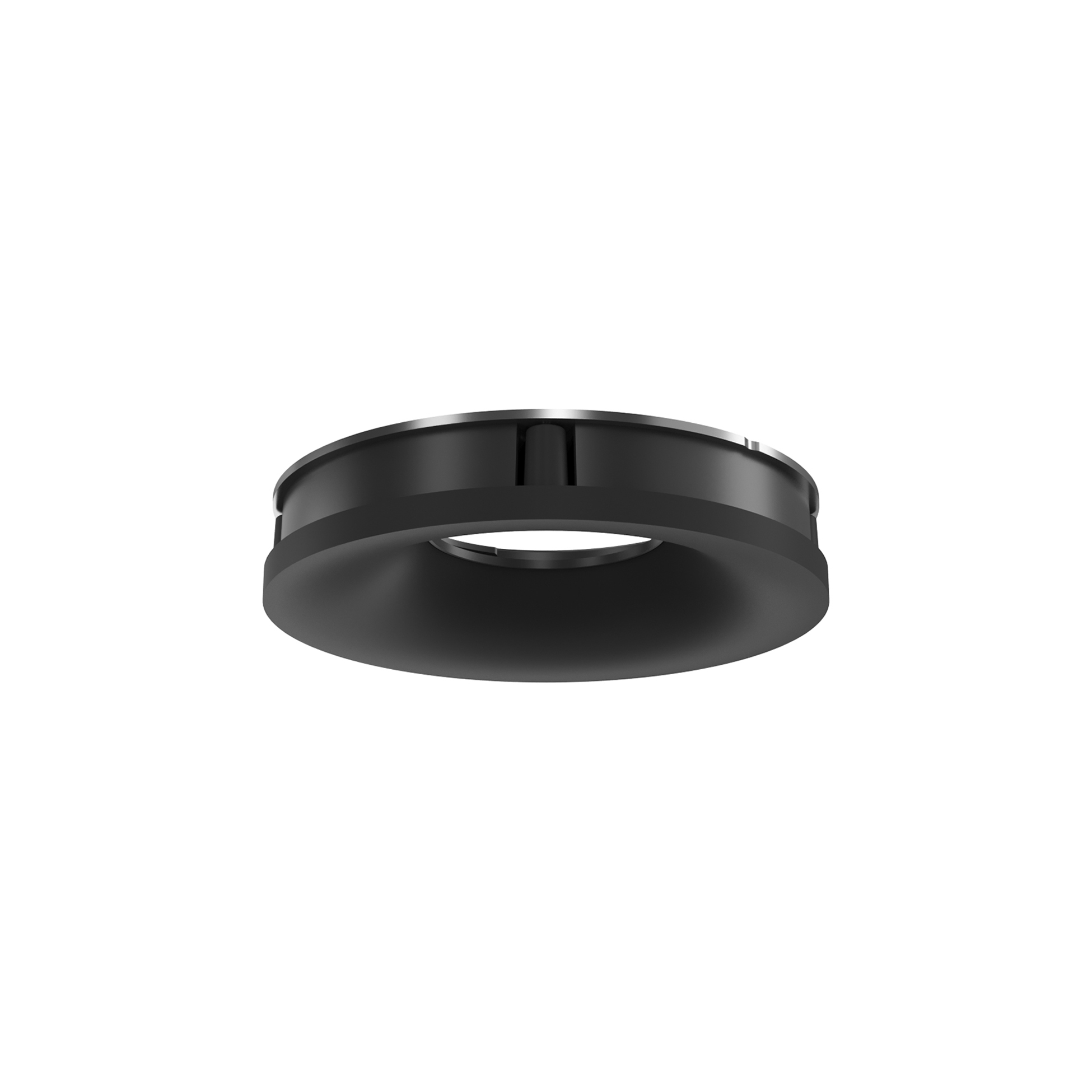

. Soft Frontal for Eclectic 90
08.0725.14

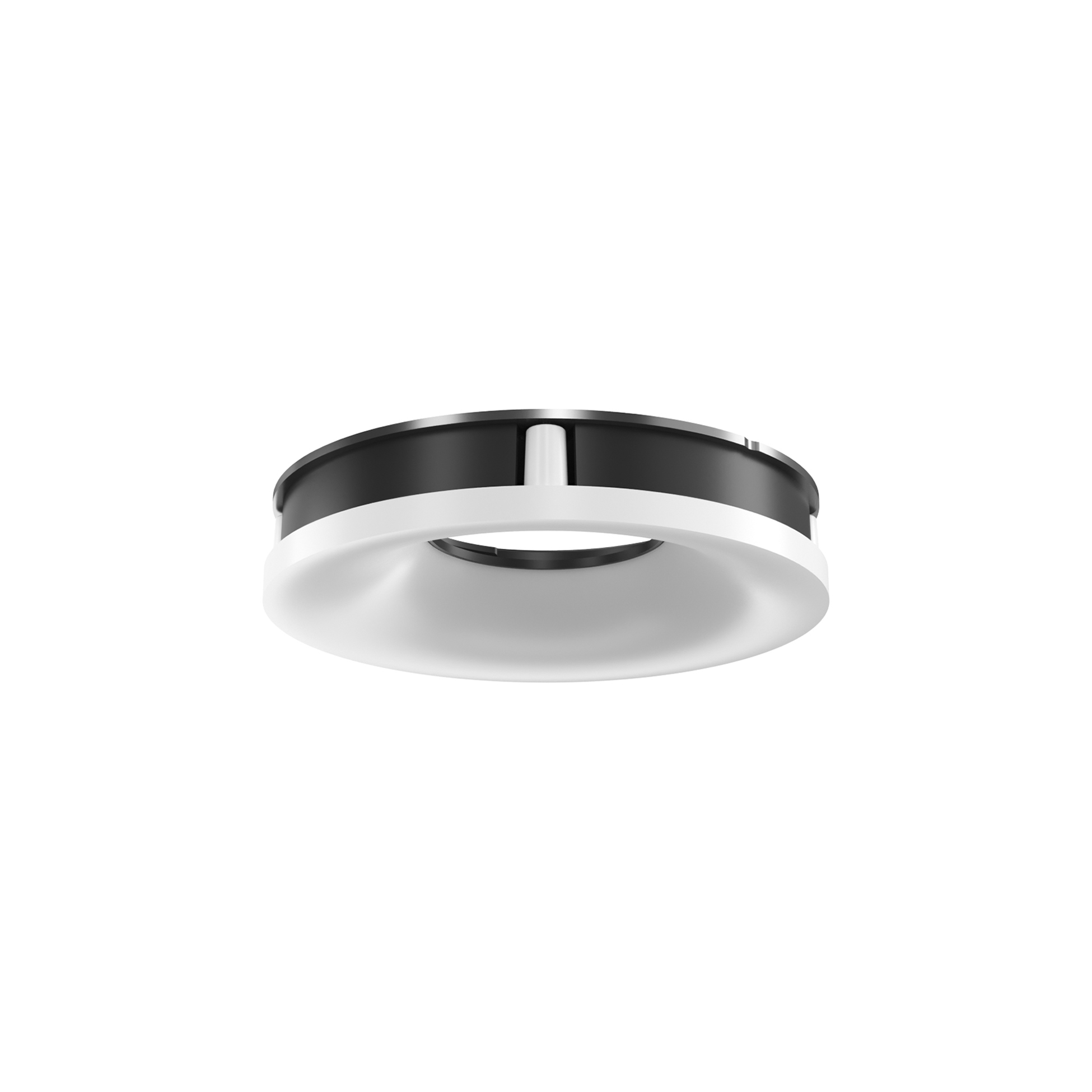

. Soft Frontal for Eclectic 90
08.0725.40

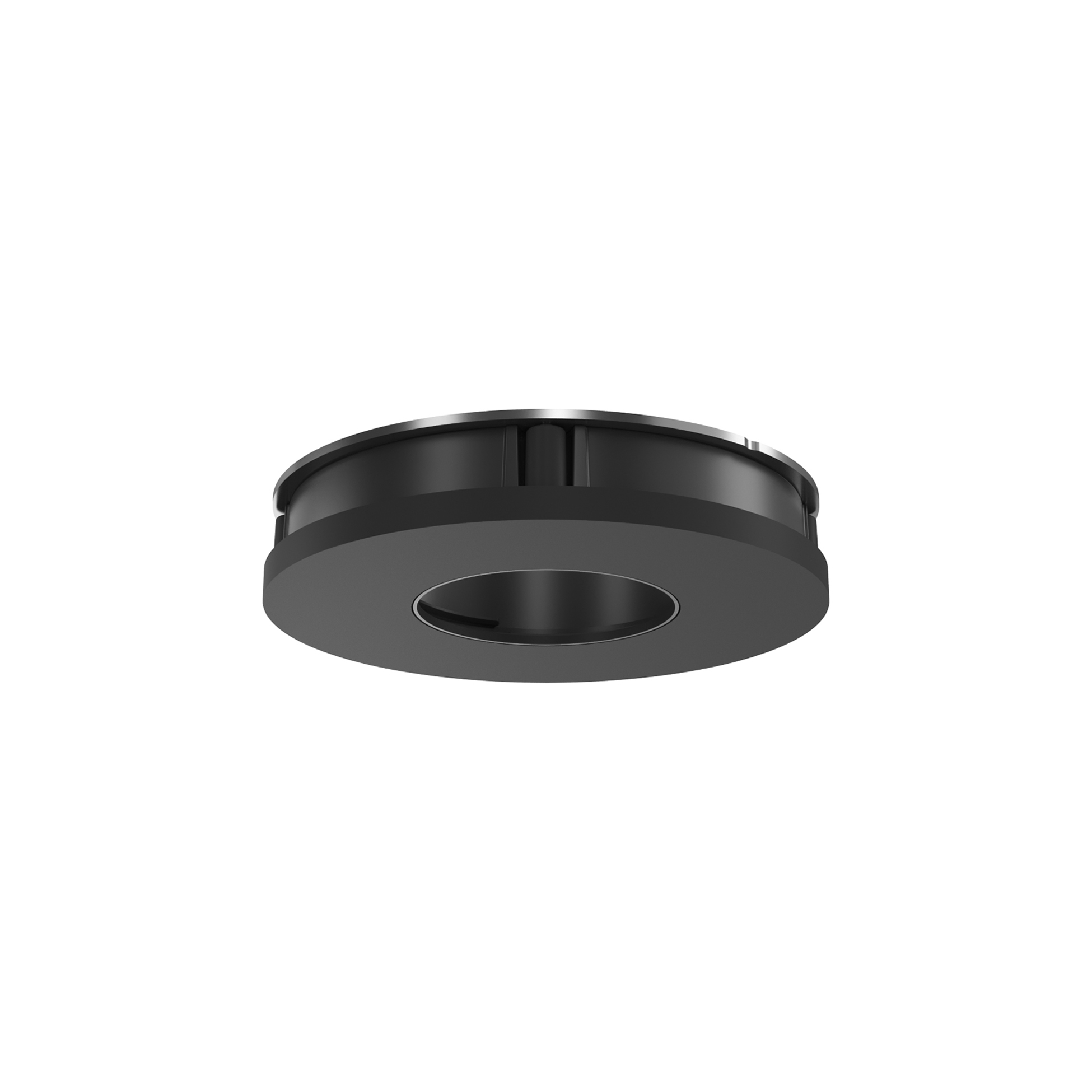

. Flat Frontal for Eclectic 90
08.0726.14
. Flat Frontal for Eclectic 90
08.0726.40
. Module Fix for Eclectic 90
08.0741.00
. Module Adjustable for Eclectic 90
08.0742.00
