Fort Knox

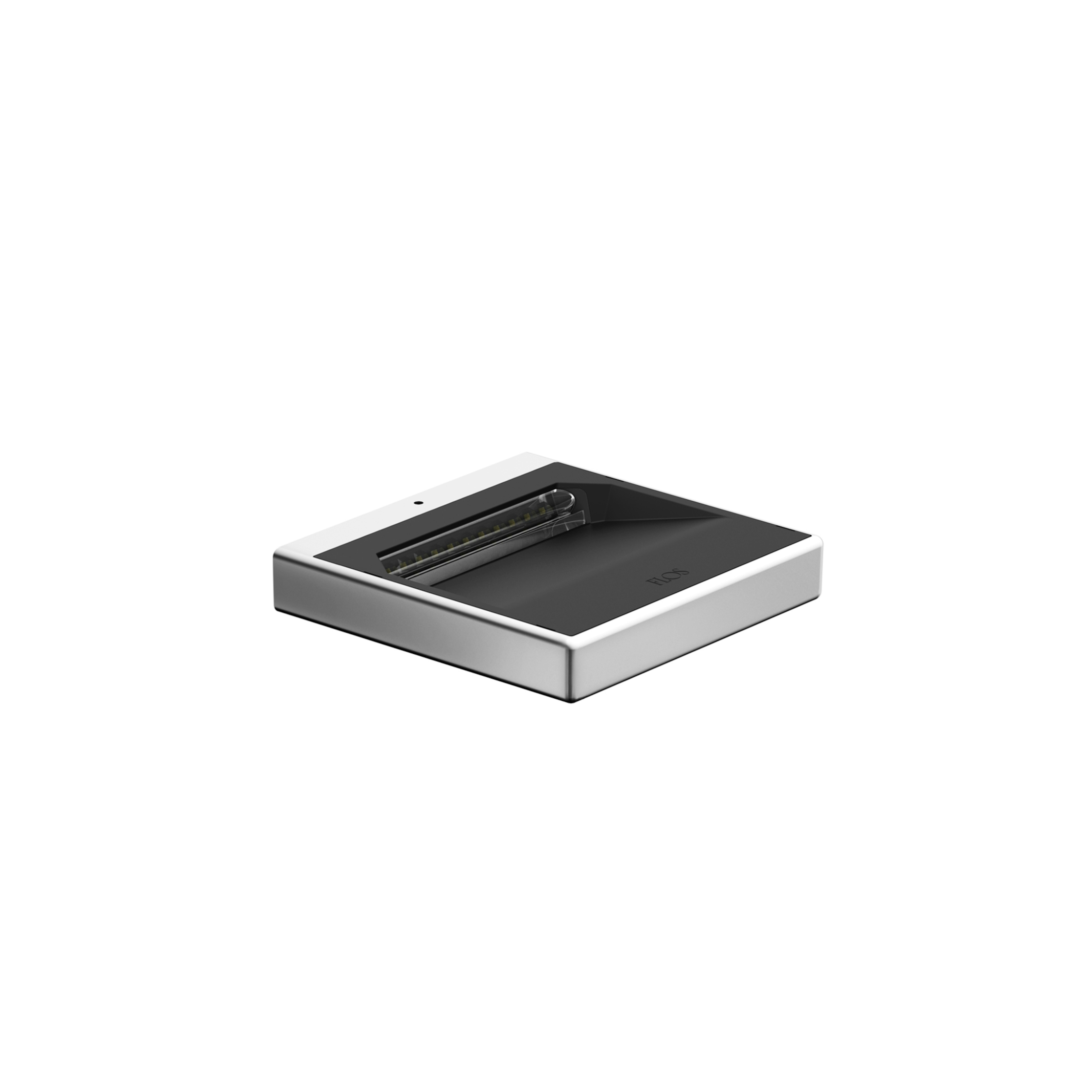

09.2111.05CPolished AluminiumFort Knox Wall LED Dimmable 1-10V
Designed by Philippe Starck, 2018
Compact wall-mounted luminaire emitting indirect light. Die-cast aluminium alloy body with a hand-polished finish protected by transparent liquid paint, or powder-coated. Wall support in injected aluminium, designed for both horizontal and vertical adjustment up to 10 mm to ensure precise installation on any surface. Integrated electronic driver and high-efficiency LED lens with opal diffuser for controlled, homogeneous light distribution. Built-in spirit level for accurate alignment.
LED - Power LED - 30.7W - 2951lm - 2700K - CRI> 90 - Beam° 30
Technical Drawing
Main specifications
EAN
8424229006445
Mounting
Wall surface
Environments
Indoor dry location
Light source type
LED
Light sources included
Yes
LED type
Power LED
Lamp category
LED
Number of lamps
1
Power (W)
30.7
System power (W)
35
Source flux (lm)
3715
Lumen Output (lm)
2951
Schematic light drawing
Photometric
Lighting type
Indirect
Light distribution
Asymmetric
CCT (K)
2700
CRI>
90
LED Life / Failure Ratio
L80B50 > 50.000h (Tc=85ºC)
Beam angle C0-180 (º)
30
Beam angle C90-270 (º)
86
Extreme cut off
No
UGRL
<10
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Forward voltage (V)
34
Power supply
Integrated
Dimmable
Yes
Power supply type
Dimmable 1-10V
Physical
Colour
Polished Aluminium
Trim
No
Orientation
Fixed
Length (mm)
200
Net weight (kg)
1.4
IP internal
20
