Frisbi
F2500000 ChromeFrisbi
Designed by Achille Castiglioni, 1978
Suspension lamp providing direct, diffused and reflected light. Opaline polymethylmethacrylate (PMMA) injection-molded diffuser plate suspended by three fine steel cables. Polished, nickel-plated, and zapon-varnished stamped sheet metal reflector painted gloss-white inside. Black painted, injection-molded ABS ceiling fitting and rose.
Halogen - 105W
Technical Drawing
Main specifications
EAN
8059607016206
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGSR
Number of lamps
1
Power (W)
105
Schematic light drawing
Photometric
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
Chrome
Length (mm)
600
Cord colour
Black
Cord length (mm)
2700
Canopy colour
Black
Canopy length/diameter (mm)
101
Canopy height (mm)
111
Net weight (kg)
2.65
Package height (mm)
170
Package width (mm)
655
Package length (mm)
655
Package volume (m3)
0.07
IP internal
20
Spare Parts
01.
Frisbi Reflector
RF00862
02.

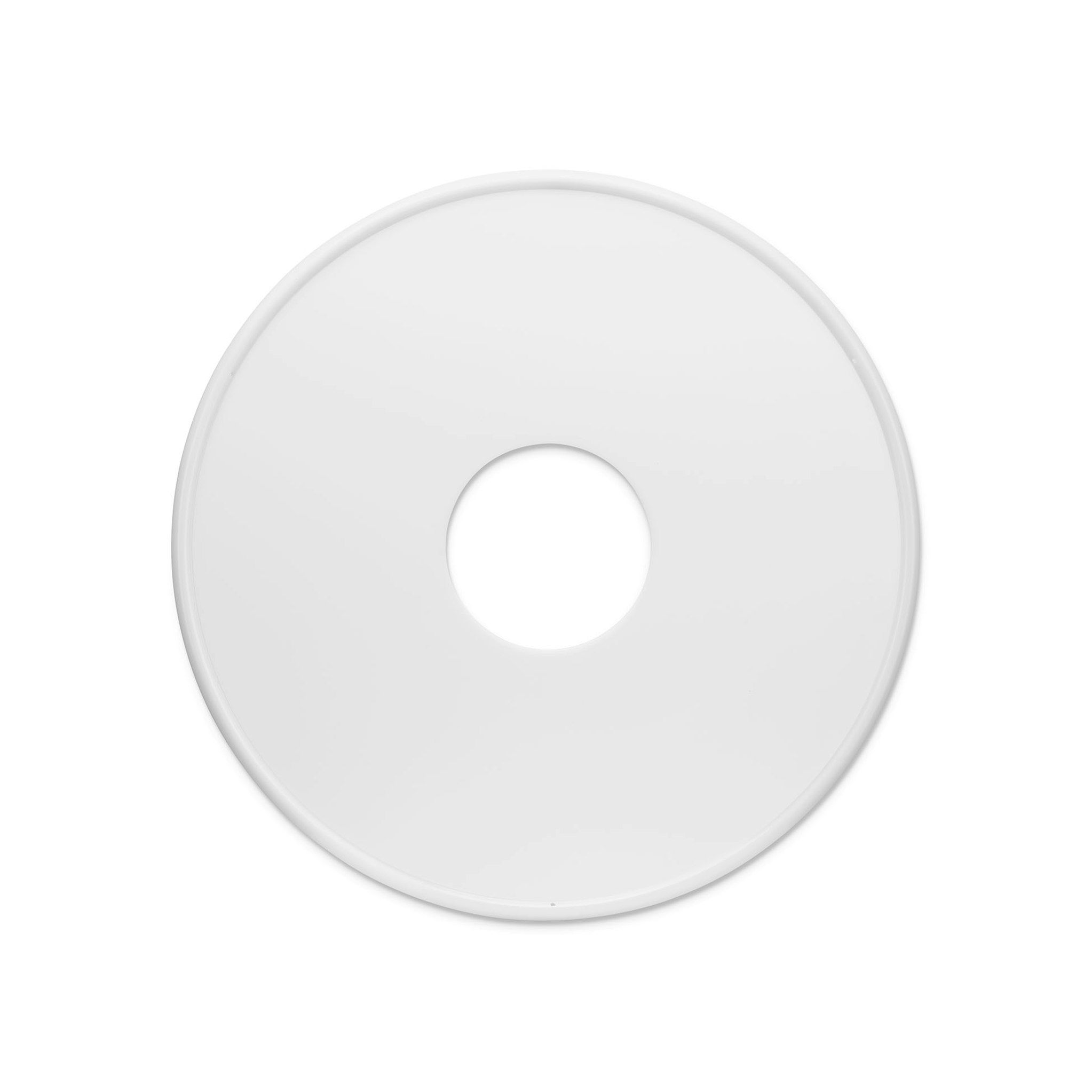

Frisbi Plexiglass diffuser
RF05806
03.
Frisbi steel wires (3 pieces)
RF06823
04.
Frisbi Complete ceiling rose assembly
RF2500100
05.
Frisbi Grid support with stem
RF01439
06.
Frisbi 2x1 2.7 mt black electrical cable
RF29648
07.
New version lamp holder
RF2500200
