Gatto
F2701009 White

Gatto Piccolo

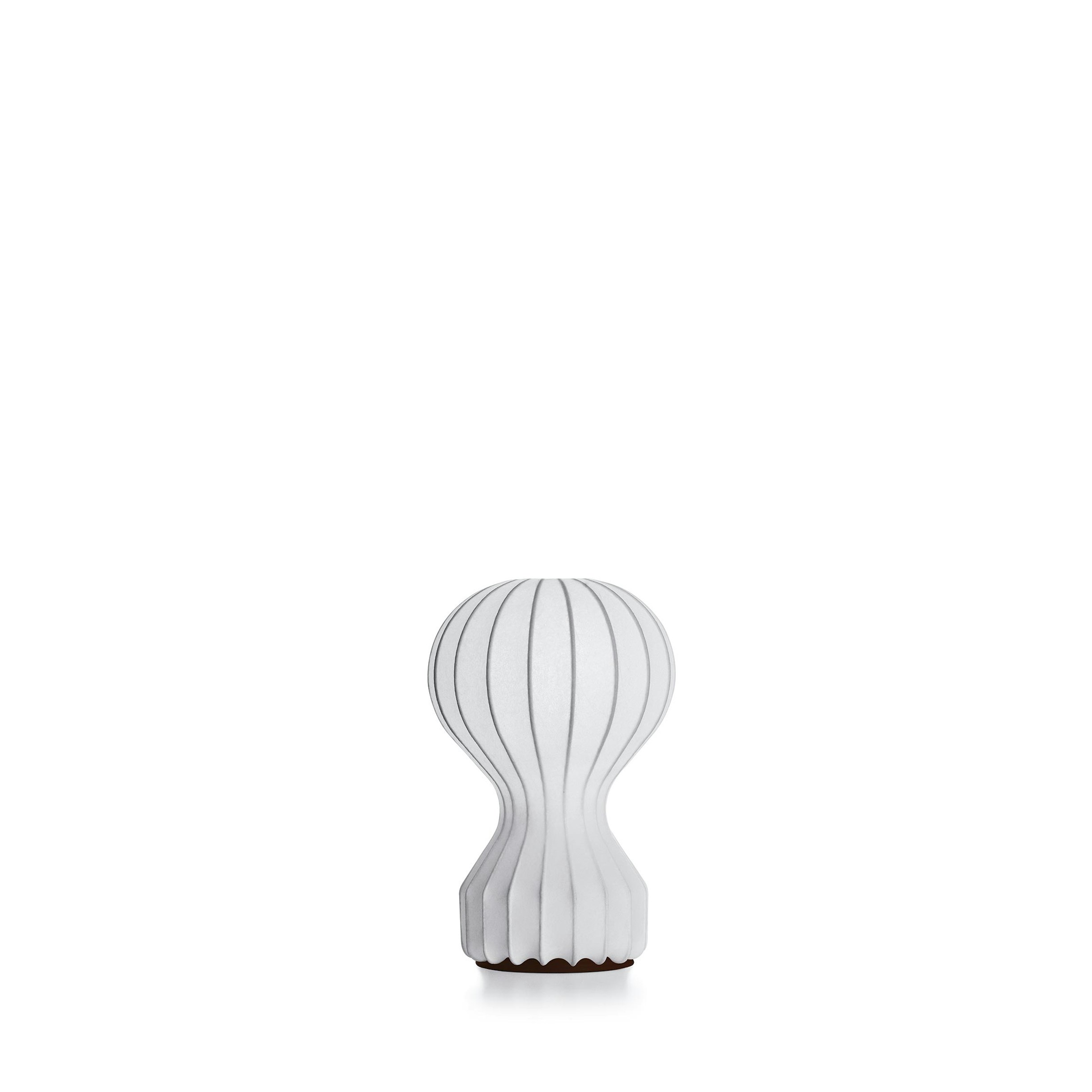

Table lamp emitting diffused light from within a white powder-coated steel structure sprayed with a unique Cocoon resin to form the diffuser and protected with a transparent spray finish. Cable features an electronic dimmer.

Gatto is a sculptural table lamp designed in 1960 by Achille and Pier Giacomo Castiglioni. It features the signature Cocoon technique, in which a steel frame is sprayed with a soft, web-like resin. The duo began experimenting with this method in the 1950s after discovering its use in industrial applications. The result is a delicate yet durable surface that diffuses a warm, ambient glow. Named after the Italian word for ‘cat’, Gatto brings a quiet, luminous presence to any space.

Halogen - 60W

Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Table-Gatto_Piccolo
Main specifications
EAN
8059607002087
Mounting
Table
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E14
Ilcos
HSGSA
Number of lamps
1
Power (W)
60
Schematic light drawing
F2701009WGATTO-PICCOLO_60W-HL
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
White
Length (mm)
190
Cord colour
White
Cord length (mm)
1800
Net weight (kg)
0.75
Package height (mm)
480
Package width (mm)
280
Package length (mm)
280
Package volume (m3)
0.04
IP internal
20
CE
EAC
CMIM
ENEC
IECEC
RETILAP
Autoprotected Lamp
20
IK00 - 0.00 Joule

Download

Tech spec pdf
Mounting instructions
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Spare Parts

F2701009-gattopiccolo-flos-boom
01. New White Dimmer Switch
RF28205
