Related to
Glo-Ball
F3021000WhiteGlo-Ball Basic 1
Designed by Jasper Morrison, 1998

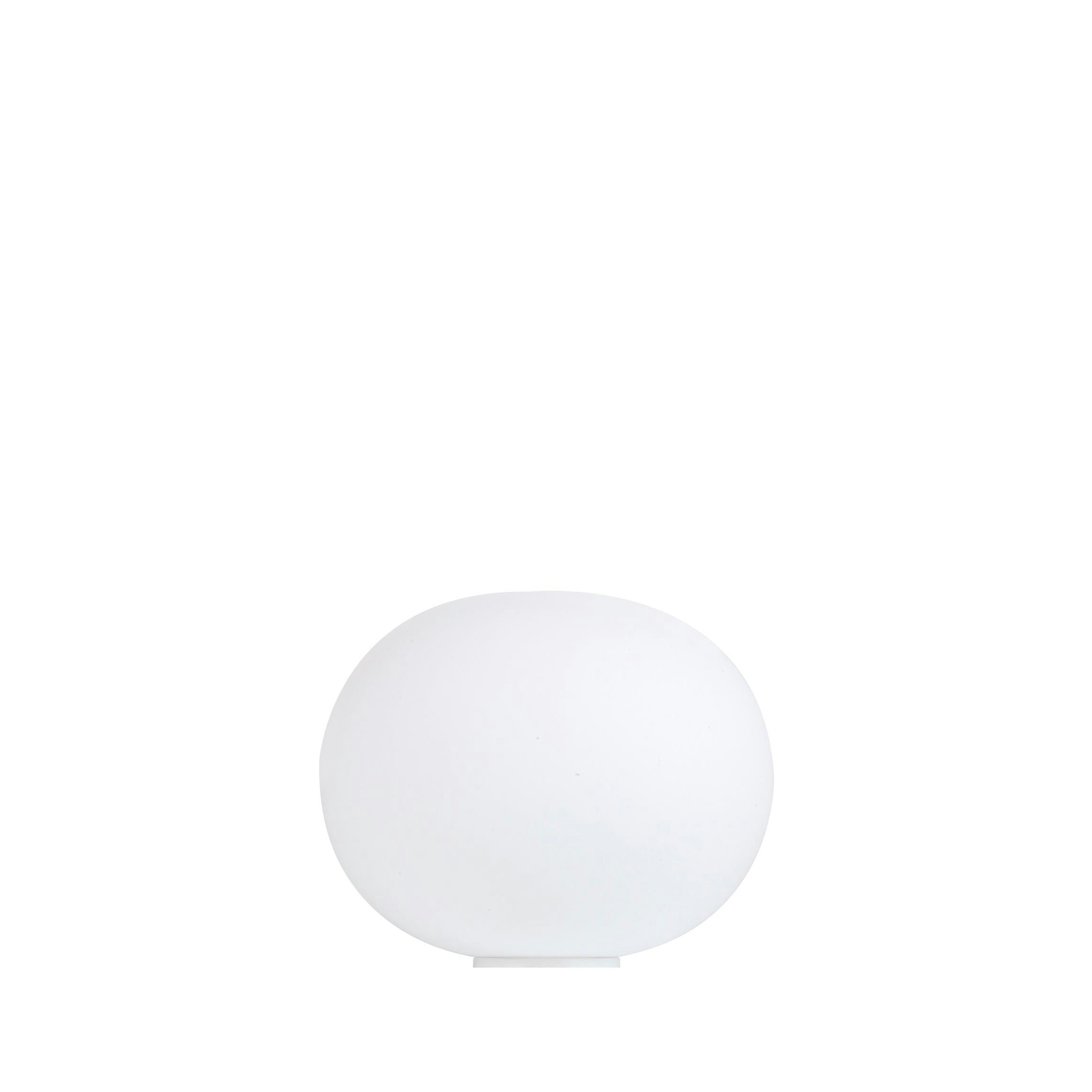

Table lamp emitting diffused light. Features a diffuser made of externally acid-etched, hand-blown, flashed opaline glass with a die-cast aluminium, alodine-plated threaded ring nut. Base in 30% fibreglass-reinforced, injection-moulded polyamide. Diffuser support in painted, die-cast aluminium. Equipped with an electronic dimmer on the power cable for 0–100% light adjustment.
Halogen - 150W
Technical Drawing
Main specifications
EAN
8059607002346
Mounting
Table
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
White
Length (mm)
330
Cord colour
Black
Cord length (mm)
1900
Net weight (kg)
2.58
Package volume (m3)
0.07
IP internal
20
Spare Parts
01. Glo-Ball opal diffuser. Grey Base
F3050061
02. New version lamp holder
RF2500200
03. Black Dimmer Switch
RF28206
