Related to
Glo-Ball
F3005061 WhiteGlo-Ball Suspension 1
Designed by Jasper Morrison, 1998
Suspension lamp providing diffused light. Diffuser consisting of an externally acid-etched, hand blown, flashed opaline glass. Gloss white painted pressed steel diffuser support. 30% fiberglass reinforced injection-molded polyamide rose; pressed and galvanized ceiling fitting. Steel suspension cable.
Halogen - 150W
Technical Drawing
Main specifications
EAN
8059607002193
Mounting
Suspension
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
Photometric
Lighting type
Total
Light distribution
Roto symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
330
Cord colour
Clear
Cord length (mm)
2700
Canopy colour
White
Canopy length/diameter (mm)
146
Canopy height (mm)
36
Net weight (kg)
2.55
Package volume (m3)
0.07
IP internal
20
Bulbs
Spare Parts
01.
White rose assembly
RA3690209
02.

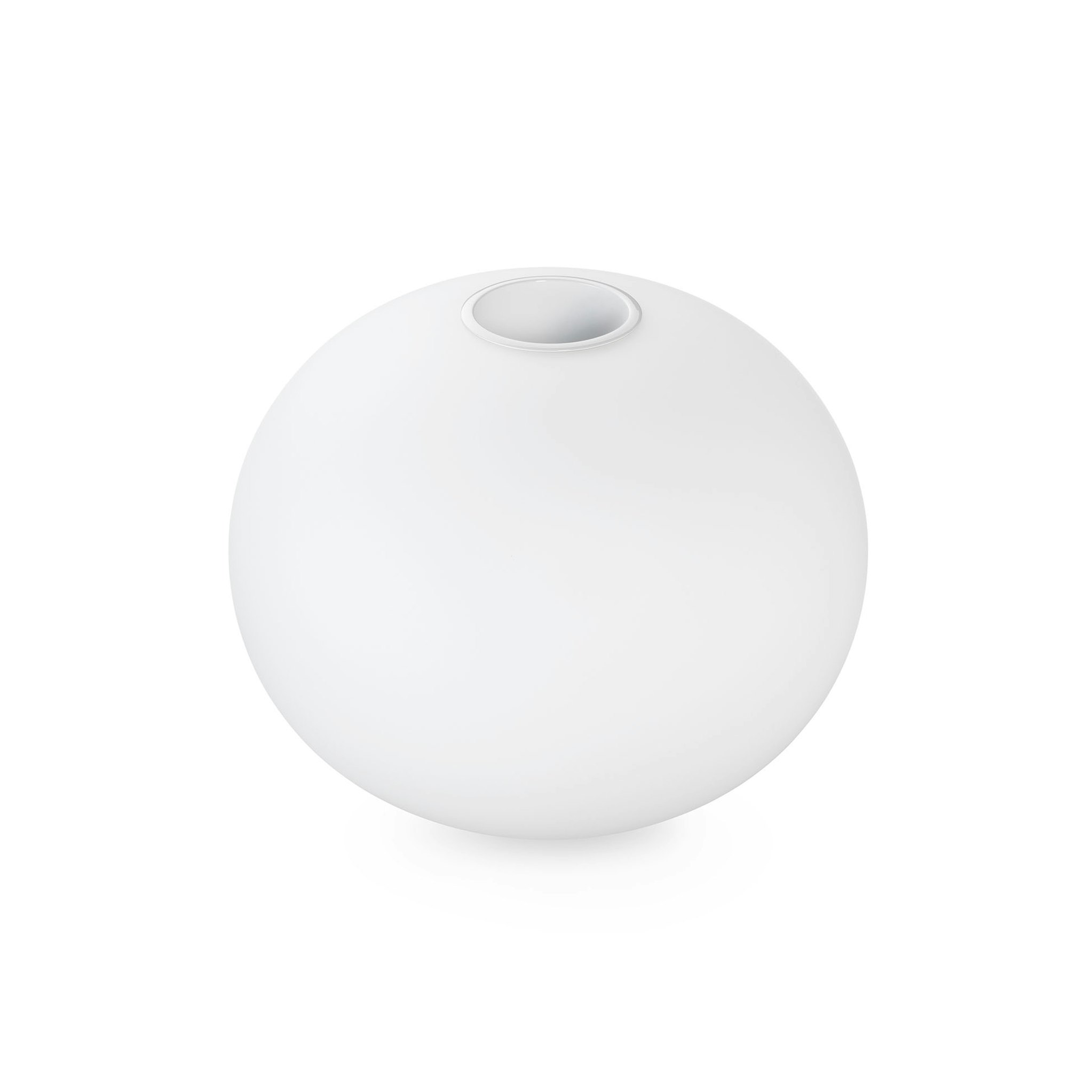

Glo-Ball Suspension1 white diffuser
F3007061
03.
Glo-ball Suspension 1 electrical wiring assembly
F3006061A
04.
New version lamp holder
RF2500200
05.
Kit of 5 or rings
RF05382
