Glo-Ball
F3020031 Matte Black

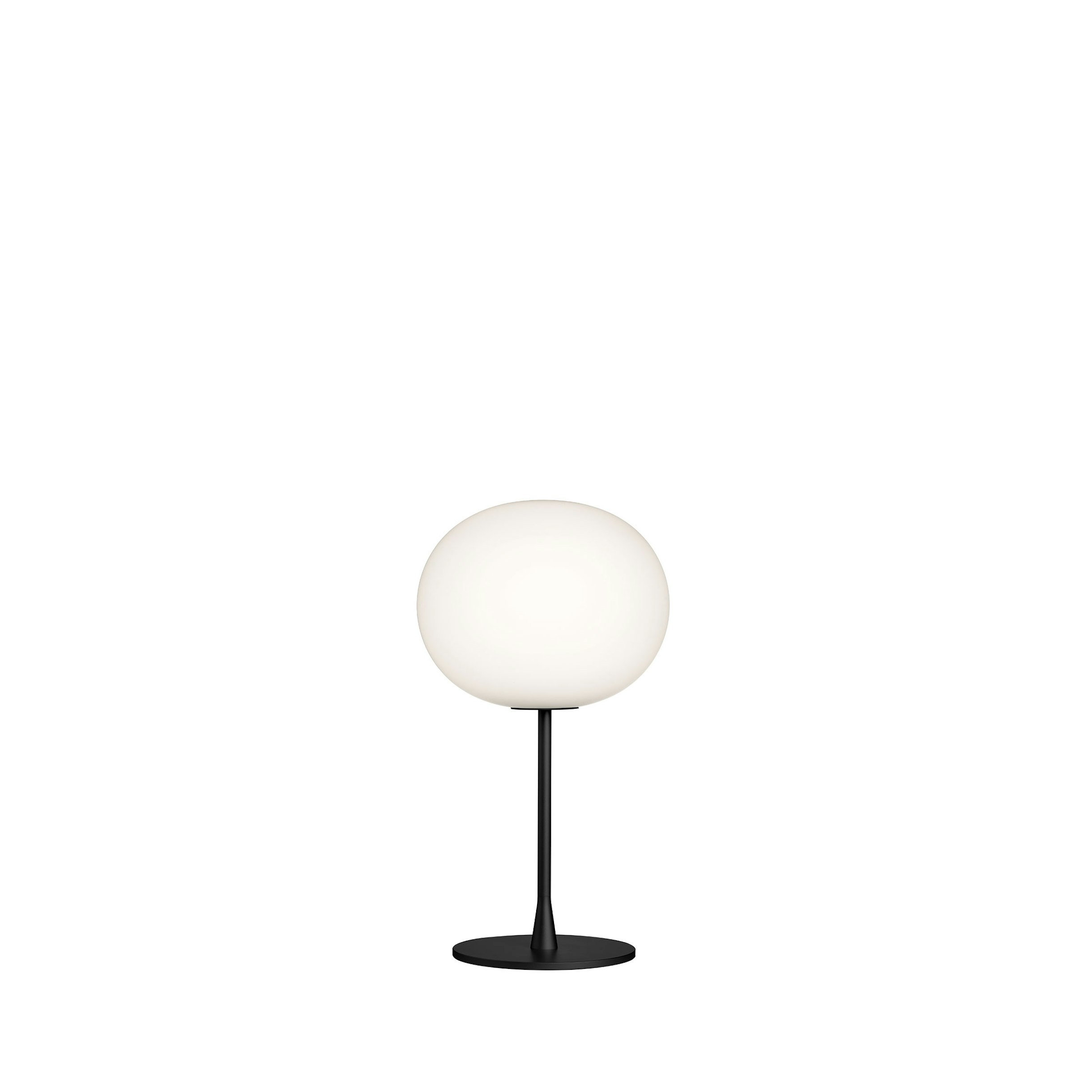

Glo-Ball Table 1

Table/desk lamp providing diffused light. Diffuser consisting of an externally acid-etched, hand blown, flashed opaline glass and a die-cast threaded ring nut with alodine plating finish. Gray or black painted high-thickness steel base and stem and die-cast aluminum diffuser support. On the cable there is the electronic dimmer which allows the regulation of light brightness.

Halogen - 150W

Also available in:
Technical Drawing
glo-ball-table-1-morrison-flos-F3020000-spech-tech-02-300x263
Main specifications
EAN
8059607002278
Mounting
Table
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
150
Schematic light drawing
F3020000WGLO-BALL-T1_13W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
II
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Dimmable
Yes
Dimming interface
Dimmer Integrated
Plug type
Type C
Batteries inside
No
Physical
Colour
Matte Black
Length (mm)
330
Cord colour
Black
Cord length (mm)
1900
Net weight (kg)
6.7
Package volume (m3)
0.13
IP internal
20

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D
Bim

Spare Parts

F3020031-glo-ball-t1-flos-boom
01. Glo-Ball opal diffuser. Black Base
F3050031
02. New version lamp holder
RF2500200
03. Black Dimmer Switch
RF28206
04. Kit of 5 white feed pads for base
RF3020100
