Glo-Ball
F3022000White

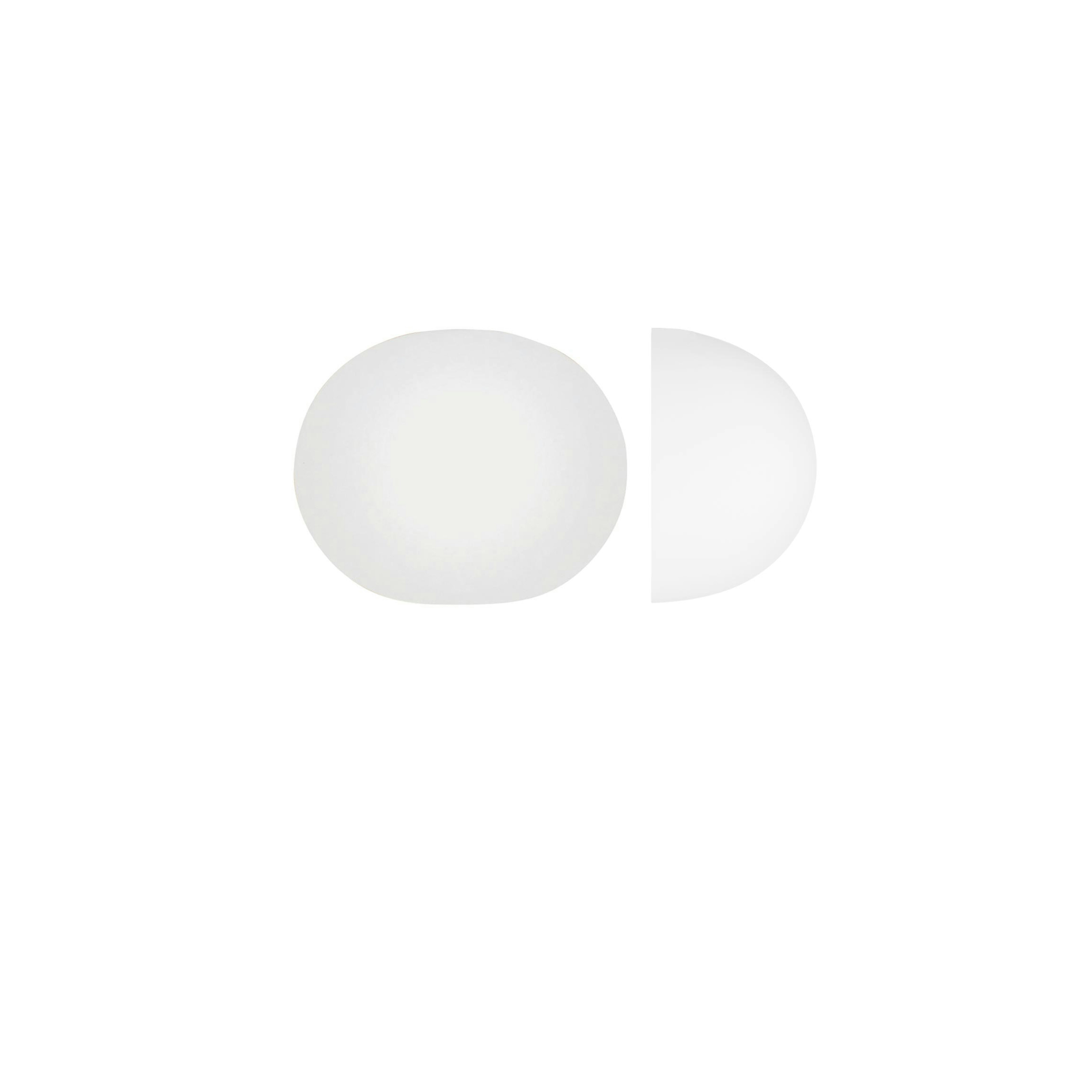

Glo-Ball Wall

Wall-mounted lamp emitting diffused light. Features a diffuser made of externally acid-etched, hand-blown, flashed opaline glass with a galvanised pressed-steel wall fitting.

Halogen - 100W

Find a Flos store
Technical Drawing
Flos-Pim-Technical_Drawing-Luminaire-Wall-Glo_Ball
Main specifications
EAN
8059607016725
Mounting
Wall
Environments
Indoor dry location
Light source type
Bulb
Light sources included
No
Lamp category
Halogen
Lamp holders
E27
Ilcos
HSGS
Number of lamps
1
Power (W)
100
Schematic light drawing
F3022000WGLO-BALL_W1_8W-LED
Photometric
Lighting type
Total
Light distribution
Symmetric
Extreme cut off
No
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-250
Dimmable
Yes
Dimming interface
Remote Dimmable (Dimmer Not Included)
Batteries inside
No
Physical
Colour
White
Length (mm)
330
Net weight (kg)
1.5
Package height (mm)
270
Package width (mm)
380
Package length (mm)
380
Package volume (m3)
0.04
IP internal
40
CE
EAC
CMIM
ENEC
UKCA
IECEC
RETILAP
Autoprotected Lamp
40

Download

Tech spec pdf
Mounting instructions

Photometric Files

LDT / IES

Technical Drawings

2D
3D

Bulbs

Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 2700K A70RF32563
Thumbnail
x1
NOT INCLUDEDLED Lamp 11.5W E27 220-240V 3000K A70RF32564

Spare Parts

F3022000-glo-ball-w-flos-boom

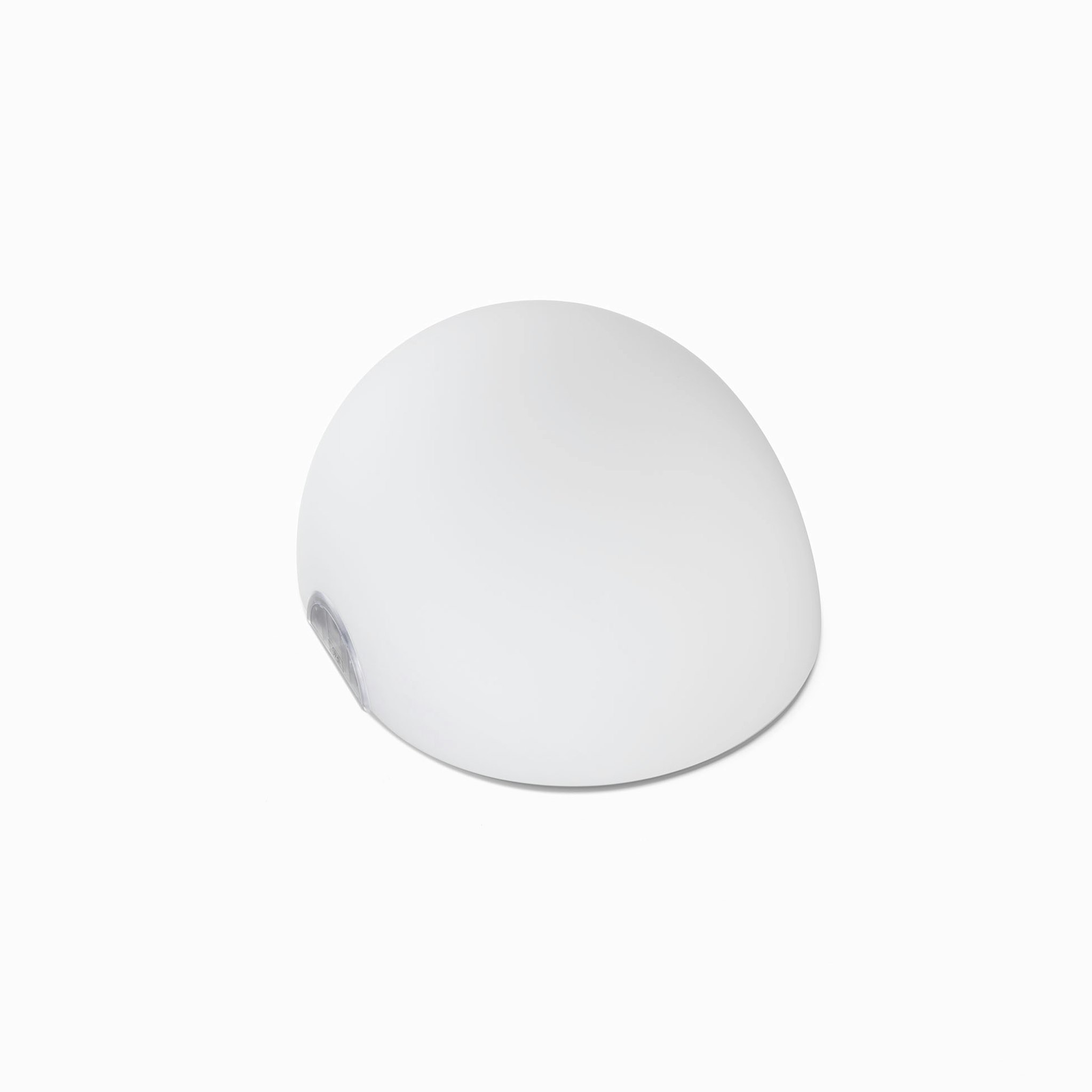

01. Glo-Ball Wall white diffuser
RF3022000
Thumbnail
x1
Glo-Ball Wall white diffuserRF3022000
