Heavy Metal

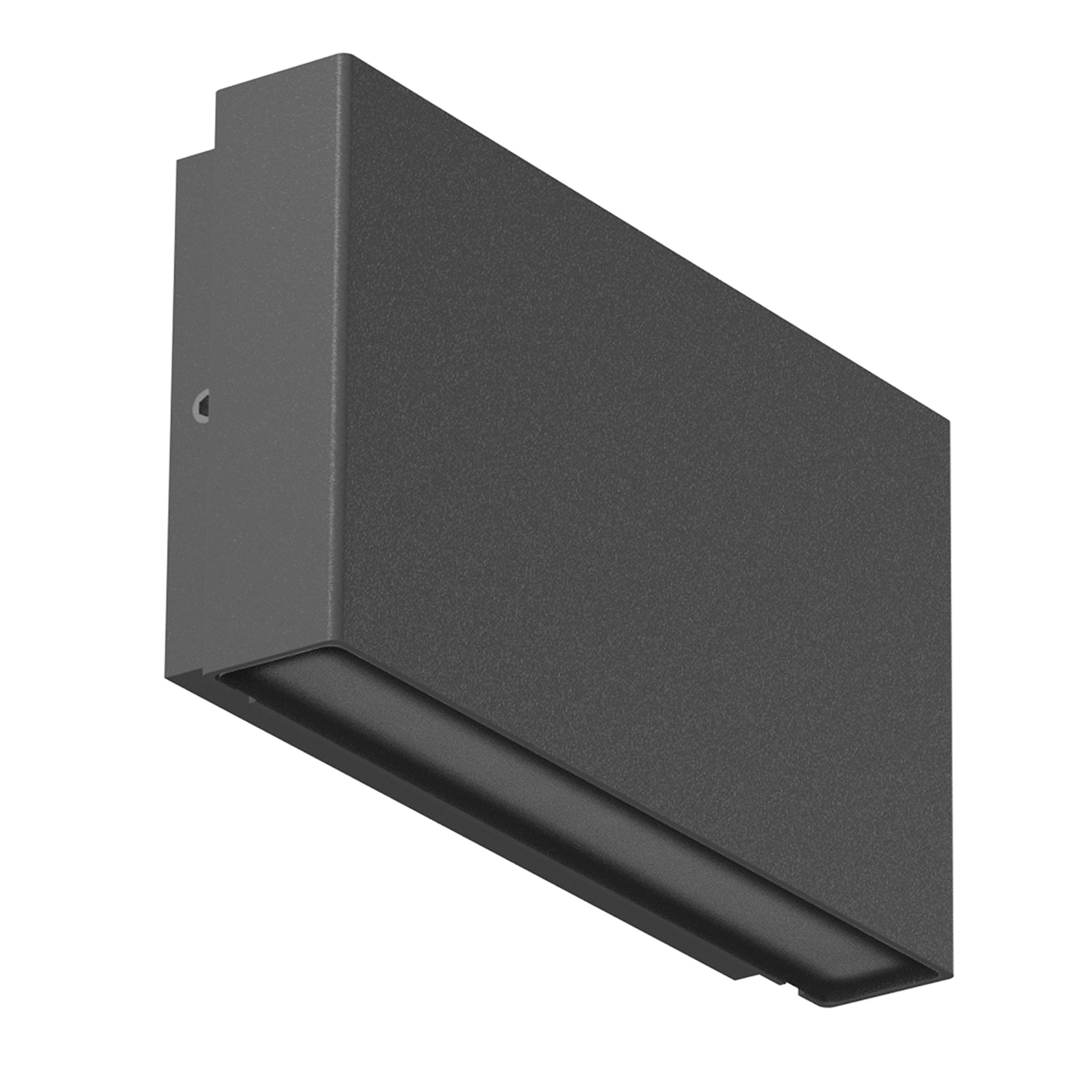

FA51200333 AnthraciteHeavy Metal Wall 3 Mono
Designed by FLOS Outdoor
LED source included. Electric remote 24V dc ON/OFF power supply to be ordered separately. Wall fixing bracket included. The luminaire is equipped with a protruding, neoprene, 250 mm cable and a wiring kit with crimp connectors and adhesive heat-shrink tubing guaranteeing the water tightness of the connection. Extra clear transparent glass.
2W - 168lm - 3000K - CRI> 80 - Beam° 80
Technical Drawing
Main specifications
EAN
8054793628837
Mounting
Wall
Environments
Outdoor wet location
LED type
Power LED
Power (W)
2
System power (W)
2.5
Source flux (lm)
265
Lumen Output (lm)
168
Schematic light drawing
Photometric
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
80
Beam angle C90-270 (º)
90
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
24
Power supply
Remote excluded
Power supply type
Dimmable
Emergency
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
0.61
Package height (mm)
134
Package width (mm)
134
Package length (mm)
83
IP internal
65
