Hyperion

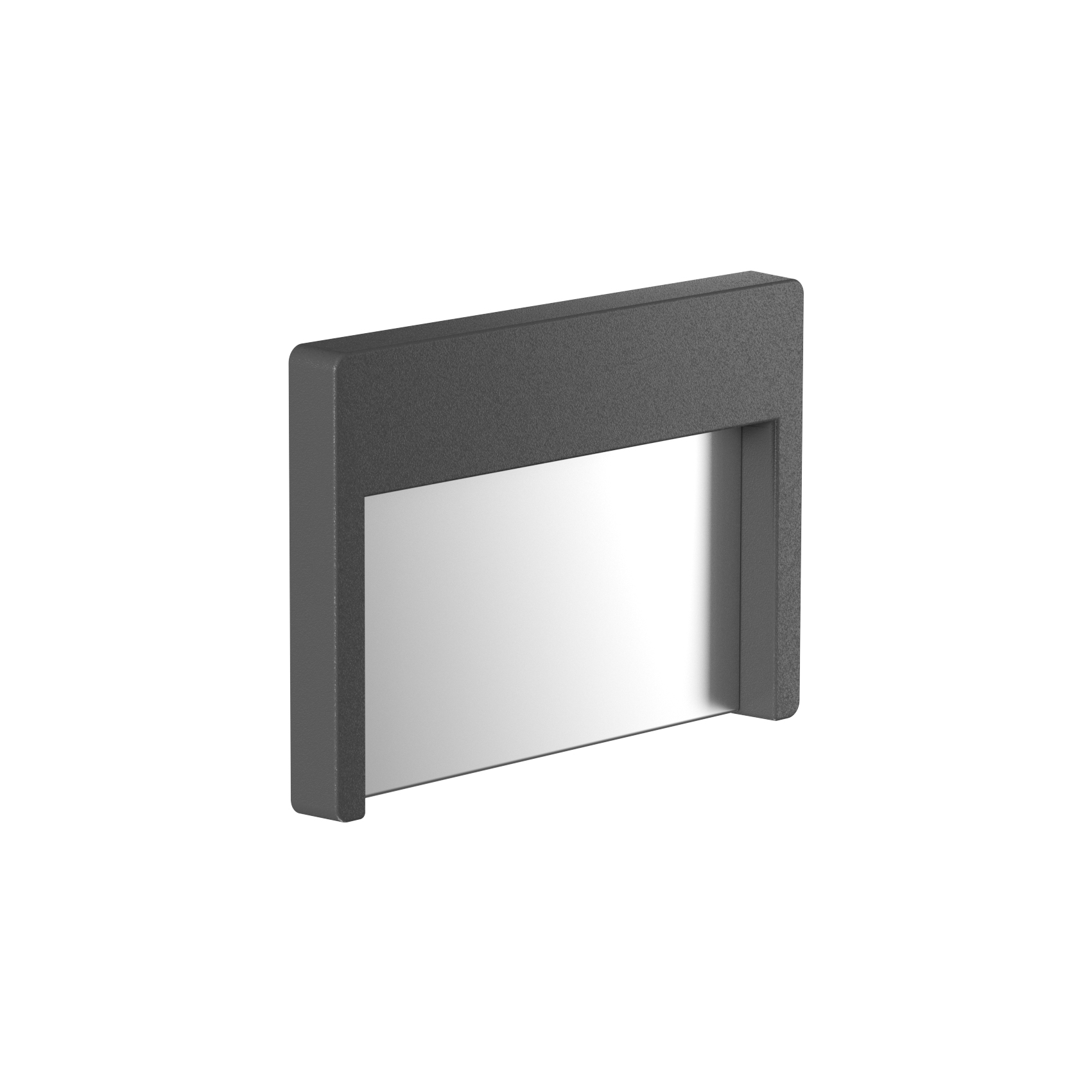

FA1022290033AnthraciteHyperion Mini
Designed by FLOS Outdoor, 2012
LED source included. Completed with a reflective screen. Remote electrical power supply 24V dc to be ordered separately. Optional junction box to be ordered separately (3 module electrical box, model 503). Equipped with a 250 mm protruding section of neoprene cable and a kit with crimpable connectors and adhesive heat-shrinkable sleeves that guarantee the tightness of the connection. Dimmable.
2W - 64lm - 4000K - CRI> 80
Technical Drawing
Main specifications
EAN
8054793606002
Mounting
Wall
Light source type
LED
Light sources included
Yes
LED type
Power LED
Number of lamps
1
Power (W)
2
System power (W)
1.9
Source flux (lm)
156
Lumen Output (lm)
64
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Asymmetric
CCT (K)
4000
CRI>
80
Extreme cut off
No
Electrical
Insulation class
III
Main voltage (Vac)
24
Power supply
Remote excluded
Dimmable
Yes
Power supply type
Non Dimmable, Dimmable 1-10V, Dimmable DALI 1
Dimming interface
Remote Dimmable (Dimmer Not Included)
Emergency
No
Physical
Colour
Anthracite
Orientation
Fixed
Net weight (kg)
0.16
Package height (mm)
134
Package width (mm)
70
Package length (mm)
83
IP internal
65
Notes
Please check with your referent person in our Front Office if a code modification is needed to meet the required certification compliance
