In Vitro

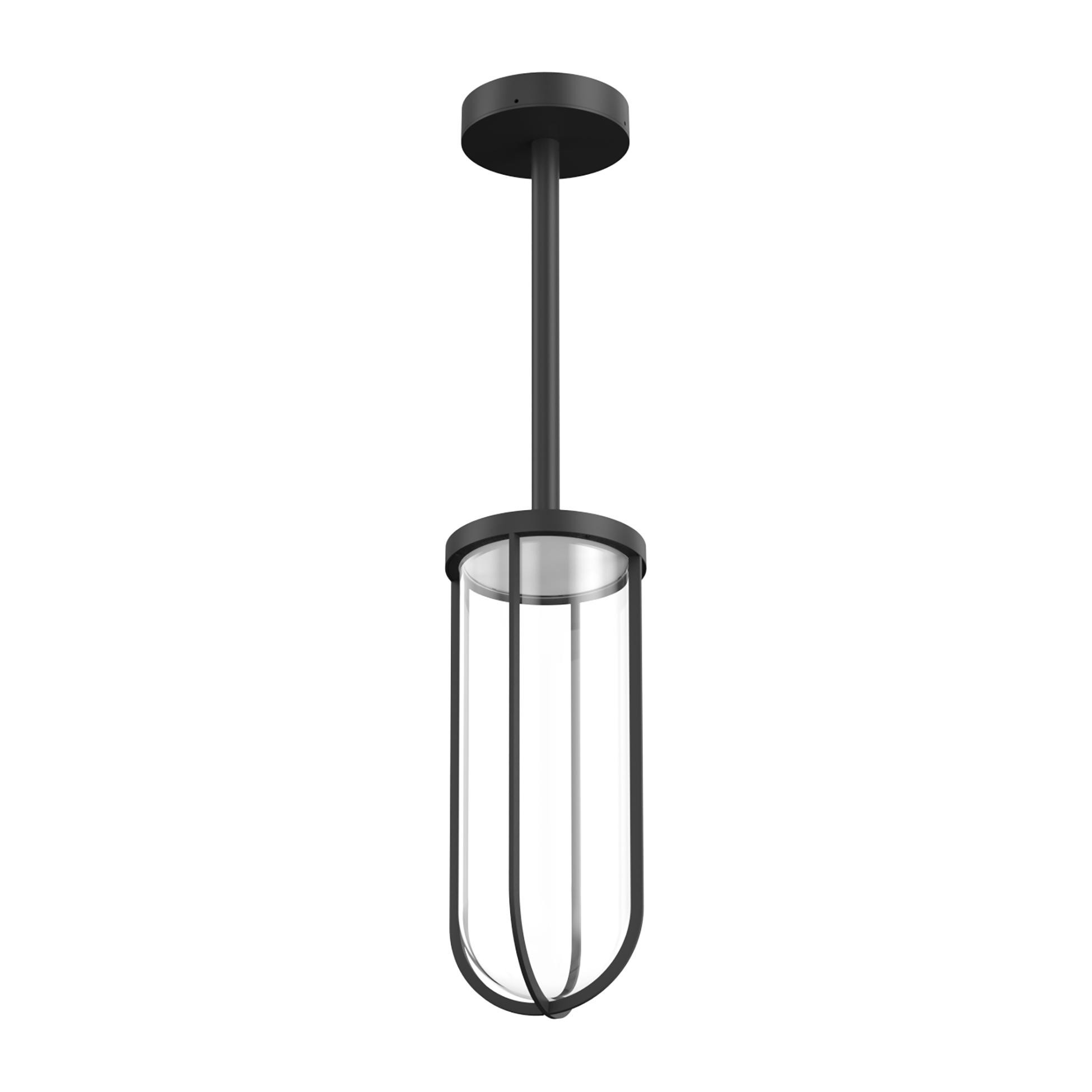

F018F32A030BlackIn Vitro Rod 2
Designed by Philippe Starck, 2020
Rod-mounted outdoor lamp emitting diffused light. Opalescent diffuser integrated in the head with external transparent borosilicate safety glass. Structure in extruded and die-cast aluminium treated with chemical conversion process and powder-coated finish. Integrated LED light source with Edge Lighting technology. Integrated 220–240V ON/OFF, 1–10 V or DALI dimmable power supply.
855lm - 3000K - CRI> 80 - Beam° 111
Technical Drawing
Main specifications
EAN
8054793319643
Mounting
Suspension
Light source type
LED
Light sources included
Yes
LED type
Edge Lighting
Number of lamps
1
System power (W)
13
Lumen Output (lm)
855
Schematic light drawing
Photometric
Lighting type
Direct
Light distribution
Symmetric
CCT (K)
3000
CRI>
80
Beam angle C0-180 (º)
111
Beam angle C90-270 (º)
111
Electrical
Insulation class
I
Frequency (Hz)
50/60
Main voltage (Vac)
220-240
Power supply
Integrated
Dimmable
No
Power supply type
Non Dimmable
Dimming interface
Not Dimmable
Physical
Colour
Black
Orientation
Fixed
Net weight (kg)
4.56
Package height (mm)
280
Package width (mm)
966
Package length (mm)
280
Package volume (m3)
0.08
